Thank you for purchasing a BNThermic product. Manufactured to a high standard, this product will, if used according to
these instructions and properly maintained, give you years of trouble free performance. Please ensure instructions
remain with your customer for their reference.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE
IMPORTANT: PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS, AND CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE
FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY
AND WILL INVALIDATE THE WARRANTY.
SECTION 1 – USER INSTRUCTIONS
For installation instructions go to page 5
1. INTRODUCTION & SPECIFICATION

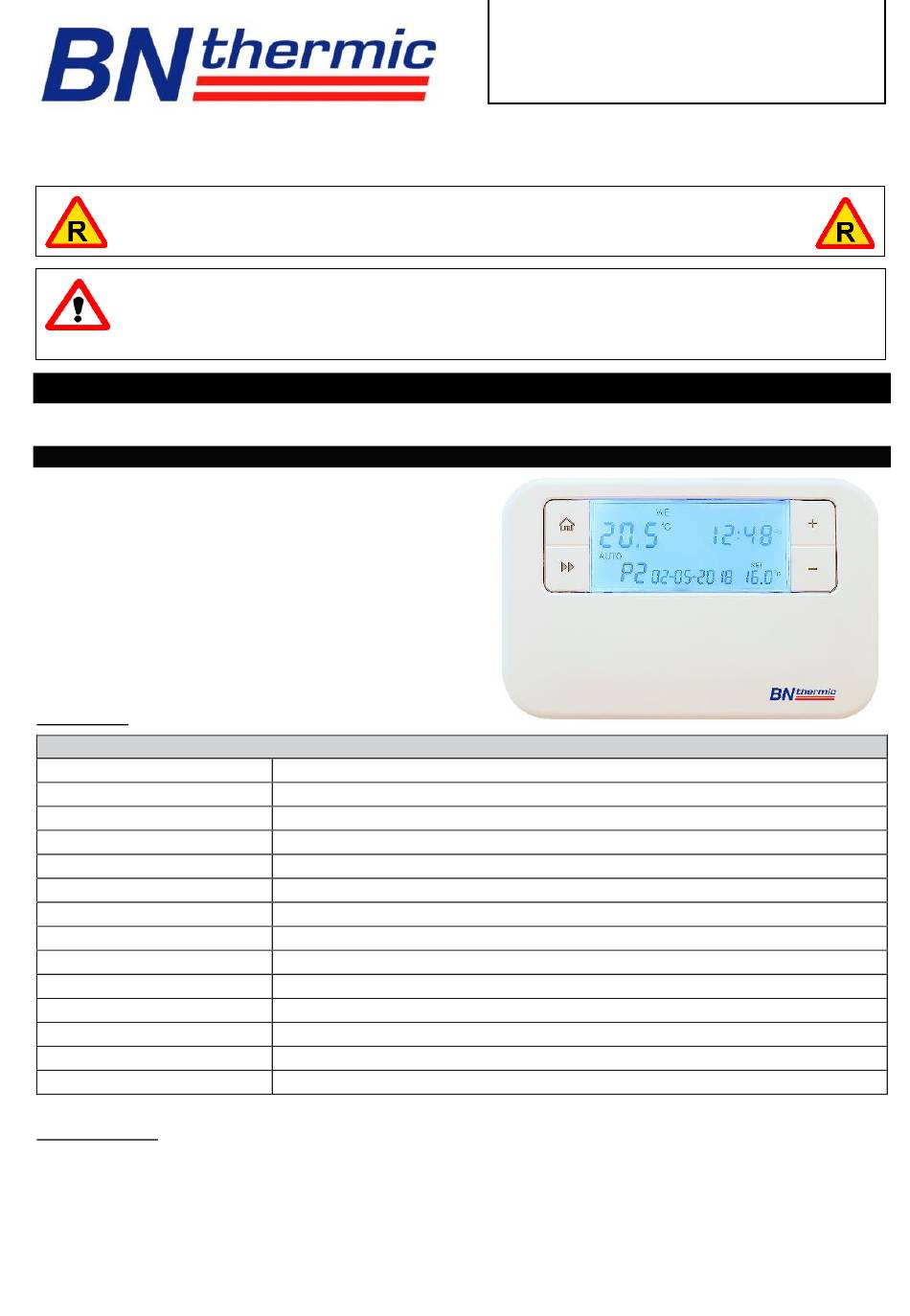

The PROSTAT2 Thermostat is an easy to install and use 7
Day, 5/2 Day or 24 Hour Programmable Room Thermostat
which offers four or six time and temperature changes each
day, with different programmes available for weekdays and
for weekends. It is designed to provide automatic time and
temperature control of heating systems. A large backlit LCD
screen and easy-to-use function buttons ensures simplified
programming and operation for all users.
The Thermostat includes special features designed to save
you energy. These features are factory set to be OFF to
enable the user to choose whichever features are preferred.
Specification
Programming
Power Supply
Temperature Sensor Type
Temperature Adjustment Range 5°C to 35°C
Total Switch Rating
Contact Type
Plastic
Number of Programs
Number of Events per Day
Factory Pre-Set Programme
BST/GMT Time Change
Dimensions
Protection Rating
Complies with:
Special Features
1) Delayed Start
Thermostats with the Delayed Start function have been shown to reduce heating costs by as much as 10%. This
feature delays the start-up of the heating, depending on how warm the room temperature is at the time when the
heating is due to come on.
The heating start can be delayed for up to 45 minutes if the room is already relatively warm, when the weather is milder
for example. This often reduces how long the heating is on per day, with no comfort loss, saving you energy and
money! The Delayed Start feature can be fully automated and needs no extra programming.
YOUR GUARANTEE AT www.bnthermic.co.uk
PROSTAT2 - Programmable Room Thermostat
7 Day, 5/2 Day & 24Hr
2 x 1.5V Lithium Batteries (type: AA size) Supplied
+/- 1°C at 20°C
6(2)A 230VAC
SPDT (Volt Free changeover contacts)
Thermoplastic, flame retardant
4 or 6 (Default: 4)
4 - 6
Yes
Automatic
127mm(L) x 81mm(W) x 28mm(D)
IP30
EN60730-1 EN 60730-2.7, EMC Directive 2014/30/EU, LVD Directive 2014/35/EU
INSTRUCTIONS FOR:-
PROGRAMMABLE ROOM THERMOSTAT
Model:- PROSTAT2
Advertisement
Table of Contents
Related Manuals for BN Thermic PROSTAT2
Summary of Contents for BN Thermic PROSTAT2
- Page 1 For installation instructions go to page 5 1. INTRODUCTION & SPECIFICATION The PROSTAT2 Thermostat is an easy to install and use 7 Day, 5/2 Day or 24 Hour Programmable Room Thermostat which offers four or six time and temperature changes each day, with different programmes available for weekdays and for weekends.
- Page 2 2) Optimum Start The Optimum Start function adjusts the starting time for the heating according to the temperature measured within the room / building. Instead of setting an arbitrary time for the heating to come on, you programme the time that the room / building should be at the desired temperature.
- Page 3 3. FACTORY PRE-SET PROGRAMMES This Programmable Room Thermostat has been designed to be a simple to use thermostat, requiring minimal user intervention with a pre-programmed heating profile. The pre- set heating times and temperatures will suit most people (see table below). To accept the factory pre-set programme, move the slider to AUTO which will revert the thermostat to Run Mode (the colon (:) in the LCD display will begin to flash).
- Page 4 4. SETTING THE OPERATION MODE (5/2 DAY, 7 DAY OR 24 HOUR). 1. Switch the slider to PROG. 2. Press +/– buttons to move between 7 day, 5/2 day or 24hr operation. 5/2 Day operation is shown by MO, TU, WE, TH, FR flashing (5 Day) and then SA, SU flashing (2 Day). 7 Day operation is shown by just one day flashing at a time.
- Page 5 11. SETTING THE TIME AND DATE. The time and date are factory set so it will not normally be necessary to do this on site. Changes between summer and winter time are handled automatically by the unit. 1. Switch the slider to Time / Date. The hour symbols will flash, use + or – to adjust. button and the minute symbols will flash, use + or –...
- Page 6 16. INSTALLATION. Wiring diagram Cool Common Heat Fitting the Programmable Room Thermostat The ideal position to locate the Programmable Room Thermostat is about 1.5m above floor level, in a location where the thermostat is accessible, reasonably lit and free from extremes of temperature and draughts.
- Page 7 If using with a gas or oil boiler now press the Next button to enter the TPI settings. Press +/– to choose between:- OFF: Working under normal swing value 3 Cycles: ON/OFF one cycle is 20 minutes. This is recommended for oil boilers 6 Cycles: ON/OFF one cycle is 10 minutes.
- Page 8 21. SETTING THE LOCKOUT FEATURES. The PROSTAT2 comes with a lockout feature which enables the installer to disable certain functions of the thermostat to a complete lockdown depending on the mode selected. This can be useful if using the Thermostat in a public area to stop certain buttons / modes from operating.
