BN Thermic T16C Series Instructions Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Thank you for purchasing a BN Thermic product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
PLEASE READ ALLTHESE INSTRUCTIONS, NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS,
AND CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR:-

PROGRAMMABLE THERMOSTAT

T16C Series
See next page for wiring diagrams

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T16C Series and is the answer not in the manual?

Questions and answers

Related Manuals for BN Thermic T16C Series

Summary of Contents for BN Thermic T16C Series

  • Page 1: Programmable Thermostat

    PROGRAMMABLE THERMOSTAT T16C Series Thank you for purchasing a BN Thermic product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. PLEASE READ ALLTHESE INSTRUCTIONS, NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND CAUTIONS.

  • Page 2: Mounting Instruction

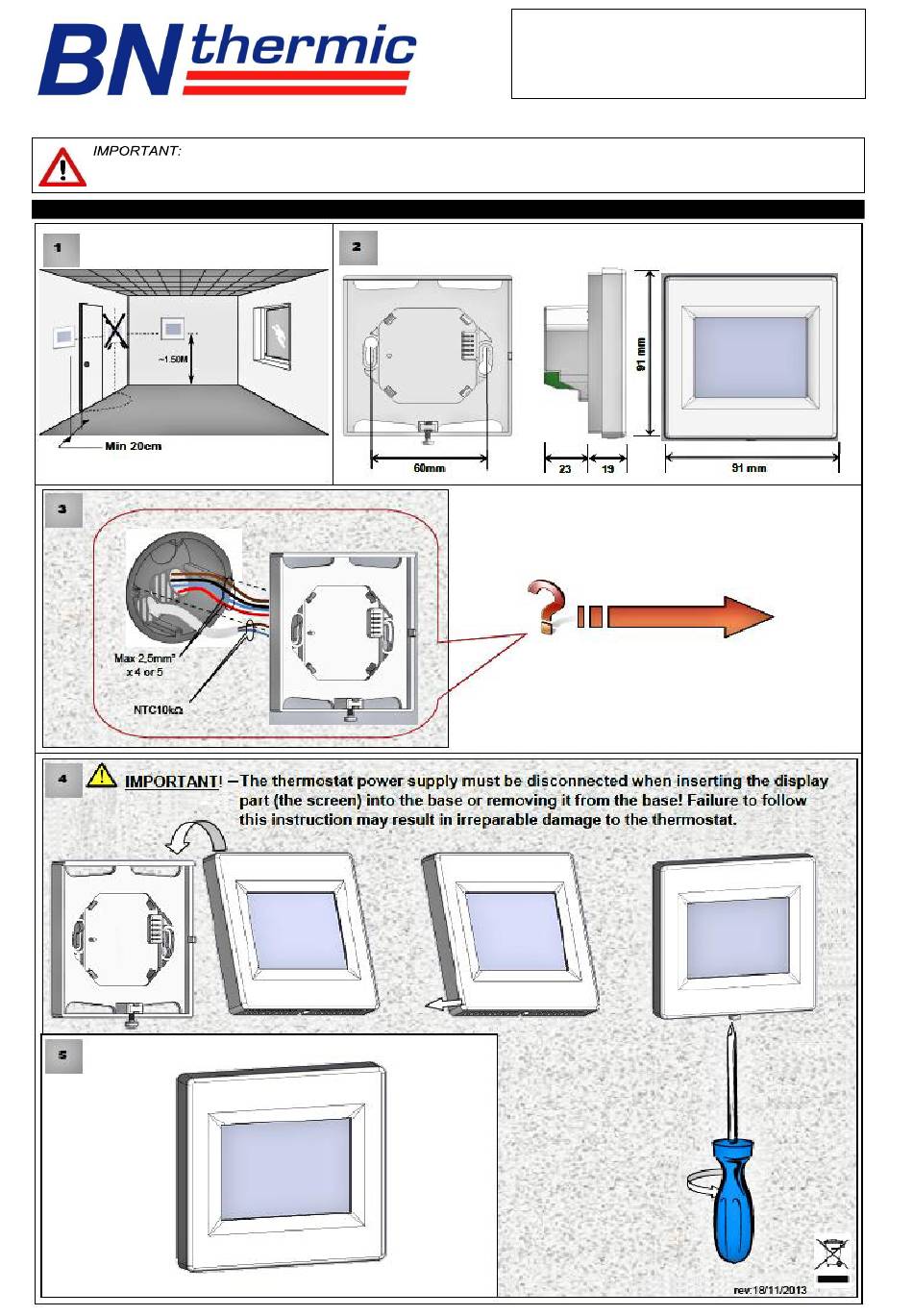

    Please Note:- You can drive directly up to 3,600W (16A) with this thermostat (see fig 1), If the total load is above 3,600W (16A) you must install an external relay or contactor to take the load (see fig 2). Mounting instruction: All electrical conduits to the thermostat box that contain heating cable or floor sensors must be sealed to protect the thermostat against hot air currents coming up the conduit and into the thermostat.
  • Page 3 Menu structure IMPORTANT! Mode The thermostat power supply must be disconnected when inserting the Manuel display part (the screen) into the base or removing it from the base! Timer Failure to follow this instruction may result in an irreparable damage to the thermostat.

  • Page 4: Installation Menu

    Mode of operation Installation menu This section will guide you through setting up your thermostat for the first time. 3.1. Language Main screen How to change the current mode? key on the main screen and then press on the “Mode” button to Press on the access to the operating modes.

  • Page 5: Special Function

    Special Function Keyboards lock Function Use this function to prevent all change of your settings (In a child room, public area…) To activate the Key lock function, first press on Settings -> Display -> Screen Lock The “ ” logo will be displayed on the screen. Then, you can define another program for Tuesday by pressing the ‘EDIT”...
  • Page 6 6. Parameter’s precision 7. Technical characteristics Default value & other possibilities N° Measured temperature precision 0.1°C DST: Daylight Summer time change Summer<->Winter Environmental: Date and Time YES automatic change according to date. Operating temperature: 0°C to 40°C Menu NO no daylight summer time automatic change. Shipping and storage temperature: -10°C to +50°C Probe Calibration...
  • Page 7 IMPORTANT: No liability is accepted for incorrect use of this product. Tel: +44 (0) 1293 547361 WARRANTY: Your BN Thermic product is guaranteed for one year from date of purchase. We will repair Email: sales@bnthermic.co.uk or replace at our discretion any part found to be defective. We cannot assume any consequential liability.
