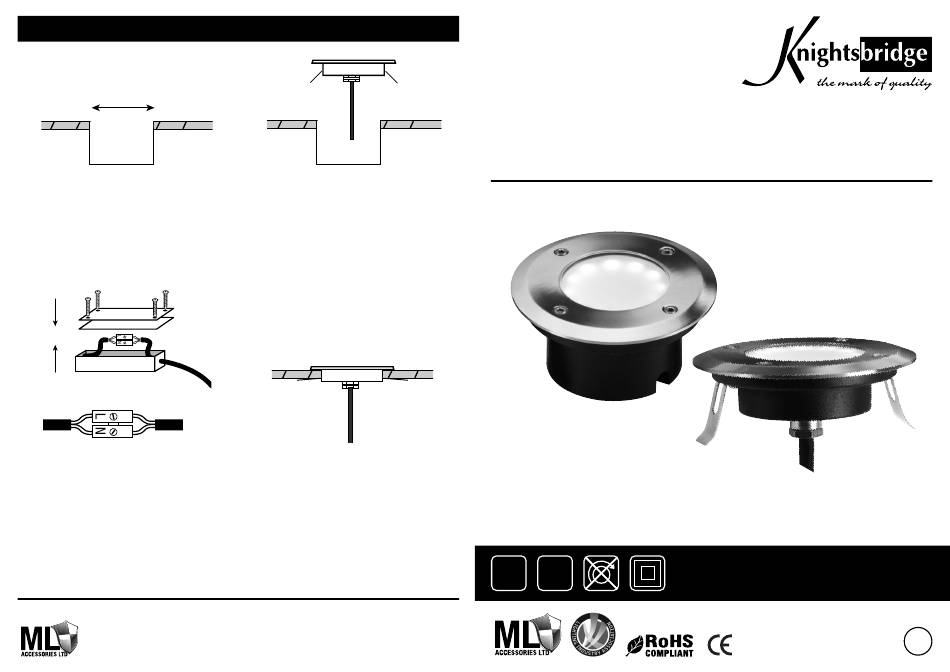

DECKING INSTALLATION
A
ø90mm
A. Cut a hole 90 mm diameter in the decking
or board ensuring it does not infringe with
any gas/water pipes or electrical cables that
may be hidden below the surface.
C
C.Connect the pre-installed flexible cable to
a suitable joint box ensuring correct polarity
is observed.
BROWN- LIVE. BLUE-NEUTRAL.
The joint box must be IP65 or above rated if
used externally or underground
PLEASE NOTE: IF CABLE IS BURIED UNDERGROUND IT IS ADVISED THAT A
SUITABLE NON -CORROSIVE CONDUIT IS USED.
ML Accessories Limited
LU5 5TA
www.mlaccessories.co.uk
B
B. With the 4 x machine screws (supplied) fix
the 2 x spring clips (supplied) to the body.
Ensure the clips are pointing out
D
D. Finally, push the fitting into the decking or
board
Check for correct operation.
07/2013_V2
INSTALLATION & MAINTENANCE MANUAL
LEDM08B - LEDM08W
IP65 LED RECESSED LUMINAIRE
IP
230V
65
dim
50Hz
02
