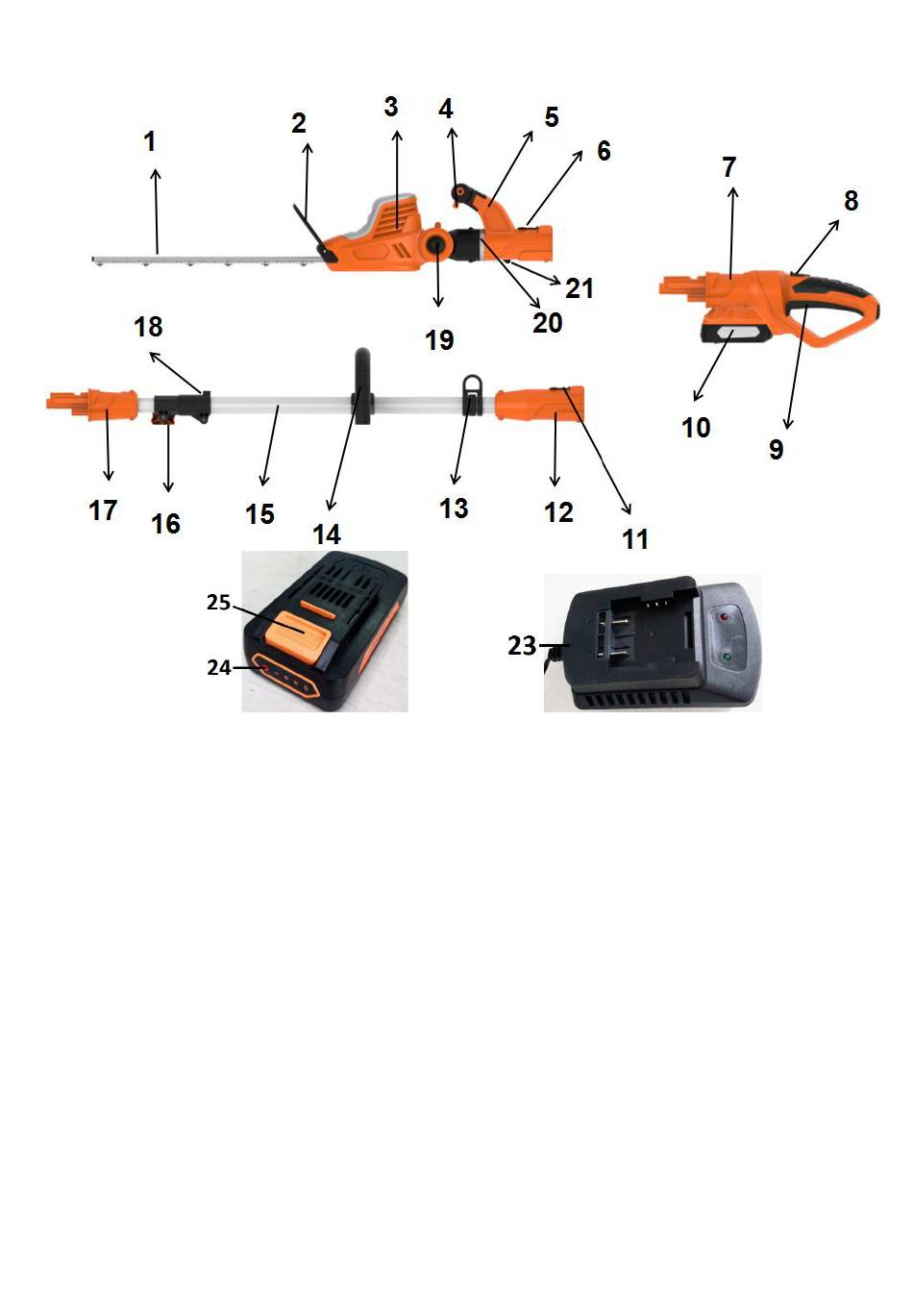

Know Your Product

1. Blade
2. Guard
3. Motor
4. Security Button
5. Front Handle
6. Lock Buckle 1
7. Rear Handle
8. Lock Switch
9. Trigger Switch
10. Battery Pack
11. Lock Buckle 2
12. Rear Hexagonal Alu. Pipe
Joint
13. Belt Buckle
14. Auxiliary Handle
15. Telescopic Tube
16. Rotary Knob
17. Front Hexagonal Alu. Pipe
Joint
18. Allen Key Set
19. Unlock Button Head
Turn
20. Angle Ring
21. Unlock Button Head
Rotation
22. Blade Sheath
23. Battery Charger Station
24. Battery Level Display
Button
25. Battery Release Button
