AAVIX A11704 Owner's Manual

20v 20 inch pole/handhold hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

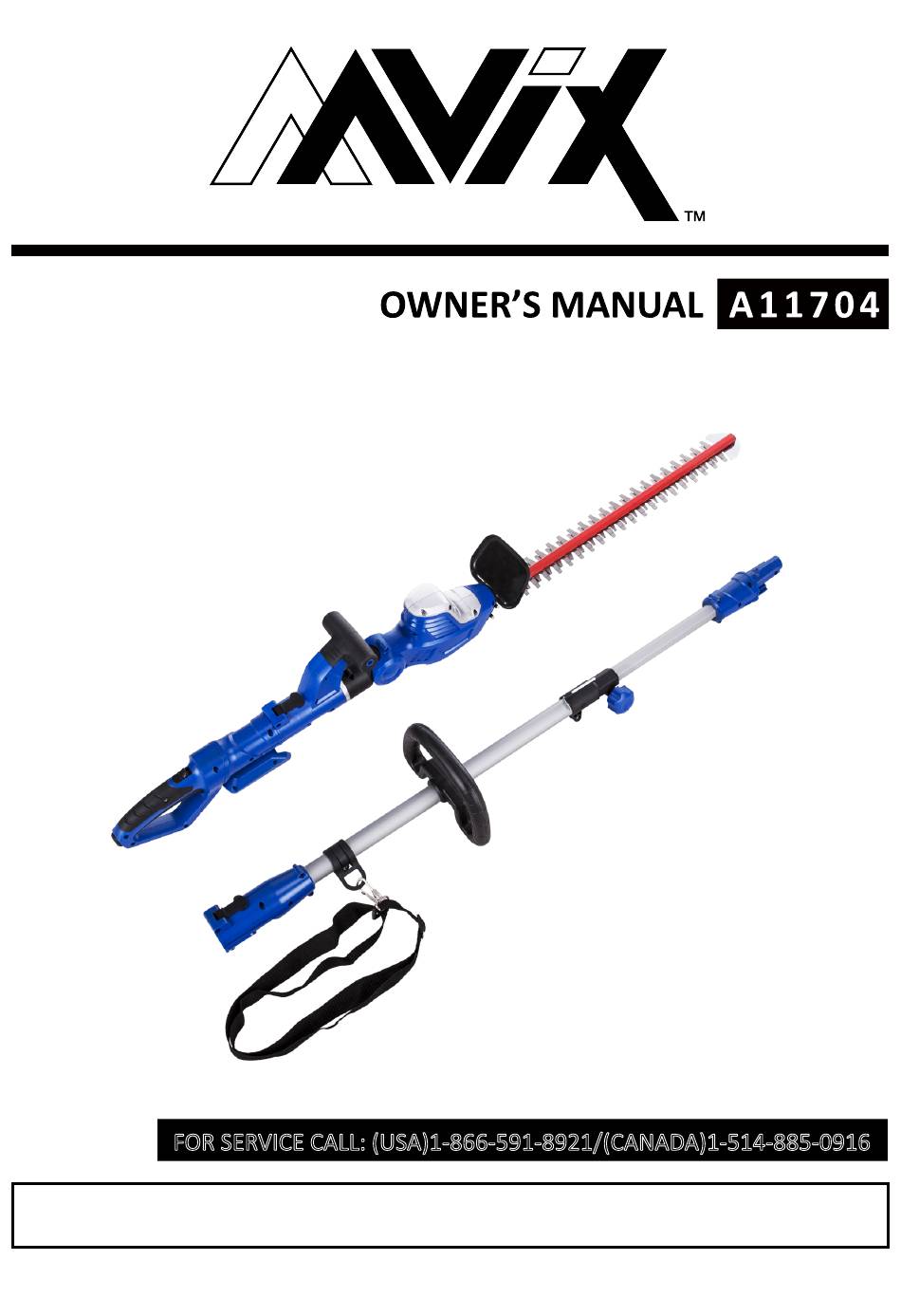

A A V I X
O U T D O O R S
20V 20 INCH POLE/HANDHOLD HEDGE TRIMMER
FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916
WARNING : To reduce the risk of injury, user must read this manual before assembling, operating
and maintaining this unit. You are responsible for operating the product properly & safely.
Version: V1.20171106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A11704 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AAVIX A11704

Summary of Contents for AAVIX A11704

  • Page 1 A A V I X O U T D O O R S 20V 20 INCH POLE/HANDHOLD HEDGE TRIMMER FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916 WARNING : To reduce the risk of injury, user must read this manual before assembling, operating and maintaining this unit. You are responsible for operating the product properly & safely. Version: V1.20171106...

  • Page 2: Table Of Contents

    WARNING READ ALL INSTRUCTIONS BEFORE OPERATING! Follow all instructions. Save all warnings and instructions for future reference. These instructions below are for your safety. Please read them thoroughly before using. Familiarize yourself with them to reduce hazards like personal injuries and damage to property. TABLE OF CONTENTS Safety Rules.………………….…………………………………………..………………………………..2 Symbols.………………….………………………………………………………..…………………………8...
  • Page 3 Personal Safety The correct power tool will do the job better and safer at the rate for which it 1. Stay alert, watch what you are doing was designed. and use common sense when 2. Do not use the power tool if the operating a power tool.
  • Page 4 Battery tool use and care with any other charger than the one supplied. 1. Ensure the switch is in the off 2. Never attempt to open the battery position before inserting battery pack. pack for any reason. If the plastic Inserting the battery pack into power housing of the battery pack breaks tools that have the switch on invites...
  • Page 5 step on the battery or otherwise children without supervision. subject it to strong impacts or shocks. 2. Disconnect the charger from the 14. Protect the battery pack against heat. power supply and allow it to cool down Do not place the battery in direct before cleaning, maintenance, storage sunlight or use or store the battery and transportation.
  • Page 6 charger from power source socket hands when operating the hedge outlet and take away the battery pack trimmer. Using one hand could cause from the charger, do not leave the loss of control and result in serious battery pack in the charger. personal injury.
  • Page 7 20. Never attempt to force the blades to problems with the nerve endings. come to a standstill. The exposure to the vibrations is the 21. Do not put the tool down until the cause of the white finger syndrome, blade have come to a complete To minimise this effect as much as standstill.

  • Page 8: Symbols

    WARNING! This product lubricated (where appropriate). - Plan your work schedule to spread any produces an electromagnetic high vibration tool use across a longer field during operation! This field may period of time.Take frequent breaks. under some circumstances interfere - If you detect any of the symptoms of with active or passive medical the white finger syndrome, consult implants! To reduce the risk of...
  • Page 9 Wear ear protection Take batteries to an old WARNING: Loud noise battery collection point can cause severe hearing where they will be recycled loss. Wear ear protection in an environmentally when operating this unit. friendly manner Wear eye goggles. Thrown objects can cause The charge is for indoor only severe eye injury.Wear eye protection meeting current...

  • Page 10: Specifications

    SPECIFICATIONS Model# A11704 Motor Voltage Blade Length 20inch(508mm) Max. Cutting Diameter 3/4inch(19mm) Weight 10.3lbs(4.7kg) Protection Class / II Battery(Li-lon) Model# A112601 Max. Voltage＊ Capacity 2.0Ah Charge Time Approx. 1hr Charger Model# A112701 Voltage Input 120VAC, 60Hz Voltage Output 20VDC, 2.3A...

  • Page 11: Know Your Product

    Know Your Product 1. Blade 14. Auxiliary Handle 2. Guard 15. Telescopic Tube 3. Motor 16. Rotary Knob 17. Front Hexagonal Alu. Pipe 4. Security Button Joint 5. Front Handle 18. Allen Key Set 19. Unlock Button Head 6. Lock Buckle 1 Turn 7.

  • Page 12: Assembly

    The diagrams and pictograms herewith enclosed in this manual are a guide but not necessarily an exact copy of the actual product. INTENED USE WARNING: If any parts are 1. Your hedge trimmer has been designed for trimming hedges, damaged or missing, do not operate shrubs and brambles.
  • Page 13 WARNING: Before assembly, remove the battery pack from the product. Your hedge trimmer is equipped with a The Pole Hedge Trimmer: battery pack, which powers the unit. 1. Unlock the lock buckle1 of the front The Guard handle. Place guard as shown this Figure, Insert 2.

  • Page 14: Starting And Stopping

    2. Move slide buckle to adjust the and place battery pack (10) in your length of the shoulder strap. Adjust hedge trimmer. Align raised rib on the length of the shoulder strap to battery pack with groove inside hedge obtain a comfortable working position. trimmer.
  • Page 15 Starting chipped, or damaged in any way. Do not operate the unit with loose, 1. Remove the blade sheath. damaged parts or improperly 2. Place one hand on the rear handle. adjusted. Place the other hand on the auxiliary 2. Before start up, remove the security handle.

  • Page 16: Operation

    locked in five positions (-90°, -45°, 0°, OPERATION 45° and 90°). See below. WARNING: Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. Repair or replace everything you need before using the product.
  • Page 17 Only use the charger (Model# like it). Never install any other battery A112701 by AAVIX) to charge the pack, it will ruin your tool and may battery. Do not charge the battery more create a hazard.
  • Page 18 This is a normal condition, and does not indicate a problem. 3. Use the charger in normal room temperatures whenever possible. To prevent overheating, do not cover the charger and do not charge battery packs in direct sunlight or near heat sources.
  • Page 19 charger before attempting to clean. when the product is switched off and 7. Do not immerse charger in water or disconnected from the power supply. any other liquid. 5. Never hold the product by the guard. 6. Never use the product standing on WARNING! Don’t allow any steps or a ladder.
  • Page 20 3. Keep handles dry, clean, and free balanced on both feet. Do not from oil and grease. Greasy, oily overreach.Be especially careful when handles are slippery causing loss of using the product after it has rained as control. the ground will be slippery and you 4.
  • Page 21 the blade. WARNING: Read the 16. Prepare the product to required length attaching the pole extensions safety information for safe operation and/or the hedge trimmer shaft. using the blade. Extreme care must be 17. Cut both sides from the bottom taken when using blades to ensure cutting upwards to the top.

  • Page 22: Maintenance

    MAINTENANCE forward when cutting higher hedge and the cutting area out of sight. WARNING: Before inspecting, cleaning, or servicing the machine, remove the battery pack from the tool and wait for all moving parts to stop. Failure to follow these instructions can result in serious personal injury or property damage.
  • Page 23 2. Check for loose screws, nuts or bolts of the hedge trimmer, using a slightly are tightly secured, (tighten as damp cloth with a mild detergent. Use needed). a brush to clean the blade. Never use 3. Check the blade sharpness. petrol, detergents, water or any other Cleaning After Each Use...

  • Page 24: Storage

    2. Repair or replace damaged parts and guaranteeing the cutting angle and tighten loose screws, nuts or bolts as blade equilibrium. Blade sharpening necessary or contact an authorised carried out by a non expert will service centre for repair before using result in the product vibrating and the product again..

  • Page 25: Transport

    available recycling and/ or disposal options. Discharge your battery pack by 2. When transporting or storing the operating your tool, then remove the product . Attach the blade with a battery pack from the tool and cover Blade Sheath. A proper use of the the battery pack connections with product will result in a reduced heavy duty adhesive tape to prevent...

  • Page 26: Troubleshooting

    TROUBLESHOOTING NOTE: Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING: Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself!
