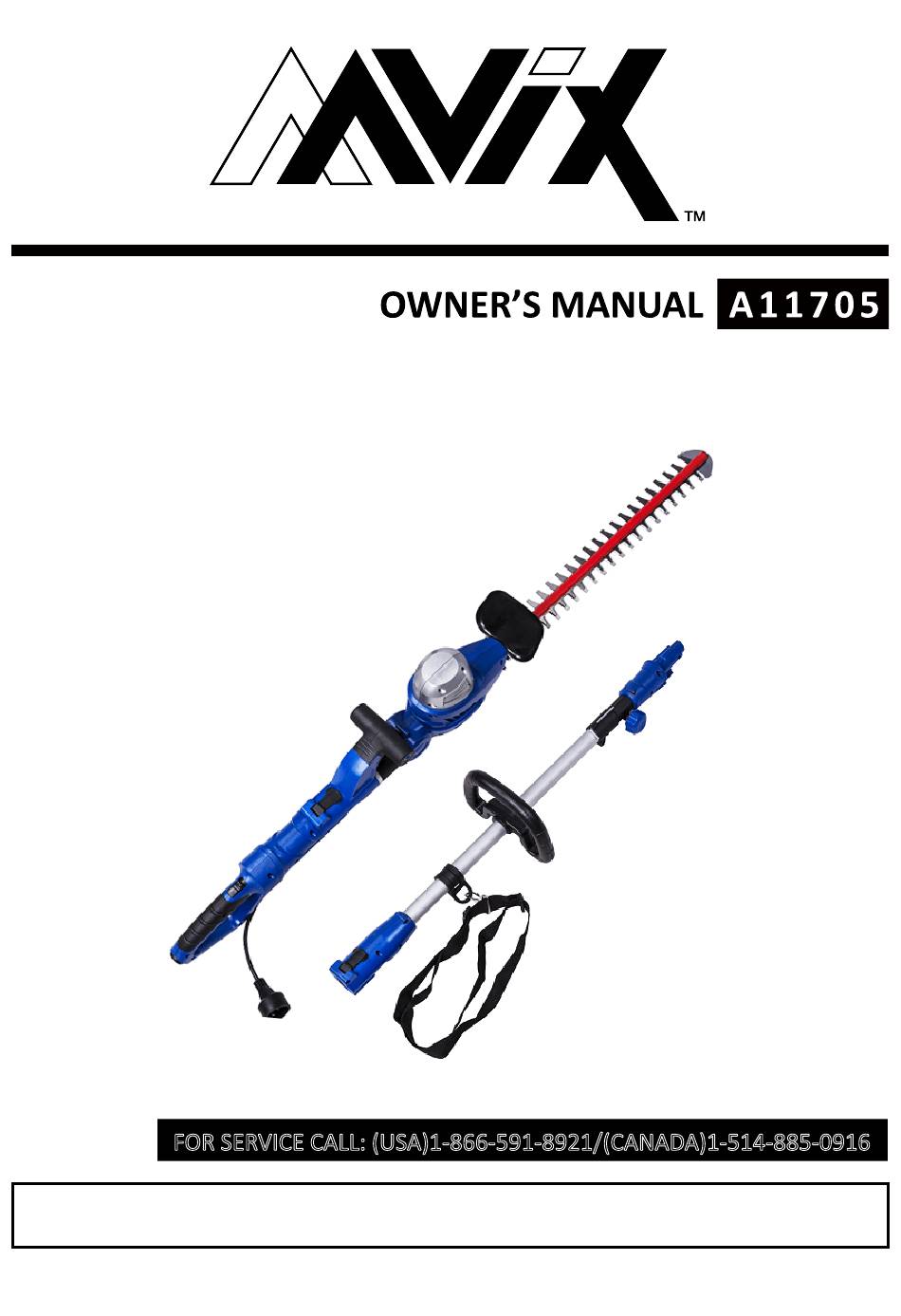

A A V I X
O U T D O O R S
20 INCH 2 IN 1 POLE/HANDHOLD HEDGE TRIMMER
FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916
WARNING : To reduce the risk of injury, user must read this manual before assembling, operating
and maintaining this unit. You are responsible for operating the product properly & safely.
Version: V1.20171106
Advertisement
Table of Contents
Related Manuals for AAVIX A11705
Summary of Contents for AAVIX A11705
- Page 1 A A V I X O U T D O O R S 20 INCH 2 IN 1 POLE/HANDHOLD HEDGE TRIMMER FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916 WARNING : To reduce the risk of injury, user must read this manual before assembling, operating and maintaining this unit.
-
Page 2: Table Of Contents
WARNING READ ALL INSTRUCTIONS BEFORE OPERATING! Follow all instructions. Save all warnings and instructions for future reference. These instructions below are for your safety. Read them thoroughly before using. Familiarize yourself with them to reduce hazards like personal injuries and damage to property. TABLE OF CONTENTS Safety Rules.………………….………………..………………………………………………….2 Symbols.………………….………………………………………………………………………….7... - Page 3 the cord for carrying, pulling or 4. Avoid accidental starting. Ensure the unplugging the power tool. Keep cord switch is in the off-position before away from heat, oil, sharp edges or plugging in. Carrying power tools with moving parts. Damaged or entangled your finger on the switch or plugging in cords increase the risk of electric shock.
- Page 4 accessories, or storing power tools. the switch is off when clearing jammed Such preventive safety measures material. Blades coast after turn-off. A reduce the risk of starting the power moment of inattention while operating tool accidentally. the hedge trimmer may result in 4.
- Page 5 Raynaud phenomenon, This causes a period of time.Take frequent breaks. reduction in the tact of the fingers and - If you detect any of the symptoms of their capacity to regulate temperature the white finger syndrome, consult generating a lack of sensibility.This immediately with your doctor.
-
Page 6: Safety Rules
grounded. the correct size to use depending on cord ELECTRICAL CONNECTION length and nameplate ampere rating. If in doubt, use the next heavier gage. The This product has a precision-built electric smaller the gage number, the heavier the motor. It should be connected to a power cord. -
Page 7: Symbols
SYMBOLS SAFETY ALERT SYMBOL Indicates danger, warning or caution. May be used in conjunction with other symbols or pictographs. (B) CONNECT PLUG AND RECEPTACLE READ OPERATOR'S NOTE: AWG = American Wire Gauge. MANUAL WARNING: Read the Ground Fault Circuit Interrupter (GFCI) operators manuals and protection should be provided on the follow all warnings and... -
Page 8: Specifications
10M(32.8ft) from the doing any maintenance power line work on the product. Remove plug from the power source immediately if the cable is damaged or SPECIFICATIONS Model A11705 Engine 120V ~ 60Hz Power 4.6Amp Protection grade IP20 Blade length: 20 inch... - Page 9 Know Your Hedge Trimmer 1.Rear Handle 9.Guard 2.Rotation Angle Of The 10.Blade Head Block 3.Lock Switch 11.Security Button 4.Front Handle 12.Unlock Button Head Turn 5.Power Cord 13.Auxiliary Handle 6.Cable Hook 14.Length Adjustment Knob 7.Lock Buckle 15.Unlock Button Head Rotation 8.Trigger switch 16.Turn Angle Of The Head The diagrams and pictograms herewith enclosed in this manual are a guide but not necessarily an exact copy of the actual product.
-
Page 10: Assembly
INTENED USE WARNING: Do not attempt 1. Only cut hedges. Do not use this product for other uses for which the to modify this product or create product has not been designed to accessories not recommended for use carry out. Do not use this product to with this product. - Page 11 2. Insert the rear handle into the opening of front handle. 3. Lock the lock buckle1 of the front handle. 1. Use your thumb or fingers to squeeze the safety lock piece, put the hook to the hanging part of the tool. 2.
-
Page 12: Starting And Stopping
Connecting To Power Supply fraction of a second is sufficient to inflict serious injury. : Failure to remove all excess WARNING: Make sure the cord slack from extension cord retainer trigger switch is released before could result in plug loosening from connecting or disconnecting the power receptacle. -
Page 13: Operation
starting accidentally, the lock switch and trimmer will stay on as long as the trigger switch must both be engaged to trigger switch is squeezed. start the unit. 5. Lock switch may be released once Starting pole hedge trimmer is running. - Page 14 2. Always grip the unit firmly with both hands when the unit is running. Angle Adjustment Rotating The Head To Left And Right 1. Slide the unlock button (1) and then turn the swivel handle to the desired Adjusting The Pole Extension position.
- Page 15 if you are disturbed while working above the guide line of string. Trim the with it and when other people enter side of a hedge so that it will be the working area. Always let the slightly narrower at the top. More of product come to complete stop the hedge will be exposed when before putting it down.
- Page 16 parts. cutting device. 16. NOTE: if blades do become - Have any damaged parts replaced or repaired with parts having equivalent jammed, stop the motor immediately, specifications. allow the blades to stop, and disconnect the plug from the power WARNING: Always keep source before attempting to remove the obstruction.
-
Page 17: Maintenance
NOTE: When shaping it is advisable surface in a sweeping motion following the shape of the hedge or to achieve a trapezoidal shape. A shrub. A slight tilt downwards of the trapezoidal cut corresponds to the cutting blade in the direction of natural growth of plants and results in motion is recommended for optimum optimal hedge growth, as it will... - Page 18 cutting elements, An inadequate use of 3. Check for loose screws, nuts or bolts these elements can cause SEVERE are tightly secured, (tighten as PERSONAL DAMAGES OR DEATH. needed). 4. Check the blade sharpness. Cleaning After Each Use WARNING: Always wear safety goggles or safety glasses with WARNING: Do not use side shields that comply with ANSI...
- Page 19 7. Wipe off any moisture with a soft free of debris. Remove trimmings. cloth. 2. Keep the hedging blade sharp to retain 8. Lightly coat the blade and all screws a good cutting performance. Replace a with a corrosion-inhibiting oil. worn or damaged cutting blade with a Ventilation Motor Conducts new one of the same type.
-
Page 20: Transport
3. Attach the blade sheath. 4. Always unplug the product from the 3. When transporting or storing the power source before storing. product . Attach the blade with a blade 5. Store the product and its accessories sheath. A proper use of the product in a clean, dry, frost-free, will result in a reduced probability of well-ventilated place, Keep the... -
Page 21: Troubleshooting
TROUBLESHOOTING NOTE: Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING: Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself!
