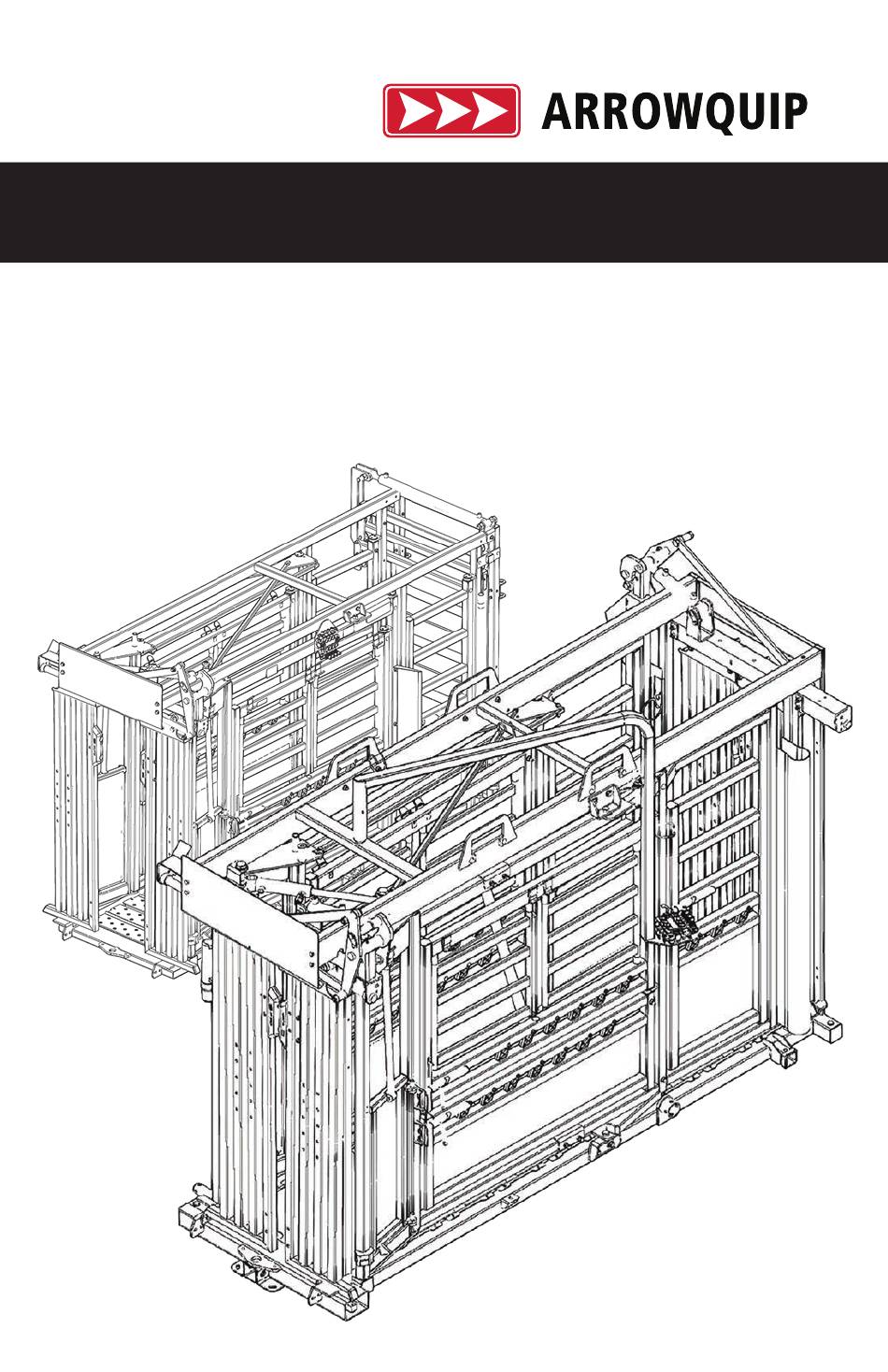

- Page 1 PRODUCT MANUAL Q-POWER CATTLE CRUSHES 1040 | 1070 LEFT | RIGHT OCTOBER 2021 01530 632002 | cs@arrowquip.com arrowquip.co.uk...
- Page 3 THIS PRODUCT MANUAL IS FOR THE FOLLOWING PRODUCTS: Q-Power 107 Series Deluxe Vet Q-Power 104 Series Deluxe Vet Q-Power 104 Series Standard...
- Page 4 WARNING DO NOT REPAIR THE CRUSH OR GO INTO THE CRUSH WHEN HYDRAULICS ARE IN OPERATION. This can result in injury to the worker. Unplug the motor before performing any necessary repairs or inspection. DO NOT ATTEMPT TO CONNECT THE ELECTRIC POWER PACK IF YOU ARE NOT A CERTIFIED ELECTRICIAN.
-
Page 5: Table Of Contents
CONTENTS Safety Precautions Risk Assessment Q-Power Hydraulic Cattle Crush Assembly Operating the Q-Power Cattle Crush Cold Start Power Failure Recommended Maintenance Maintenance Safety Regular Maintenance Hydraulic Maintenance Power Pack Maintenance Troubleshooting Guide Squeeze Crush Power Pack Warranty Add-Ons Maintenance & Safety Precautions 3rd Generation Q-Catch Head Scoop Sheeted Sternum Bar Clipping Rail... -
Page 6: Safety Precautions
OF SAFETY PRECAUTIONS ARE THE SOLE RESPONSIBILITY OF THE OPERATOR. All farm machinery and equipment are potentially dangerous. Careless use of any Arrowquip livestock equipment may cause injury or damage to persons, cattle, or property. Arrowquip has taken precautions in the design and manufacturing of this product to ensure that it is safe and user-friendly. -
Page 7: Risk Assessment
RISK ASSESSMENT Conduct a risk assessment on procedures regarding the operation of an Arrowquip hydraulic cattle crush, establishing a safe work procedure. 1. Ensure all users of the equipment have been inducted and comply with safe working procedures. -
Page 8: Q-Power Hydraulic Cattle Crush Assembly
Q-POWER HYDRAULIC CATTLE CRUSH ASSEMBLY Your crush will come fully assembled with the options you have ordered already fitted to the crush. However, it will be necessary to connect the hydraulics to a tractor or power pack. The following guide will assist you in properly setting up your crush for use. DO NOT ATTEMPT TO CONNECT THE ELECTRIC POWER PACK IF YOU ARE NOT A CERTIFIED ELECTRICIAN. -
Page 9: Cold Start
5. Review the cause for power failure and troubleshoot to restore power. 6. See start-up procedure once power is restored. RECOMMENDED MAINTENANCE All Arrowquip Products are made with precision parts to require minimal maintenance. However, regular maintenance will keep your equipment running smoothly and safely. MAINTENANCE SAFETY 1. -
Page 10: Regular Maintenance
REGULAR MAINTENANCE Inspect the entire unit. Ensure all moving components are free of debris and ✓ functioning properly. Use proper cleaning and troubleshooting steps, if necessary. Grease pivot points on cylinders with grease zerks. ✓ 1070 MODEL 1. YOKE GATE TOWER BUSHING 6. - Page 11 Lubricate slam latches and door hinges with WD-40 Dry Lube. ✓ Check gate latches and striker plates for wear. Ensure gates are locking securely. ✓ Clean bottom yoke gate door track to prevent dirt-build-up. ✓ RECOMMENDED MAINTENANCE | 6...
-
Page 12: Hydraulic Maintenance
Check mechanism pivot bolts for wear. Lubricate with WD-40 Dry Lube as necessary. ✓ HYDRAULIC MAINTENANCE If you have any issues with your hydraulic chute, contact Arrowquip Client Care at 1-877- 275-6075. 1. Replace oil annually, or more frequently as necessary. -
Page 13: Power Pack
Q-Power 107: 15 Years or 50,000 Total Head of Cattle.* Your product must be registered to claim warranty, and to ensure that Arrowquip has the required information to contact you in the event of a product or part recall. Any owner who fails to register their product warranty with Arrowquip through their Authorised Arrowquip Dealer voluntarily voids their warranty. -
Page 14: Add-Ons Maintenance & Safety Precautions
Warranty valid for the number of years or the number of head outlined above, whichever limit is met first. Follow the recommended use instructions to maximise the lifespan of your equipment. Arrowquip products that have only been used within acceptable tolerance following the stated recommended use will be eligible to claim warranty. -
Page 15: Sheeted Sternum Bar
Secure the head scoop with 4 bolts. Safety Precautions: 1. Ensure that the head scoop remains open until required to hold the animal’s head. 2. If not in use, use detent pin to hold the head scoop in place. Maintenance: 1. -
Page 16: Clipping Rail
Fasten bolts to front plate. SAFETY CHECK: Ensure that the sternum bar is installed correctly before running cattle ✓ through the crush. Safety Precautions: 1. Remove the sternum bar when working calves. CLIPPING RAIL Installation: Place both brackets on the crush. ADD-ONS MAINTENANCE &... - Page 17 Attach the clipping rail to the bottom bracket. Insert the clipping rail into the top bracket. Adjust clipping rail position to your preference. Tighten bolts to secure. Safety Precautions: 1. Ensure the clipping rail is installed and secured correctly before running cattle through the crush.
-
Page 18: Hydraulic Head Sweep
HYDRAULIC HEAD SWEEP Your Q-Power 107 Series Cattle Crush will come with the hydraulic head sweep installed. If you are having trouble with your hydraulic head sweep, contact Client Care at 01530 632002. 13 | ADD-ONS MAINTENANCE & SAFETY PRECAUTIONS... - Page 20 If you have any questions regarding your product or require assistance, please contact Arrowquip’s Client Care Team at 01530 632002 or by email at cs@arrowquip.com. Printed in Canada | October 2021...
