Summary of Contents for Arrowquip Q-CATCH 5400

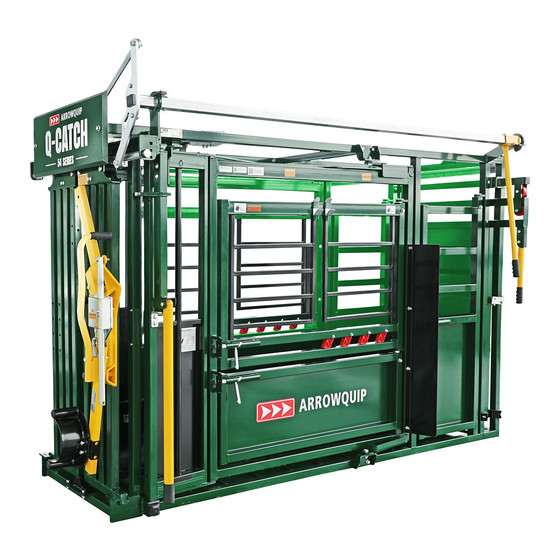

- Page 1 PRODUCT MANUAL Q-CATCH ® CATTLE CRUSHES 5400 | 7400 | 8700 LEFT - RIGHT OCTOBER 2021 01530 632002 | cs@arrowquip.com arrowquip.co.uk...
- Page 2 THIS PRODUCT MANUAL IS FOR THE FOLLOWING PRODUCTS: Q-Catch 87 Series Deluxe Vet Q-Catch 87 Series Standard Q-Catch 74 Series Deluxe Vet Q-Catch 74 Series Standard Q-Catch 54 Series Deluxe Vet Q-Catch 54 Series Standard...
-
Page 3: Table Of Contents
CONTENTS Safety Precautions Risk Assessment Operating the Q-Catch Cattle Crush ® 3E Q-Catch Yoke Gate Assembly Emergency Yoke Gate Release Yoke Gate & Squeeze Conversion Rolling Door Switch Recommended Maintenance Regular Maintenance (Every 6 Months) When Necessary Friction Lock Maintenance Troubleshooting Guide Warranty Add-Ons Maintenance &... -
Page 4: Safety Precautions
OF SAFETY PRECAUTIONS ARE THE SOLE RESPONSIBILITY OF THE OPERATOR. All farm machinery and equipment are potentially dangerous. Careless use of any Arrowquip livestock equipment may cause injury or damage to persons, cattle, or property. Arrowquip has taken precautions in the design and manufacturing of this product to ensure that it is safe and user-friendly. -
Page 5: Risk Assessment
7. DO NOT make any modifications to Arrowquip equipment. Non-factory modifications to the equipment can reduce the safety for the operator & livestock, and void warranty. RISK ASSESSMENT Conduct a risk assessment on procedures for which the cattle crush used and establish a safe work procedure. -
Page 6: 3E Q-Catch Yoke Gate Assembly
3E Q-CATCH YOKE GATE ASSEMBLY Your crush will come with the yoke gate fully assembled and ready for use. However, if you need to dissemble your yoke gate for any reason, the following guide will help you to properly reassemble your crush. ASSEMBLING THE Q-CATCH YOKE GATE Fit the mechanism parts as shown in the diagram below. - Page 7 EMERGENCY YOKE GATE RELEASE Arrowquip squeeze crushes are designed to ensure the safety of both animal and operator. With proper maintenance, the yoke gate will not jam under pressure. However, in the rare event that an animal becomes stuck in the yoke gate, the following guidelines will ensure you are able to release your animal quickly and safely.
-
Page 8: Yoke Gate & Squeeze Conversion
Arrowquip squeeze crushes can be ordered based on your preferred operating side. In the rare event that you would need to operate the yoke gate and squeeze on the opposite side, please contact your local dealer for additional parts and follow these instructions. - Page 9 LEFT-HAND TO RIGHT-HAND NOTE: Switching from Left-hand to Right-hand operation shown. For Right-hand to Left- hand operation, complete the steps from the opposite side. ** REMINDER ** SET PARTS ASIDE TOGETHER WITH THE CORRESPONDING BOLTS AND WASHERS. Remove the Q-Catch shield. Remove the yoke gate hammer and squeeze arm plate.
- Page 10 Remove the control tube and Q-Catch handle. Detach the control tower vertical tube. Unbolt the shaft, rotate to align with the second hole, and secure. 7 | YOKE GATE & SQUEEZE CONVERSION...
- Page 11 Install the control tower vertical tube and fasten with bolts. Flip the axle pin on the rear control bracket and transfer it to the opposite side. YOKE GATE & SQUEEZE CONVERSION | 8...
- Page 12 Feed the control tube through the control tower vertical tube. Insert the Q-Catch handle and mount the control tube on the rear control bracket. Secure with a bolt on the opposite side. 9 | YOKE GATE & SQUEEZE CONVERSION...
- Page 13 Install the squeeze arm plate. Install the yoke gate hammer and connect it to the squeeze arm plate. YOKE GATE & SQUEEZE CONVERSION | 10...
- Page 14 Install the Q-Catch shield. SQUEEZE THE CRUSH TO REMOVE THE FANDANGLE. Remove the Left-hand fandangle and squeeze bracket. B (x2) 11 | YOKE GATE & SQUEEZE CONVERSION...
- Page 15 Install the squeeze bracket and Right-hand fandangle on the opposite side. RIGHT-HAND FANDANGLE DO NOT TIGHTEN BOLTS UNTIL STEP 22 Unmount the Left-hand squeeze lockbox. Set aside. YOKE GATE & SQUEEZE CONVERSION | 12...
- Page 16 Detach the squeeze bracket. Transfer the squeeze bracket to the opposite side. 13 | YOKE GATE & SQUEEZE CONVERSION...
- Page 17 Mount the Right-hand squeeze lockbox. RIGHT-HAND LOCKBOX Detach the middle tie rod. YOKE GATE & SQUEEZE CONVERSION | 14...
- Page 18 Remove bolt from A and transfer to B as shown. Attach the middle tie rod as shown. 15 | YOKE GATE & SQUEEZE CONVERSION...
- Page 19 Secure bolts on the squeeze bracket and fandangle. BEFORE WORKING WITH ANIMALS, SAFETY CHECK: All parts have been reinstalled correctly ✓ All crush functions, including the yoke gate and squeeze mechanisms, ✓ are working properly. All bolts are tightened correctly ✓...
-
Page 20: Rolling Door Switch
ROLLING DOOR SWITCH Required Tools: - 9/16" wrench - 2x 3/4" wrench LEFT-HAND TO RIGHT-HAND Switching from Left-hand to Right-hand operation shown. For Right-hand to Left-hand operation, complete the steps from the opposite side. Variation with 4 screws on each plate shown. Same steps apply for rolling doors with 2 screws on each plate. - Page 21 Remove the rolling door track plate, and switch to the opposite side. Remove the rolling door bumpers and move to the opposite side ROLLING DOOR SWITCH | 18...
- Page 22 Install the rolling door and secure to the main frame. Install the rolling door handle slider on the right-hand side. Remove the rolling door lock and move to the opposite side. 19 | ROLLING DOOR SWITCH...
-
Page 23: Recommended Maintenance
RECOMMENDED MAINTENANCE All Arrowquip Products are made with precision parts to require minimal maintenance. However, regular maintenance will keep your equipment running smoothly and safely. REGULAR MAINTENANCE (EVERY 6 MONTHS) Inspect the entire unit. Ensure all moving components are free of debris and ✓... - Page 24 b. You should feel the yoke gate rollers moving when you open the yoke gate. The rollers should be tight enough to be moved by hand, but not over-tight to cause the rollers to bind. Clean bottom yoke gate door track to prevent dirt-build-up. ✓...
-
Page 25: When Necessary
WHEN NECESSARY 1. Clean the unit to remove excess build-up or dirt. 2. Adjust the squeeze lock settings. a. Loosen jam nuts, and back out front and rear bolts. b. Push/pull the squeeze handle to get a visual of the release pin. c. -
Page 26: Friction Lock Maintenance
e. When the adjustment is set, re-tighten jam nuts to lock adjustment in place. - Tightening = less push - Loosening = more push - You will not have to push the release pin very far to enable release. FRICTION LOCK MAINTENANCE 1. -
Page 27: Warranty
Q-Catch 87 Series Standard & Deluxe Vet Models: 15 Years or 50,000 Total Head of Cattle.* Your product must be registered to claim warranty, and to ensure that Arrowquip has the required information to contact you in the event of a product or part recall. Any owner who fails to register their product warranty with Arrowquip through their Authorised Arrowquip Dealer voluntarily voids their warranty. -
Page 28: Add-Ons Maintenance & Safety Precautions
ADD-ONS MAINTENANCE & SAFETY PRECAUTIONS 3rd GENERATION Q-CATCH HEAD SCOOP For complete information, read the Head Scoop manual. Requirements: - 2 people - 3/4" wrench Installation: a. Insert 4x1/2-13x3" carriage bolts through the yoke gate door from inside the crush. b. -
Page 29: Sheeted Sternum Bar
Safety Precautions: 1. Ensure that the head scoop remains open until required to hold the animal’s head. 2. If not in use, use detent pin to hold the head scoop in place. Maintenance: 1. Add grease through the grease nipples as needed. 2. -
Page 30: Clipping Rail
SAFETY CHECK: Ensure that the sternum bar is installed correctly before running cattle ✓ through the crush. Safety Precautions: 1. Remove the sternum bar when working calves. CLIPPING RAIL [AVAILABLE ON WORKING SIDE ONLY ON THE Q-CATCH 54 SERIES CATTLE CRUSH] Installation: Place both brackets on the crush. - Page 31 Insert the clipping rail into the top bracket. Adjust clipping rail position to your preference. Tighten bolts to secure. Safety Precautions: 1. Ensure the clipping rail is installed and secured correctly before running cattle through the crush.
- Page 32 If you have any questions regarding your product or require assistance, please contact Arrowquip’s Client Care Team at 01530 632002 or by email at cs@arrowquip.com. Printed in Canada | October 2021...
