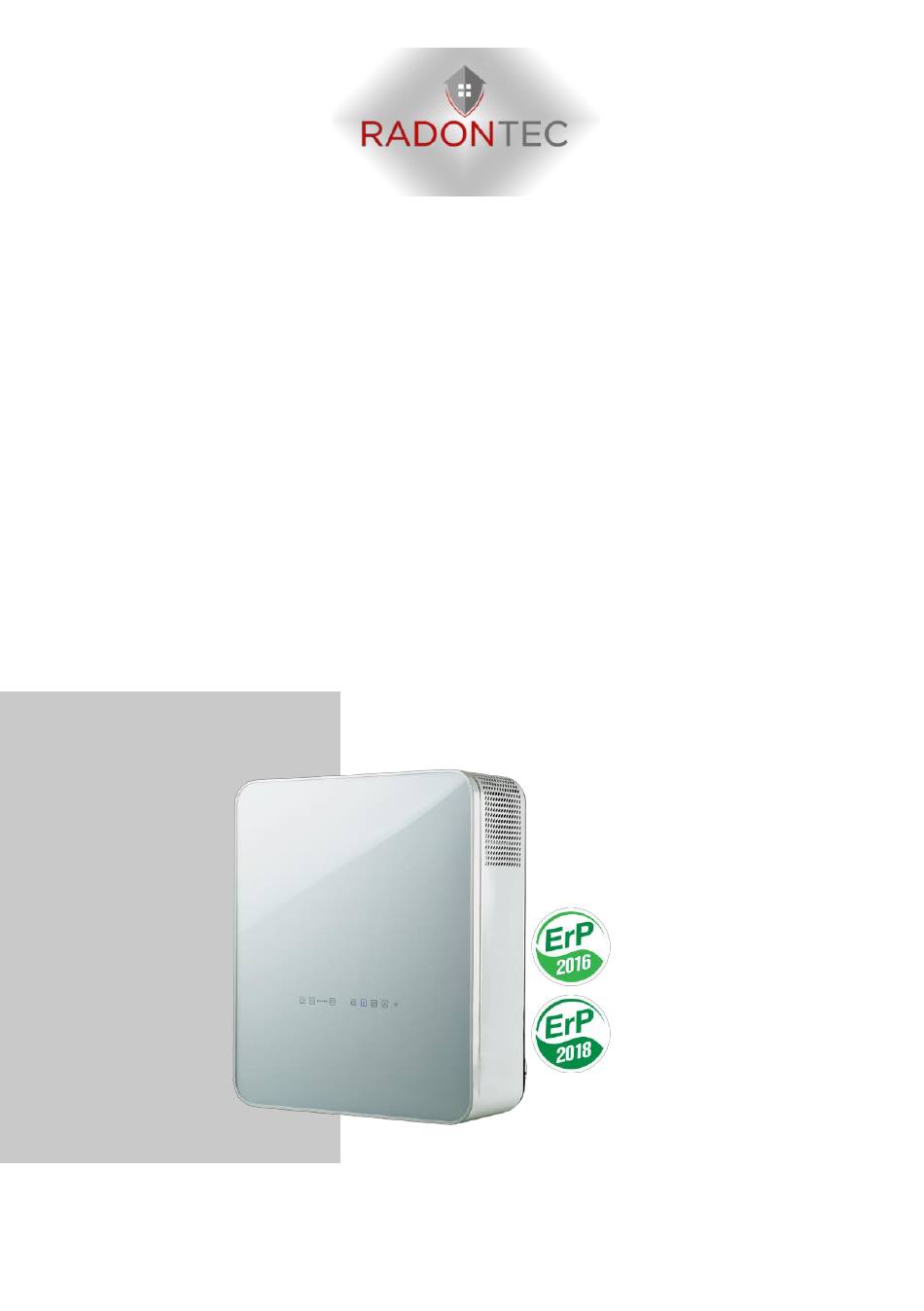

- Page 1 AlphaAir Freshbox 100 WiFi With and without Radon sensor Manual March 2021...
- Page 2 RadonTec GmbH Hauptstraße 5 89426 Wittislingen - Germany Tel: (+49) 9076 - 919 98 35 E-Mail: info@radontec.de Website: radontec.de Shop: radonshop.com Version: 01...
-
Page 3: Table Of Contents
Control ..............29 Remote control ............... 31 Emergency stop .............. 52 Error codes/warnings ..........53 Troubleshooting ............54 Maintenance and servicing ........55 Transport and storage ..........58 Disposal ..............59 Two year warranty ............. 59 Manual – AlphaAir Freshbox 100 WiFi... - Page 4 Support and Contact ..........63 16.1 Troubleshooting/FAQ ..........63 16.2 Contact Us .............. 63 Manual – AlphaAir Freshbox 100 WiFi...
-
Page 5: Introduction
Introduction The AlphaAir Freshbox 100 WiFi is a ventilation unit with pre- heating coil, enthalpy exchanger and WiFi connection. It is designed for controlled air exchange in detached houses, offices, hotels, cafés, conference rooms and other residential and commercial spaces. It is used for heat recovery from the extract air to heat the supply air. -
Page 6: Safety Precautions During Unit Installation
Do not use damaged equipment or wiring to connect the unit to the mains. Observe the specific safety regulations for the use of power tools when installing the appliance. Manual – AlphaAir Freshbox 100 WiFi... - Page 7 Take measures to prevent contact with the fan to avoid physical damage during unit testing and commissioning. Misuse of the product or unauthorised modification is not permitted. Manual – AlphaAir Freshbox 100 WiFi...
-
Page 8: Safety Instructions For Operating The Unit
Protect the electrical parts of the unit from water penetration. Use the appliance only as intended by the manufacturer. Do not connect tumble dryers or similar appliances to the appliance or to the ventilation system! Manual – AlphaAir Freshbox 100 WiFi... - Page 9 Do not allow children to operate the unit. Do not damage the mains cable while the unit is in operation. Do not place any objects on the mains cable. Keep explosive and flammable products away from the unit. Manual – AlphaAir Freshbox 100 WiFi...
- Page 10 Installation and connection work may only be carried out by suitably qualified personnel after receiving appropriate safety instruction. The installation site of the appliance must be secured against access by unsupervised children.. Manual – AlphaAir Freshbox 100 WiFi...
-
Page 11: Intended Use
The unit belongs to class I electrical installations. Protection class against ingress of foreign bodies and water: - IP22 for the mounted ventilation unit, - IP44 for the motor units. Manual – AlphaAir Freshbox 100 WiFi... -
Page 12: Scope Of Delivery
Supply voltage, V/50 1~ 230 Hz (60) Max. Fan power 20 W 23 W 29 W 37 W 53 W consumption Sound pressure level at 13 dBA 20 dBA a distance of 3 m Manual – AlphaAir Freshbox 100 WiFi... - Page 13 Type of heat exchanger Countercurrent heat exchanger Heat exchanger Enthalpy membrane material Supply air filter G4, F8 (optional: F8 activated carbon, H13) Exhaust air filter Diameter of the Ø 100 mm connection spigot Weight 31 kg Manual – AlphaAir Freshbox 100 WiFi...
-
Page 14: Dimensions
Dimensions Manual – AlphaAir Freshbox 100 WiFi... -
Page 15: Design And Operating Logic
In the heat exchanger, the heat from the warm extract air is transferred to the cold outside air. Here, the two air flows are completely separated from each other. The heat recovery minimises heat loss in the cold season and thus saves heating costs. Manual – AlphaAir Freshbox 100 WiFi... - Page 16 +5 °C. No condensate forms in the AlphaAir Freshbox 100 WiFi with an enthalpy heat exchanger because the humidity of the extract air is transferred to the supply air via the enthalpy membrane.
-
Page 17: Assembly And Operation
Assembly and operation Read these operating instructions carefully before installing the unit! Sufficient maintenance access must be considered when mounting the unit. The recommended minimum distances between the ventilation unit and the walls are as follows Manual – AlphaAir Freshbox 100 WiFi... -
Page 18: Mounting
The unit must be mounted on a smooth surface. Mounting the unit on an uneven surface will cause distortion of the casing and malfunction of the unit. Manual – AlphaAir Freshbox 100 WiFi... - Page 19 The connection bend and the ventilation pipes are available as accessories. Drill the holes with a diameter of 8 mm and a depth of 90 mm. Insert the dowels. Remove the perforated fields for the ventilation pipes from the Manual – AlphaAir Freshbox 100 WiFi...
- Page 20 Details can be found in the installation instructions for the ventilation bonnet. The external bonnet is not included in the scope of delivery of the ventilation system and is available as an optional accessory. Manual – AlphaAir Freshbox 100 WiFi...
- Page 21 To install the ventilation system with a second room connection, place the connection elbow in the hole prepared for it in the wall and fix it with wedges. Connect the connection elbow to the air duct. Manual – AlphaAir Freshbox 100 WiFi...
- Page 22 6. Inserting an additional exhaust vent: remove the plug at the back of the unit. To do this, unscrew the screws, remove the plug and fix the spigot in its place with the screws. Manual – AlphaAir Freshbox 100 WiFi...
- Page 23 Open the ventilation unit, loosen the screws and remove the heat exchanger. Lift the unit and insert the spigots into the corresponding ventilation pipes Manual – AlphaAir Freshbox 100 WiFi...
- Page 24 8. Secure the ventilation unit to the wall with the screws and plugs provided. Replace the heat exchanger. Insert the humidity or CO2 sensor (purchased separately) on the mounting bracket. Make the electrical connections, see "Mains connection". Reassemble the ventilation system in the reverse order. Manual – AlphaAir Freshbox 100 WiFi...
-
Page 25: Mains Connection
The unit must be disconnected from the mains before any work is carried out! Electrical connections may only be carried out by an authorised specialist! The basic electrical data of the unit are given on the manufacturer's label. Manual – AlphaAir Freshbox 100 WiFi... - Page 26 The miniature circuit breaker is not included in the scope of delivery and can be ordered separately. Manual – AlphaAir Freshbox 100 WiFi...
-
Page 27: Connecting Additional Control Units
To access the control unit, open the access door of the ventilation unit, loosen the screws fixing the cover and remove the cover. * not available in the scope of delivery of the unit. Manual – AlphaAir Freshbox 100 WiFi... -
Page 28: Connecting The Humidity Sensor Or Со2-Sensor
2 x 0,25 Heating element for 3 x 0,75 condensate heating The humidity sensor or CO2 sensor is located inside the CO2* ventilation system * not available in the scope of delivery of the unit. Manual – AlphaAir Freshbox 100 WiFi... -
Page 29: Control
Control The ventilation system is controlled via the control panel on the housing of the ventilation system, via the remote control and via the app. Manual – AlphaAir Freshbox 100 WiFi... - Page 30 5 seconds, it starts flashing and the control unit switches to "Setup Mode". At the end of the filter life, the filter change indicator on the control panel lights up to indicate that the filters need to be replaced. Manual – AlphaAir Freshbox 100 WiFi...
-
Page 31: Remote Control
The switch-off time of the fans is 0.5-2 minutes, depending on the model of the ventilation system. Remote control Control via app on mobile device For Android in the Google Play Store: https://play.google.com/store/apps/details?id=com.embarca dero.BlaubergFRESHBOX Manual – AlphaAir Freshbox 100 WiFi... - Page 32 Frequency band, GHz Transmission power, mW 100(+20) (dBm) Network DHCP WLAN security WPA, WPA2 If the app is started without connecting to the system, the following message is displayed on the screen of the mobile device: Manual – AlphaAir Freshbox 100 WiFi...
- Page 33 - Call up the menu of the app - Select the menu item Connection - Home. If the mobile device is connected to WLAN access point without router, then select the default connection. In case of Manual – AlphaAir Freshbox 100 WiFi...
- Page 34 - If necessary, change the connection name, enter the password of the system (valid characters: 0 ... 9, a...z, A...Z). The default password of the system is 1111 (four ones). - Confirm the entered data by pressing the key Manual – AlphaAir Freshbox 100 WiFi...
- Page 35 - Go to the menu ( ) - Connection - Home. - Select the connection and press the key - Enter and confirm the password. Valid characters: 0...9, a...z, A...Z - Press the Change Password key. Manual – AlphaAir Freshbox 100 WiFi...
- Page 36 In this mode, up to 8 mobile devices can be connected to the fan to control it. Select the desired security level for the Access point mode: Open: not password protected. WPA PSK: password protected. WPA2 PSK: password protected. WPA/WPA2 PSK: password protected (recommended). Manual – AlphaAir Freshbox 100 WiFi...
- Page 37 DHCP: automatic assignment of the IP address when connecting to the home router (recommended). Static: allows the IP address, subnet mask and default gateway to be assigned manually. These settings are only recommended for experienced users. Manual – AlphaAir Freshbox 100 WiFi...
- Page 38 5 seconds until the LED stops flashing. The following parameters are available for connecting to the system in setup mode: WLAN name: Setup Mode. Manual – AlphaAir Freshbox 100 WiFi...
- Page 39 - Call up the connection settings menu. - Activate the control via cloud server. Warning. If this function is activated, WLAN connection faults of the home router can lead to temporary communication failures with ventilation units. Manual – AlphaAir Freshbox 100 WiFi...
- Page 40 - Add a new connection by pressing the button - Enter the name of the ventilation unit and ID. The ID number of the ventilation unit is indicated on the control board. - The default password is 1111. Manual – AlphaAir Freshbox 100 WiFi...
- Page 41 - Confirm the entered data by pressing the key - Press the key if necessary to log out. Manual – AlphaAir Freshbox 100 WiFi...
- Page 42 Menu structure Manual – AlphaAir Freshbox 100 WiFi...
- Page 43 Red light - alarm indicator, orange light - warning indicator Heat dissipation indicator of the electric heating coil before the system is switched off Boost Boost operation indicator The current temperature of the sensor that controls the air temperature. Manual – AlphaAir Freshbox 100 WiFi...
- Page 44 Basic settings - Timer menu Recirculation: Activation of the recirculation mode. If there is no recirculation mode, the key is inactive. Heating register: Selection of the temperature setpoint for the post-heating register or switching off the heating register. Manual – AlphaAir Freshbox 100 WiFi...
- Page 45 (boost switch) on the control board disappears. Boost switch-on delay: determines the switch-off delay time for boost mode after the signal at the digital input (boost switch) has been applied. Manual – AlphaAir Freshbox 100 WiFi...
- Page 46 Time setting for a specific period of time Selection of the control temperature +15 ° С.. + 30 ° С, off are available. If OFF is selected, temperature control is not executed during timed operation. Manual – AlphaAir Freshbox 100 WiFi...
- Page 47 In this menu, the current time and date are displayed and their settings are also made. Time display format: HH:MM:SS Date format: DD.MM.YYYY Manual entry of date and time The same time as on the mobile device is set automatically. Manual – AlphaAir Freshbox 100 WiFi...
- Page 48 Other The backlight changes dynamically, after releasing the button the brightness decreases to a preset value. Sound - switches the loudspeaker on the board on/off. Manual – AlphaAir Freshbox 100 WiFi...
- Page 49 Engineering menu Air flow rate Air flow rate, preset ventilation level 1-5 and boost are set in this section. Manual – AlphaAir Freshbox 100 WiFi...
- Page 50 Supply air temperature Exhaust air temperature in front of the heat exchanger Exhaust air temperature behind the heat exchanger Firmware This menu shows the current version and date of the control unit and control panel firmware. Manual – AlphaAir Freshbox 100 WiFi...
- Page 51 The ventilation system is forcibly switched off. The alarm is reset manually with the Reset alarms button. Warning - the system is not forcibly switched off. Warnings are automatically reset after the cause has been eliminated. Manual – AlphaAir Freshbox 100 WiFi...
-
Page 52: Emergency Stop
Remote control connection error with the control unit (not shown in the app). • — — — — Wifi module initialisation error • • • • • Unknown error (contact your dealer if this error occurs). Manual – AlphaAir Freshbox 100 WiFi... -
Page 53: Error Codes/Warnings
Alarm! No connection to the control panel and the control unit Alarm! No additional supply air temperature sensor before the reheating coil. Alarm! Short circuit of the additional supply air temperature sensor in front of the main heating coil. Manual – AlphaAir Freshbox 100 WiFi... -
Page 54: Troubleshooting
Check that the diffusers and connection in the shutters are open. Check the fans condition of the ventilation bonnet and the supply air grille and clean them if necessary. Check the ventilation pipes for dirt or damage. Manual – AlphaAir Freshbox 100 WiFi... -
Page 55: Maintenance And Servicing
After drying, reassemble the filters in the reverse order. Put the filters back into the ventilation unit. Clean the filters as needed, but at least 3-4 times a year. Contact the dealer for replacement filters. Manual – AlphaAir Freshbox 100 WiFi... - Page 56 Regular dry cleaning is recommended. A hoover with a narrow suction nozzle is best suited for this. Pull the heat exchanger out of the ventilation system, clean it with a hoover and put it back into the ventilation system. Manual – AlphaAir Freshbox 100 WiFi...
- Page 57 Even if you carry out all the recommended maintenance regularly, some dust may get into the ventilation pipes and thus reduce the delivery rate and volume flow. Maintenance consists of regular cleaning or replacement of the ventilation pipes. Manual – AlphaAir Freshbox 100 WiFi...
-
Page 58: Transport And Storage
Transport the unit only in the operating position. Carry out loading and unloading operations carefully, protect against shocks. Before first use after transport at low temperatures, the unit must be kept at room temperature for at least 3-4 hours. Manual – AlphaAir Freshbox 100 WiFi... -
Page 59: Disposal
The product complies with the European norms and standards, directives on low voltage and electromagnetic compatibility. We hereby declare that the product complies with the relevant requirements of Directive 2014/30/EU on electromagnetic compatibility, Voltage Directive 2014/35/EU and Directive 93/68/EEC on CE marking. Manual – AlphaAir Freshbox 100 WiFi... - Page 60 - Failure by the consumer to carry out timely technical maintenance of the appliance. - In the event of external damage to the housing and internal units caused by the consumer (except for external modifications to the unit that are necessary for assembly). Manual – AlphaAir Freshbox 100 WiFi...
- Page 61 - Illegal actions by third parties in relation to the appliance. - Failure of the appliance due to force majeure (fire, flood, earthquake, war, military action of any kind, blockades). Manual – AlphaAir Freshbox 100 WiFi...
- Page 62 Contact the seller of the unit for warranty service. In the event of a warranty claim, we recommend that you contact us first. To obtain this warranty service, please contact us at: info@radontec.de Manual – AlphaAir Freshbox 100 WiFi...
- Page 63 Should you have any further questions or require further help and technical support, please do not hesitate to contact us. RadonTec GmbH Hauptstraße 5 89426 Wittislingen - Germany Tel: (+49) 9076 - 919 98 35 E-Mail: info@radontec.de Website: radontec.de Shop: radonshop.com Manual – AlphaAir Freshbox 100 WiFi...
