RadonTec AlphaBlower 2200 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AlphaBlower 2200
Manual
January 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AlphaBlower 2200 and is the answer not in the manual?

Questions and answers

Related Manuals for RadonTec AlphaBlower 2200

Summary of Contents for RadonTec AlphaBlower 2200

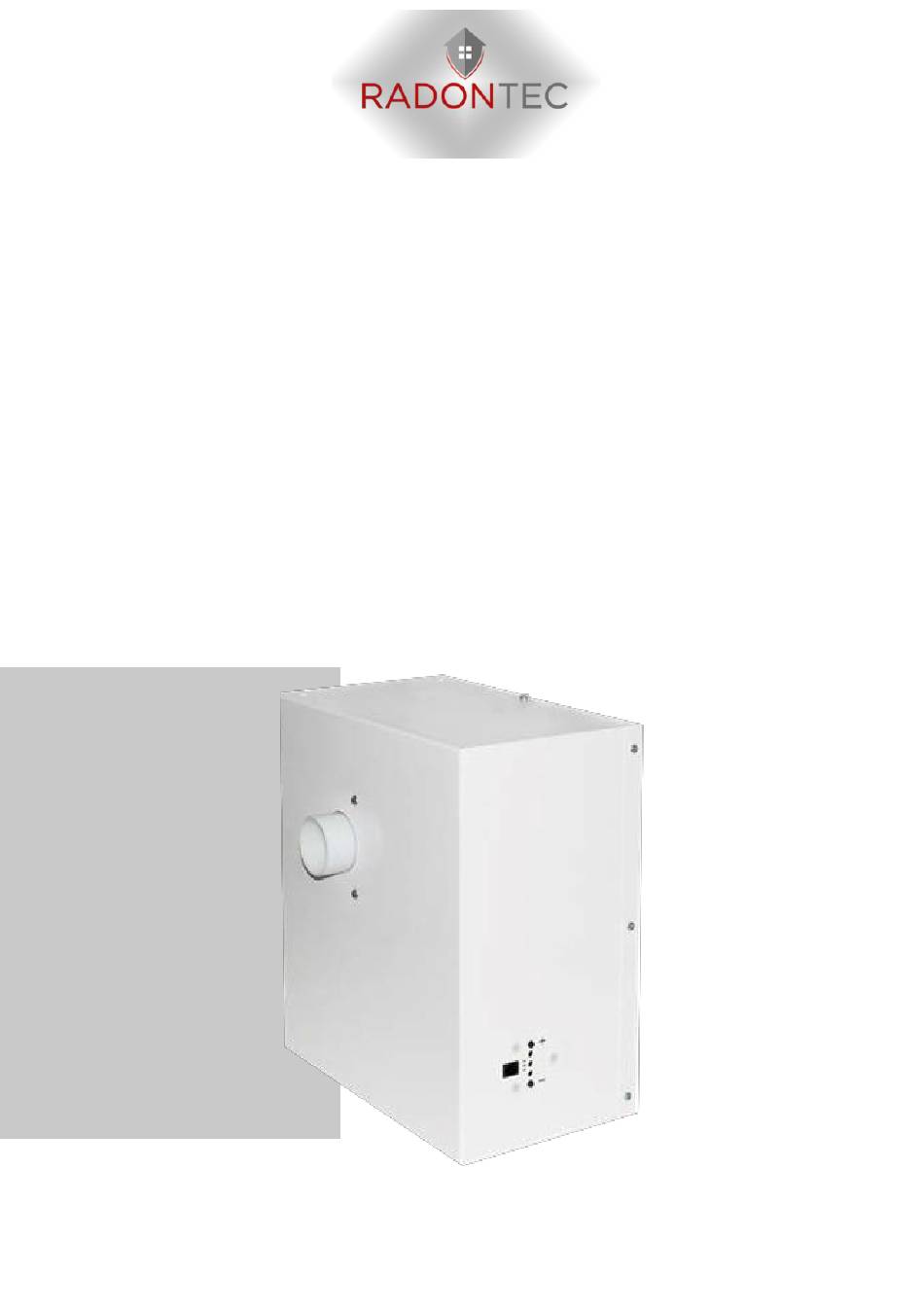

  • Page 1 AlphaBlower 2200 Manual January 2020...
  • Page 2 RadonTec GmbH Hauptstraße 5 89426 Wittislingen – Germany Tel: (+49) 9076 - 919 98 35 E-Mail: info@radontec.de Website: radontec.de Shop: radonshop.com Version: 01.1 – 19.01.2020...

  • Page 3: Table Of Contents

    Yellow + warning tone: Service interval reset ..15 Red + warning tone: Cleaning ........ 15 Symbols ................17 Declaration of Conformity ..........18 Warranty ................ 19 Support and Contact ............20 Troubleshooting/FAQ ..........20 Contact Us .............. 20 Manual - AlphaBlower 2200...

  • Page 4: Introduction

    Introduction The AlphaBlower 2200 is suitable for installation in a vacuum pipe system for pumping radon, to reduce radon contamination in buildings. Accessories The scope of delivery of the AlphaBlower 2200s includes the following individual parts: AlphaBlower 2200 Wall mount...

  • Page 5: Technical Overview

    120 VA / 27 VAC 230 V / 50 Hz Power 70 W Max. Vacuum 2200 Pa Max. Flow rate 130 m³/h Overvoltage protection Noise level at 1m distance <40 dB (A) Dimensions LxWxH 360 x 320 x 200 mm Manual - AlphaBlower 2200...

  • Page 6: Installation

    Keep these instructions in a place where they are accessible to all users. Intended use The AlphaBlower 2200 must be placed or mounted on a stable and solid location in the building. To reduce condensation problems, the AlphaBlower 2200 and the corresponding piping should be mounted in heated areas, or the piping must be insulated.

  • Page 7: Installation Instructions

    Installation instructions 1. Fix the wall bracket to the wall with four screws. 2. Insert the AlphaBlower 2200 into the holder Manual - AlphaBlower 2200...
  • Page 8 3. Fix the AlphaBlower 2200 in the holder with 4 screws 4. Installation radon well Ø 40-60 Manual – AlphaBlower 2200...
  • Page 9 Do not use the cable for purposes for which it is not intended. Following the installation, the radon concentration must be measured and a maintenance cycle must be set. Manual - AlphaBlower 2200...
  • Page 10 6. Possible design variant Manual – AlphaBlower 2200...
  • Page 11 7. Set m³/h By pressing the Plus key, the air volume flow can be increased. The air volume flow can be reduced by pressing the Minus key. Fan- characterist Delivery rate (m 3 /h) Manual - AlphaBlower 2200...

  • Page 12: User Groups

    Technical trainees under the guidance and supervision of a qualified specialist Electrical connection Electrician Replacement of Technical trainees under the electrical spare parts guidance and supervision of a trained specialist Determination of Specialist maintenance intervals Manual – AlphaBlower 2200...
  • Page 13 Improper use can lead to respiratory problems, suffocation, poisoning or cancer. Exhaust air must not be directed into used areas, e.g. near a terrace. Minimum distance to the nearest window must be 2 or more meters. Observe wind direction. Manual - AlphaBlower 2200...

  • Page 14: Led Display & Warning Signals

    LED display & warning signals The control panel of the AlphaBlower 2200s provides status information via 3 LEDs. Green The green LED indicates that power is being supplied to the AlphaBlower 2200. Manual – AlphaBlower 2200...

  • Page 15: Yellow + Warning Tone: Service Interval Reset

    The red LED with warning tone indicates that the air supply or air discharge is blocked. AlphaBlower 2200 must be cleaned. After 5 minutes, the aspirator is switched off if the alarm has not been terminated. Manual - AlphaBlower 2200...
  • Page 16 Repairs may only be carried out by recognized specialists. For more details, refer to chapter 5.3 User groups. Finally, reset the alarm by pressing the + key for 5 seconds. The green LED lights Manual – AlphaBlower 2200...

  • Page 17: Symbols

    Dirty filters must be treated as hazardous waste. Dispose of replaced device parts, filters or old devices in accordance with the the regulations of your country. Manual - AlphaBlower 2200...

  • Page 18: Declaration Of Conformity

    Applied harmonized standards: DIN EN 60335-1: 2012-10 DIN EN 60335-2-45: 2012-08 DIN EN 62233: 2008-11 / 2009-04 DIN EN 55014-1: 2012-05 DIN EN 55014-2: 2009-06 DIN EN 61000-3-2: 2015-03 DIN EN 61000-3-3: 2014+03 DIN EN 50581:2013-02 Wittislingen, 2016-02-24 Manual – AlphaBlower 2200...

  • Page 19: Warranty

    Warranty The limited warranty (1 year) applies to the AlphaBlower 2200 purchased from RadonTec GmbH or authorized dealers. This covers defects in material or workmanship under normal use for a period of one year from the date of receipt of the product.

  • Page 20: Support And Contact

    Should you have any further questions or require further help and technical support, please do not hesitate to contact us. RadonTec GmbH Hauptstraße 5 89426 Wittislingen - Germany Tel: (+49) 9076 - 919 98 35 E-Mail: info@radontec.de Website: radontec.de Shop: radonshop.com Manual – AlphaBlower 2200...

This manual is also suitable for:

55-001
