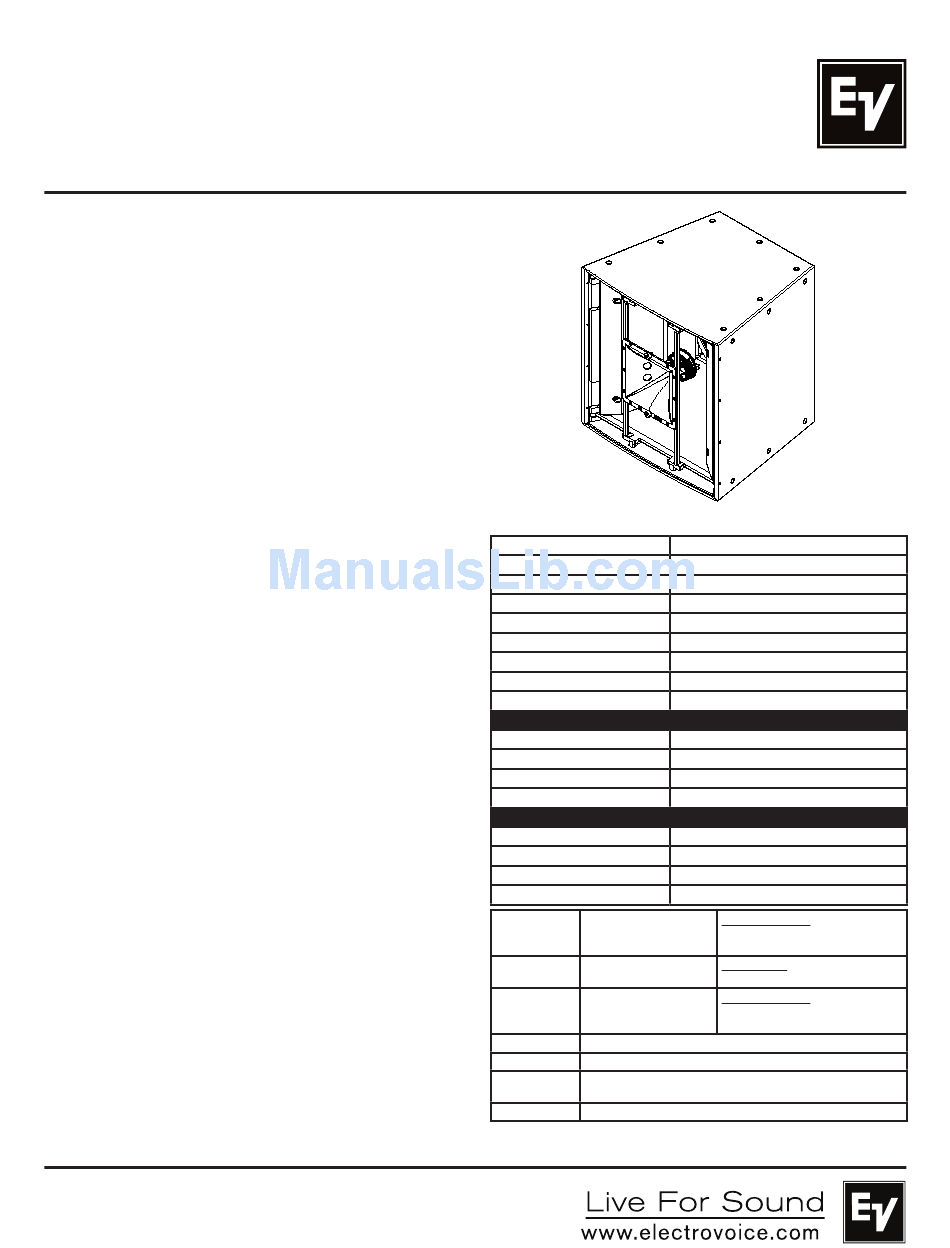

Electro-Voice EVH-1152D/66 Specifications
Electro-Voice EVH-1152D/66 Specifications

Electro-Voice EVH-1152D/66 Specifications

Single 15” two-way coaxial 60° x 60° full-range high-efficiency loudspeaker system

Advertisement

Quick Links

Key Features:

DH7N 3" (76 mm) diaphragm, 1.4" (36 mm) exit
pure titanium compression driver
SMX2151 15" (381 mm) LF transducer with fully
symmetric drive
Advanced fourth-order crossover network with
HF protection
Coverage pattern: 60° x 60° Constant
Directivity
12" rotatable waveguide
TM
105 dB sensitivity, 138 dB maximum SPL
System rating: 500 W continuous, 2000 W peak
Active rating: LF 400 W/HF 75 W continuous
(1600 W/300 W peak)
(28) M10 threaded suspension points
PI and FG versions available with gland nut and
stainless-steel grille

General Description:

The Electro-Voice EVH-1152D/66 is a high-power, two-way horn-loaded
coaxial loudspeaker system that can be used in a variety of applica-
tions where excellent sound reinforcement, wide bandwidth directivity
control, and high efficiency is required in a compact package.
The EVH-1152D/66 utilizes the DH7N, a high-output 3" titanium com-
pression driver, coupled to a Constant Directivity™ 60° x 60° waveguide.
The SMX2151 15" woofer was developed using FEA optimization for
motor, suspension, and electrical design to ensure very low distortion,
high efficiency, and maximum intelligibility at high SPL. The crossover
uses steep, 24-dB-per-octave slopes with equalization for very smooth
response in the vocal range, linear off-axis response, and a protection
circuit for long-term reliability. This combination of technologies results
in a smooth response to 20 kHz and excellent pattern control down to
500 Hz.
The EVH-1152D/66's features make it ideal for many fixed-install appli-
cations. The trapezoidal enclosure is constructed of weather-resistant
birch, and coated with EVCoat
TM
maximum protection against extreme outdoor elements, a fully-weath-
erized fiberglass version is available. The unique acoustic and rigging
design allows for vertical and horizontal clusters to be built using any
combination of loudspeakers from the entire EVF and EVH series. With
seven horn patterns to choose from, along with an assortment of low-
frequency and subwoofer loudspeakers, you have the tools to maxi-
mize flexibility of system design, no matter what the application and
budget. The innovative input panel provides a choice of Phoenix-style
connector (included in all standard models) or the ability to add a dual
NL4-type connector cover plate or gland-nut cover plate (for weather-
izing applications). An externally accessible jumper selects passive or
active operation. An available 70.7/100-V transformer kit may be easily
mounted to the input panel for use in distributed systems. All these
features give you the flexibility to address a large range of venues,
quickly and precisely supporting customer requirements with fewer
items in inventory.
for protection from the elements. For
EVH-1 152D/66
Single 15" Two-Way Coaxial
60° x 60° Full-Range
High-Efficiency
Loudspeaker System
Technical Specifications:
Freq. Response
(-3 dB): 60 Hz - 17 kHz
1
Freq. Range
(-10 dB): 50 Hz - 20 kHz
1
Rotatable Coverage: 60° x 60°
Rec. High-Pass Frequency: 60 Hz
Passive Crossover Freq.: 1300 Hz
Axial Sensitivity
Max. Calculated SPL
Passive Power Handling
Impedance: 8 ohms (nominal), 6.0 ohms (min.)
LF Transducer - SMX2151, 15" (381 mm) driver
LF Axial Sensitivity
LF Max. Calculated SPL: 138 dB
LF Power Handling
LF Impedance: 8 ohms (nominal), 6.1 ohms (min.)
HF Transducer - DH7N, 3" (76 mm) diaphragm compression driver
HF Axial Sensitivity
HF Max. Calculated SPL: 137 dB
HF Power Handling
HF Impedance: 8 ohms (nominal), 6.0 ohms (min.)
Connectors: Dual four-pin 10 AWG
Phoenix/Euro Block
screw-terminals
Enclosure: 13-ply weather-resistant
birch with EVCoat
Grille: 16 GA powder-coated
galvanneal with
rotatable logo
Environmental: IEC 60529 IP55 for PI and FG versions
Suspension: (28) M10 threaded suspension points
Dimensions
30.26" x 30.26" x 26.77"
(H x W x D):
(768.6 mm x 768.6 mm x 680.1 mm)
Weight: 145.5 lb (66.1 kg) net, 160.5 lb (72.9 kg) shipping
Half-space measurement.
1
EIA RS-426A, tested for eight hours.
2
: 105 dB (1 W/1 m)
1
: 138 dB
1
: 500 W continuous, 2000 W peak
2
: 106 dB (1 W/1 m)
4
: 400 W continuous, 1600 W peak
3
: 112 dB (1 W/1 m)
4
: 75 W continuous, 300 W peak
3
PI/FG Versions - CDG dual-gland-
nut input panel cover included
FG Version - 13-ply weather-resis-
tant birch with fiberglass finish
TM
PI/FG Versions -
Stainless steel with
hydrophobic cloth
AES 2-1984, tested for eight hours.
3
Arithmetic averages, 300 - 1,300 Hz (LF) and
4
1,300 - 5,000 Hz (HF).
