INSTRUCTION MANUAL
Electric Mini Circular Saw
Model # PS4006
Item# 76604L
Have product questions or need technical support? Please scan the QR code to enter our official
website and contact us!
Website:
www.powersmartusa.com
Toll free: 1-800-791-9458 M-F 9-5 EST
Email: support@amerisuninc.com
Website
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Power smart PS4006
Summary of Contents for Power smart PS4006
- Page 1 INSTRUCTION MANUAL Electric Mini Circular Saw Model # PS4006 Item# 76604L Have product questions or need technical support? Please scan the QR code to enter our official website and contact us! Website: www.powersmartusa.com Toll free: 1-800-791-9458 M-F 9-5 EST Website...
-
Page 3: Table Of Contents
Assembly instruction…………………………………………….………. 13 Operating instruction…………………………………………………..14 Maintenance……………………………………………………..……….. 17 Exploded view& Parts list……………………………………………….. 18 Warranty statement………………………………………………………. 21 TECHNICAL DATA Electric Mini Circular Saw Model # PS4006 Motor: 120 V, 60 Hz, 5.8 Amp No Load Speed: 3500 rpm Blade Diameter: 4-1/2 inch... -
Page 4: Introduction
INTRODUCTION ® Thank You for Purchasing a PowerSmart Product. This manual provides information regarding the safe operation and maintenance of this product. Every effort has been made to ensure the accuracy of the ® information in this manual. PowerSmart reserves the right to change this product and specifications at any time without prior notice. -
Page 5: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, and knowing how your power tool works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Do not operate this unit until you read this instruction manual for safety, operation and maintenance instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. - Page 6 WARNING: Do not expose to rain or use in damp locations. Guidelines for using extension cords Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
- Page 7 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 8: Special Safety Rules For Electric Mini Circular Saw
SPECIFIC SAFETY RULES FOR ELECTRIC MINI CIRCULAR SAW Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Use clamps or another practical way to secure and support the workpiece to a stable platform. - Page 9 Cutting Procedures WARNING: Keep hands away from the cutting area and the saw blade. Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece. Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth ...
- Page 10 Lower Guard Function Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent.
-
Page 11: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) -
Page 12: Knowing Your Electric Mini Circular Saw

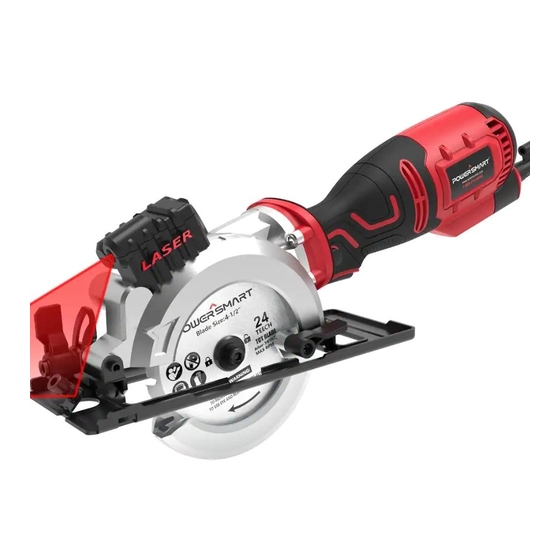

KNOWING YOUR ELECTRIC MINI CIRCULAR SAW Saw blade Lower blade guard Base plate Lower guard lever Dust extraction port Upper blade guard Rip guide Vacuum adaptor Allen wrench for blade Bevel scale bracket Bevel clamp lever Rip guide locking screw Blade bolt&... -
Page 13: Assembly Instruction
ASSEMBLY INSTRUCTION WARNING: Do not use this product if any parts on the packing list are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury. -
Page 14: Operating Instruction
INSTALL THE RIP GUIDE To install the rip guide on the machine, perform the following steps. Unplug your circular saw. Insert the rip guide (7) through all three slots on the base plate (3) at the front of the saw, starting with ... - Page 15 Angle Adjustment Loosen the bevel scale bracket (10) for angle adjustment. Adjust the base plate (3) to the desired angle between 0°to45° Tighten the bevel scale bracket（10）. CUTTING METHODS Parallel Cut Adjustment Loosen the lock knob of edge guide. ...
- Page 16 LASER FUNCTION WARNING: Do not stare directly at the laser beam, do not deliberately aim the beam at personnel and ensure that it is not directed towards the eye of a person for longer than 0.25s. When you make the line of the cut on the work piece, the laser line generator can help you get better alignment.
-
Page 17: Maintenance
MAINTENANCE WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. Regular cleaning is required for the safe operation of the tool, as an excessive buildup of dust will prevent the tool from operating correctly. -
Page 18: Exploded View& Parts List
EXPLODED VIEW& PARTS LIST... - Page 19 Item Stock# Description Item Stock# Description Pan Head Philips screw Pan Head Philips PS4006-001 PS4006-031 M4X14(with washer) screw M4X12 PS4006-002 Spindle lock cap PS4006-032 Lower guard baffle PS4006-003 Spring for spindle lock PS4006-033 Nut M5 PS4006-004 Gear box cover PS4006-034...
- Page 20 Item Stock# Description Item Stock# Description Pan Head Philips PS4006-061 PS4006-083 Depth frame screw M4X45 PS4006-062 Rotor PS4006-084 Angle frame PS4006-063 Screw ST2.9X10 PS4006-085 Screw M6X12 PS4006-064 Socket terminal PS4006-086 Spring PS4006-065 Soil spring PS4006-087 Base assemble PS4006-066 Left carbon holder...
-
Page 21: Warranty Statement
TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE. Power Smart (“Seller") warrants to the original purchaser only, that all Power Smart consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days for all Power Smart Products, if the tool is used for professional or commercial use.
