Amada AMPS01 Instruction Manual

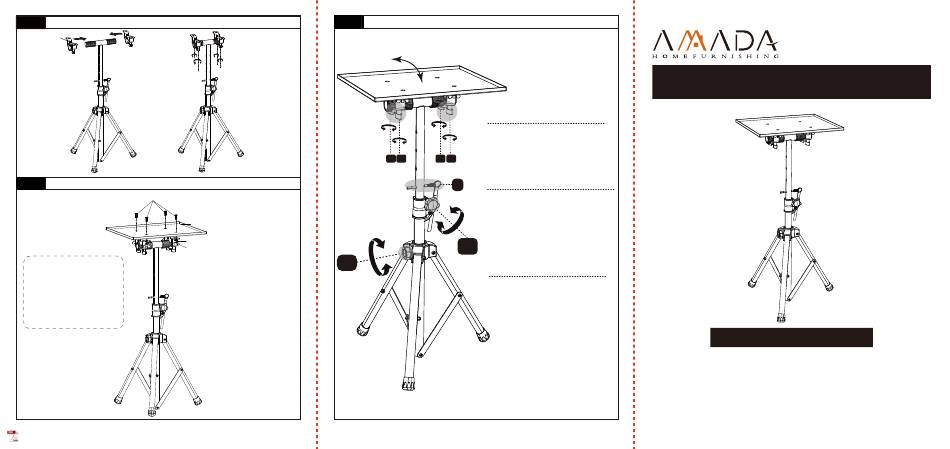

Step 2 Secure the Metal Clamps into the Middle of the Rubber Grips
D
Step 3 Secure the Tray to the Metal Clamps
F
B
G
E
Note:
● The holes in the metal
clamp should be aligned
with the holes on the tray.
●
Do not tighten the bolts
[F] until all of them are in
right positions.
04
Step 4 Adjust the Tilt Angle and the Height
Tilt Adjustment
Tilt Adjustment of Tray
Slightly loosen the tilt adjustment knobs
[T] for better to adjust the height. When
you adjust the tray to your desired tilt
angle, tighten the knobs [T] to secure
T T T T the height in place.
Height Adjustment of Tray Support Leg
S
1. Remove the safety pin [S] from the
tray support leg.
2. Slightly loosen the height adjustment
knob [H1] for better to adjust the height.
3. When you adjust the tray support leg
to your desired height, tighten the knob
[H1] and insert the safety pin [S] into the
H1
hole of the tray support leg.
H2
Height Adjustment of Tripod Stand
1. Slightly loosen the height adjust-
ment knob [H2] for better to adjust the
height of the tripod stand.
2. When you adjust the tripod stand to
your desired height, tighten the knob
[H2] to secure the height in place.
05
Tripod Stand Instruction Manual
Model: AMPS01/AMPS01K
Thank you for choosing this AMADA product! At AMADA we
strive to provide you with the best quality products and ser-
vices in the industry. Should you have any issues, please don't
hesitate to contact us at amada_supportus@163.com(US/CA)
V3.0
