Supplies4Heat CORNEL Fitting Instructions

CORNEL
Fitting Instructions

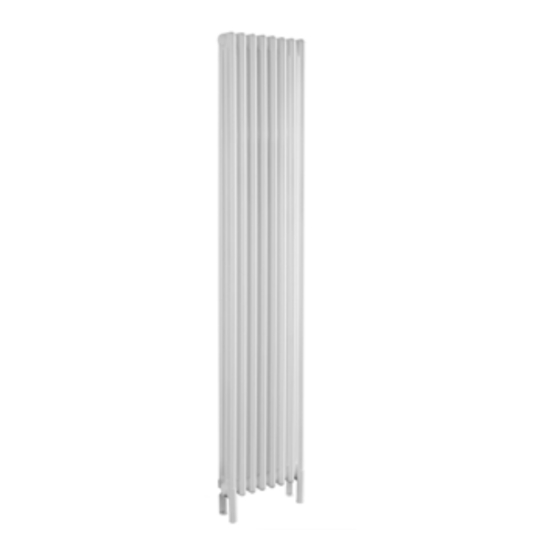

Steel Multi Column Radiator, White RAL 9016
Horizontal and Vertical
Please read these instructions and terms and conditions carefully
prior to installation. Failure to do so may invalidate the warranty.

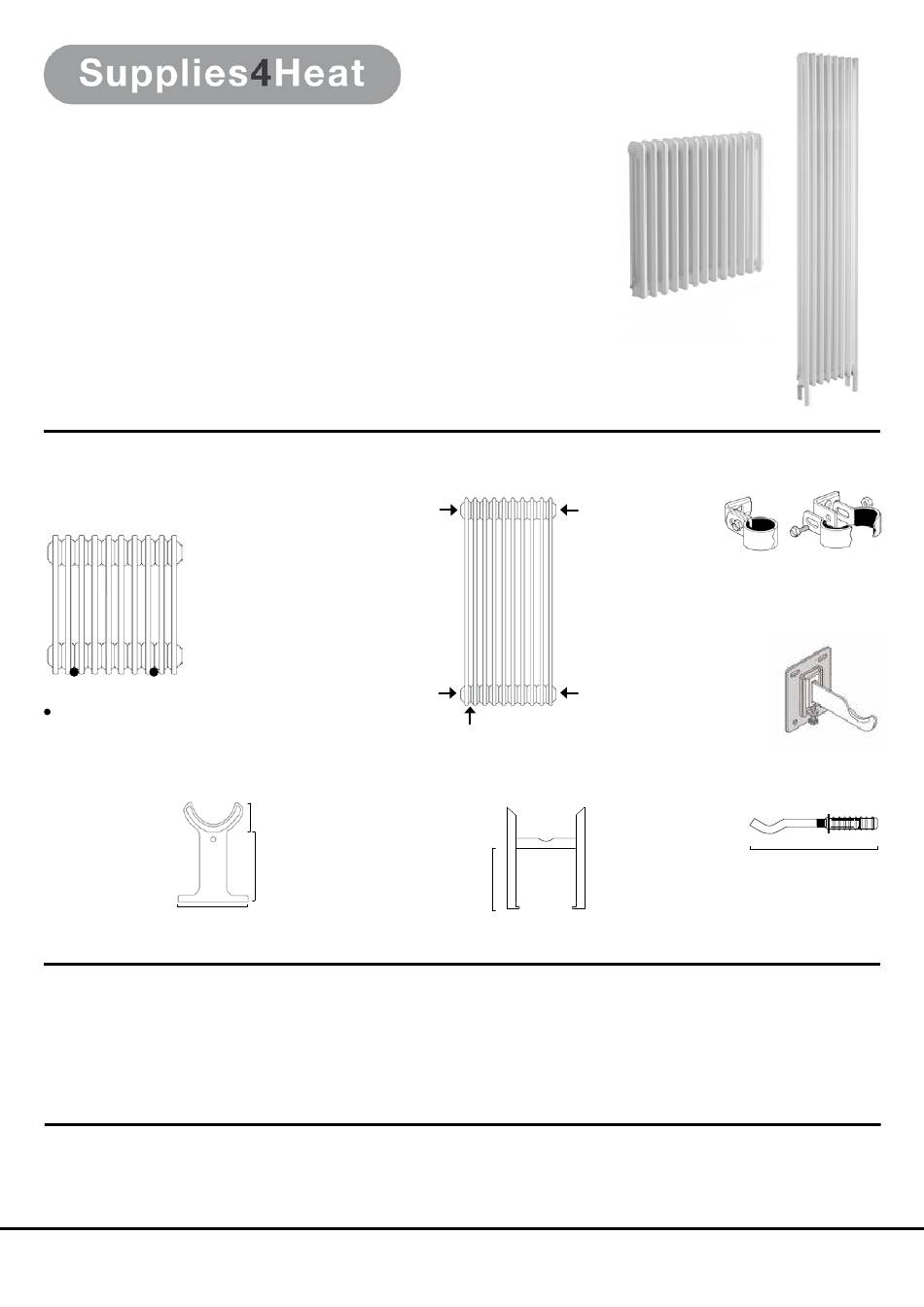

Drawings
Drawing 1 - Bracket Positions
Wall Ties should be
logically positioned to
x x
prevent Steel Multi Column
from falling away from
the wall, usually in line
with Wall Brackets. If more
than 2 brackets have been
supplied these should be
spaced evenly.
= typical Wall Bracket positions
x = typical Wall Tie positions
Drawing 4
Floor Mount
If ordered position
evenly between
sections beneath the
radiator.
104mm
Pipe Centres
Pipe centres left to right
Pipe centres from wall
1. Unpack & Inspect
This product should have reached you in perfect condition. Please carefully unpack and inspect this radiator and all fittings. Your point of purchase must be notified
of any shortages or damage within 28 days of delivery. For further information please see terms and conditions on reverse.
www.supplies4heat.co.uk
NCORN1.2
Drawing 2 - Steel Multi Column Orientation
Blanking
plug
Flow
30mm Drawing 5
Slip on Feet
If ordered slip on
105mm
desired sections
evenly beneath
radiator.
= width of radiator plus valves.
= 2 column = 66mm - 76m m, 3 column = 87mm - 97mm, 4 column = 107mm - 117mm
Air vent
Return
Diverter position
120mm
01342 306880
Drawing 3 - Wall Tie Assembley
wall ties adjust
from 33mm - 43mm
Drawing 4
Stud Wall Brackets
See drawing for
bracket positioning.
Pipe Centres
2 Column = 53mm
3 Column = 75mm
4 Column = 95mm
Drawing 6
Wall Brackets
See drawing for
Bracket Lengths
bracket positioning.
2 column = 170mm
3 column = 190mm
4 column = 23mm
