BEAUFORT
Fitting Instructions

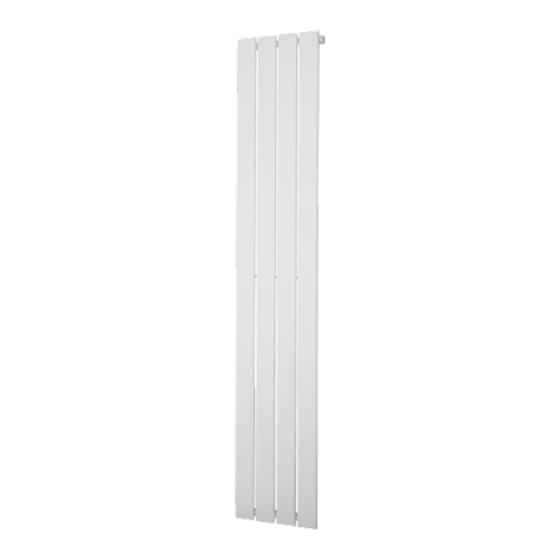

Steel Radiator in White RAL 9016
70mm Flat Tube, 30mm Round Collectors
Please read these instructions and terms and conditions carefully
prior to installation. Failure to do so may invalidate the warranty.
Drawings
Pipe Centres
Pipe centres left to right
Pipe centres from wall
Depth from wall
1. Unpack & Inspect
This product should have reached you in perfect condition. Please carefully unpack and inspect this radiator and all fittings. Your point of
purchase must be notified of any shortages or damage within 28 days of delivery. For further information please see terms and conditions
on reverse.
www.supplies4heat.co.uk
BEAUV1.3
Vertical
Bracket Positions & Measurements
Single
=
width plus valves
=
55mm - 65mm
=
79mm - 89mm
Double
width plus valves
67mm - 77mm
91mm - 101mm
= typical bracket fixing positions
01342 306880
Advertisement
Related Manuals for Supplies4Heat BEAUFORT Vertical
Summary of Contents for Supplies4Heat BEAUFORT Vertical
- Page 1 This product should have reached you in perfect condition. Please carefully unpack and inspect this radiator and all fittings. Your point of purchase must be notified of any shortages or damage within 28 days of delivery. For further information please see terms and conditions on reverse. www.supplies4heat.co.uk 01342 306880 BEAUV1.3...
- Page 2 • Spirit level Diagram 2 (double version) 3. Mark Bracket Positions Beaufort vertical singles use clamp style brackets that can be positioned on the collector to suit the installation, although we recommend that they are fitted in the locations suggested in the technical drawings on the previous page.
