Broadcast Electronics STXe Series Technical Manual

2 & 3 kw fm transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Broadcast Electronics
th
4100 North 24
Street, Quincy, Illinois 62305 USA • Phone (217) 224-9600 • Fax (217) 224-9607 • www.bdcast.com • bdcast@bdcast.com

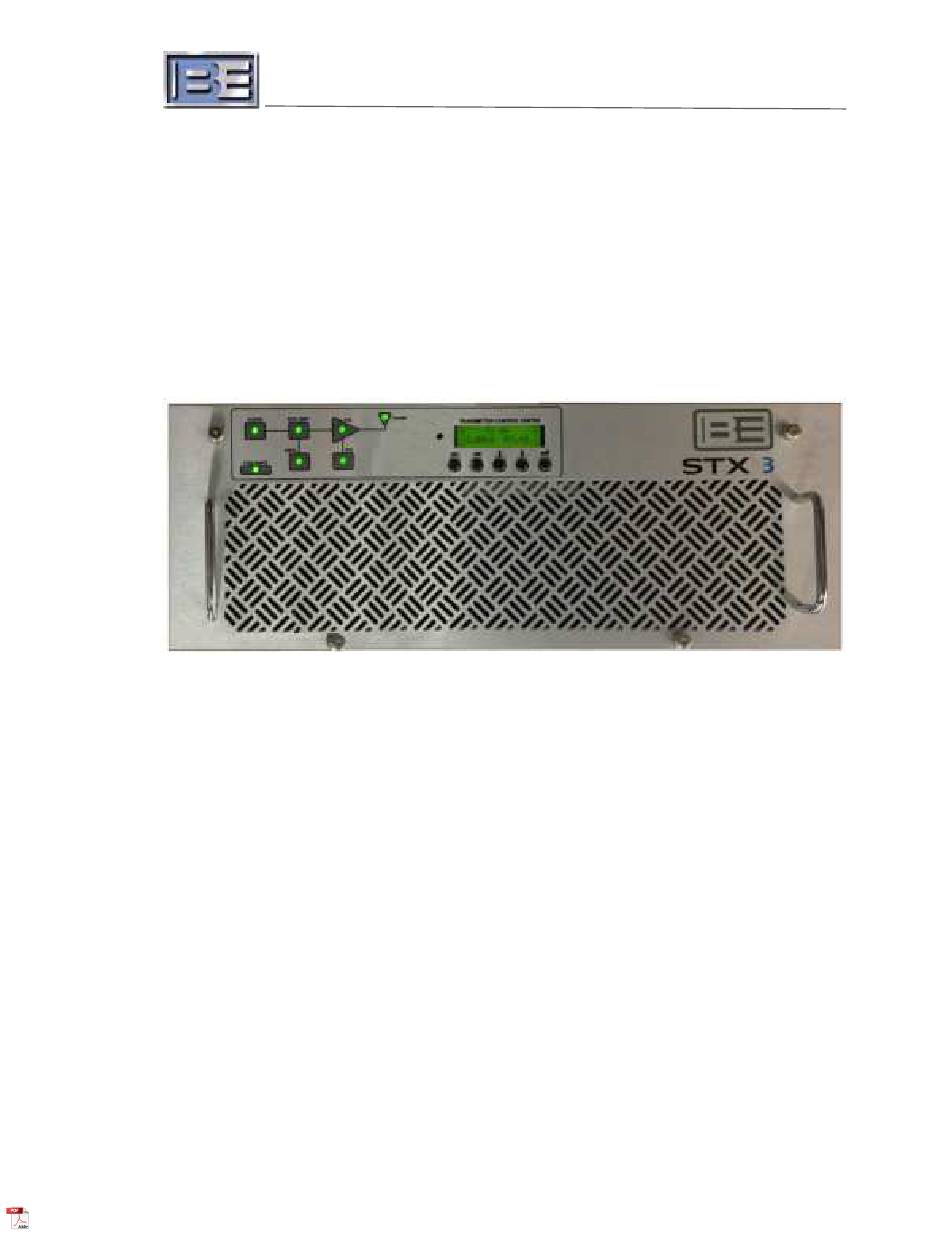

STXe Series
2 & 3 kW
FM Transmitter
Technical Manual
597-40633
Revision B
August 24, 2021
