EAW CAM60 Specification Sheet

DESCRIPTION
The CAM60 is designed for continuous duty in speech, music,
paging, and sound reinforcement applications demanding high
performance, flexible features, and rugged dependability. Each of
the four, actively balanced, mic/line inputs have combination XLR-
1/4 in input jacks and a sensitivity switch for line level, mic level, or
mic-level with 24 V DC phantom power. Aux stereo and telephone
paging inputs are also provided as well as a signal processing loop.
Input 1 has voice-activated priority over Inputs 2 to 4 and the Aux
Input. Inputs 1 to 4 have switch-activated priority over the Aux input.
The Telephone Paging input has voice-activated priority over all
inputs. The front panel includes Mic/Line input, Aux, and Master level
controls, as well as bass and treble. An LED meter indicates signal
strength and output overload. An internal 1 watt amplifier with level
control allows monitoring the Aux input.
The CAM60 provides outputs for 4 ohm loads and for 25 V, 70 V, and
100 V distributed systems. The output stage has smart circuitry to
protect against permanent damage caused by overloading, shorts,
and extreme temperatures. The CAM60 operates on 115 V or 230 V
AC mains determined by a voltage select switch. A 24 V DC power
input allows connecting backup battery power with automatic AC to
DC switchover. Five year warranty.
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
5 INPUT x 1 OUTPUT 60 W MIXER-AMPLIFIER
TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 1 of 2

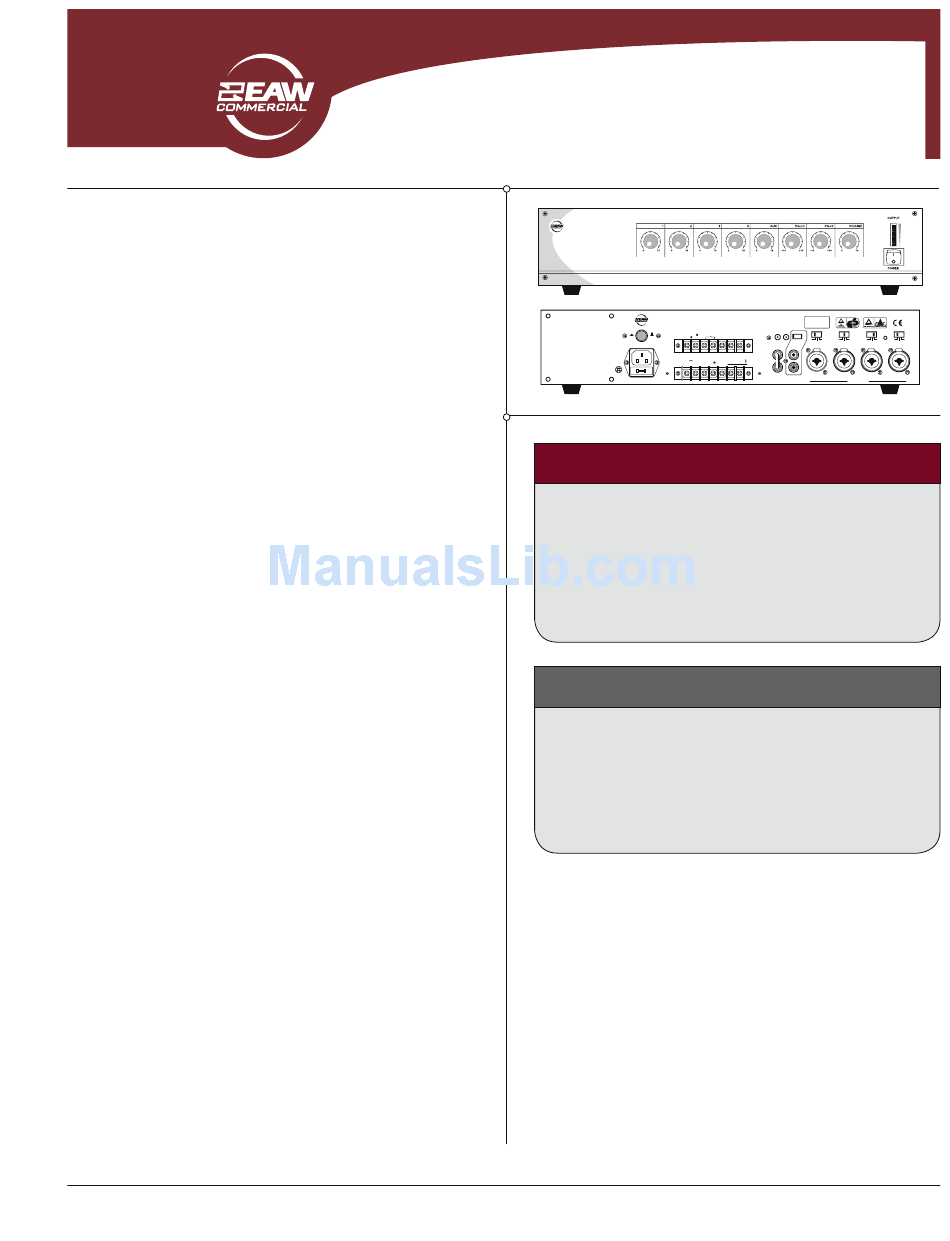

CAM60
CAM60-MIXER AMPLIFIER
CAM60-MIXER AMPLIFIER
© 2004 LOUD TECHNOLOGIES INC.
"EAW" IS A REGISTERED TRADEMARK
OF LOUD TECHNOLOGIES INC.
DC SW
1W 8 PRIORITY T R
+ -
ON OFF TEL PAGING
115VAC/230VAC ~ 60Hz/50Hz
DC 24V
- + COM 4 25V 70V 100V
GND
Features
• Discrete component 60 W power amplifier
• Signal processing loop
• Multiple priority override circuits
• 2 rack unit mounting kit included
Applications
• Paging Systems • Houses of Worship
• Hotel and Ballrooms • Meeting Rooms
• Schools • Offices
• Foreground/Background Music Systems
CAUTION:
ELECTRIC SHOCK HAZARD
DO NOT REMOVE COVER.
REFER SERVICING TO
QUALIFIED PERSONNEL.
SEE INSTRUCTION MANUAL.
TEL MONITOR
VOL VOL 1 2 3 4
G
LINE MIC LINE MIC LINE MIC LINE MIC
1: for CD
2: for Tuner PHANTOM PHANTOM PHANTOM PHANTOM
PRE 3: for Tape 24V 24V 24V 24V
4: for AUX IN
OUT
R
L
MAIN
INPUT 4 INPUT 3 INPUT 2 INPUT 1
IN
BALANCED
Part No. SW0139 Rev. B 05/07
