BAYLED LIBRA RGB Installation Manual

LIBRA RGB
INSTALLATION GUIDE
• Mains power must be switched off before installing products.
• The connection, installation, commissioning and assembly operations of the products
must be performed by qualified technicians.
• Do not install wet, deformed or defective products and equipments,
do not provide power, please contact the nearest technical service.
• Install the products only in accordance with the connection patterns specified
in the relevant Specificiation Sheet.
• Do not open or attempt to repair the products and connection equipments.

PACKING CONTENTS

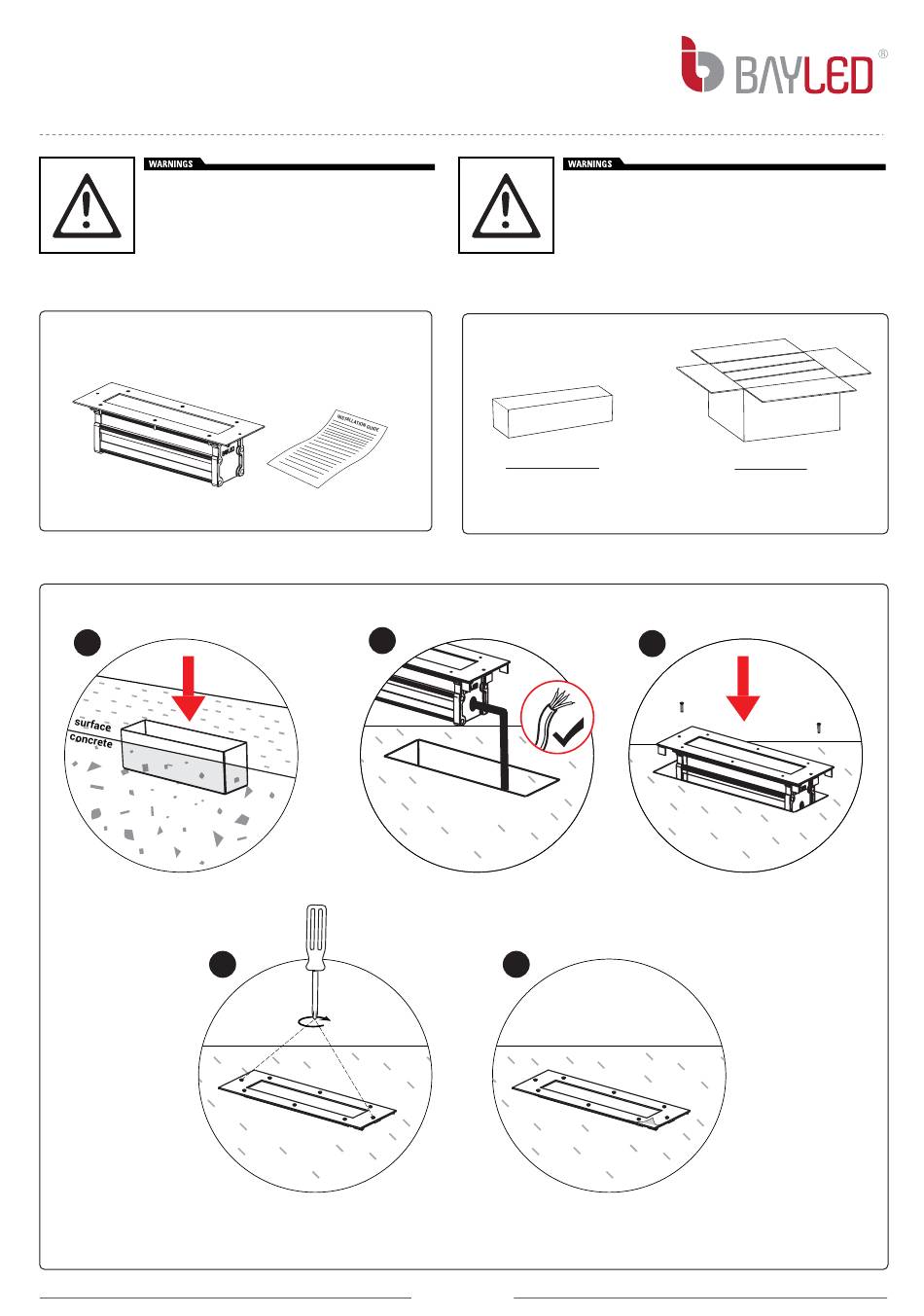

INSTALLATION

1
2
4
• Do not open extra holes on products for mounting and protect products from impacts.
• Do not install the products except as described below.
• Different installation of products may cause products to malfunction or hazardous conditions.
• Use recommended mounting equipments for products.
• This product is not suitable for indoor use. Electric shock may pose a risk of fire or combustion.
• Please follow the steps below when installing the products
BOX DIMENSION
Product Box Sizes
30cm : 140 x 345 x 120 mm
50cm : 140 x 575 x 120 mm
100cm : 140 x 1040 x 120 mm
Electrical connection details
on next page.
5
Remove the
foil on product.
w ww.bay le d.e u
w w w. bayled .eu
(height x width x depth)
Package Sizes
30cm: 300 x 360 x 260 mm
50cm: 300 x 600 x 260 mm
100cm: 140 x 1050 x 265 mm
3
(includes 4pcs)
(includes 4pcs)
(includes 2pcs)
