BAYLED ORCA 18 RGBWA Installation Manual

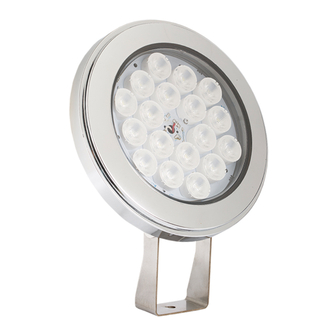

ORCA 18 RGBW(A) / ORCA PAR56 RGBW(A)
INSTALLATION GUIDE
• Mains power must be switched off before installing products.
• The connection, installation, commissioning and assembly operations of the products
must be performed by qualified technicians.
• Do not install wet, deformed or defective products and equipments,
do not provide power, please contact the nearest technical service.
• Install the products only in accordance with the connection patterns specified
in the relevant Specificiation Sheet.
• Do not open or attempt to repair the products and connection equipments.

PACKING CONTENTS

ORCA 18

INSTALLATION

1
4
ORCA PAR56
2
5
• Do not open extra holes on products for mounting and protect products from impacts.
• Do not install the products except as described below.
• Different installation of products may cause products to malfunction or hazardous conditions.
• Use recommended mounting equipments for products.
• This product is not suitable for indoor use. Electric shock may pose a risk of fire or combustion.
• Please follow the steps below when installing the products

BOX DIMENSION

(height x width x depth)
Product Box Size
150 x 200 x 200 mm
w ww.bay le d.e u
w w w. bayled .eu
Package Size (includes 6pcs)
430 x 590 x 320 mm
3
6
Electrical connection details
on next page.
