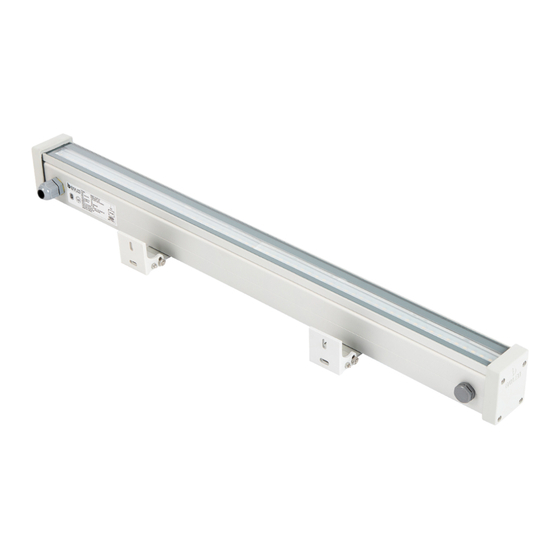

BAYLED ARSEN RGB Installation Manual

ARSEN RGB
INSTALLATION GUIDE
• Mains power must be switched off before installing products.
• The connection, installation, commissioning and assembly operations of the products
must be performed by qualified technicians.
• Do not install wet, deformed or defective products and equipments,
do not provide power, please contact the nearest technical service.
• Install the products only in accordance with the connection patterns specified
in the relevant Specificiation Sheet.
• Do not open or attempt to repair the products and connection equipments.

PACKING CONTENTS

INSTALLATION

1
4
BOX DIMENSION
Product Box Sizes
61cm: 80 x 660 x 95 mm
90cm: 80 x 960 x 95 mm
120cm: 80 x 1280 x 95 mm
2
4
w ww.bay le d.e u
w w w. bayled .eu
• Do not open extra holes on products for mounting and protect products from impacts.
• Do not install the products except as described below.
• Different installation of products may cause products to malfunction or hazardous conditions.
• Use recommended mounting equipments for products.
• This product is not suitable for indoor use. Electric shock may pose a risk of fire or combustion.
• Please follow the steps below when installing the products
(height x width x depth)
Package Sizes
61cm: 250 x 670 x 300 mm
90cm: 250 x 980 x 300 mm
120cm: 250 x 1270 x 300 mm
3
5
(includes 12pcs)
(includes 12pcs)
(includes 12pcs)
