7.2 Back View
Ref. Description
U3
LM66100DCKR Ideal Diode
U8
KSZ9031RNXIA Gigabit Ethernet Transceiver IC
U11 SE050C2HQ1/Z01SDZ IoT Secure Element
U15 NX18P3001UKZ Bidirectional power switch IC
SIT1532AI-J4-DCC-32.768E 32.768KHz MEMS
Y2
Oscillator IC
Q1
2N7002T-7-F N-Channel 60V 115mA MOSFET
11 / 21

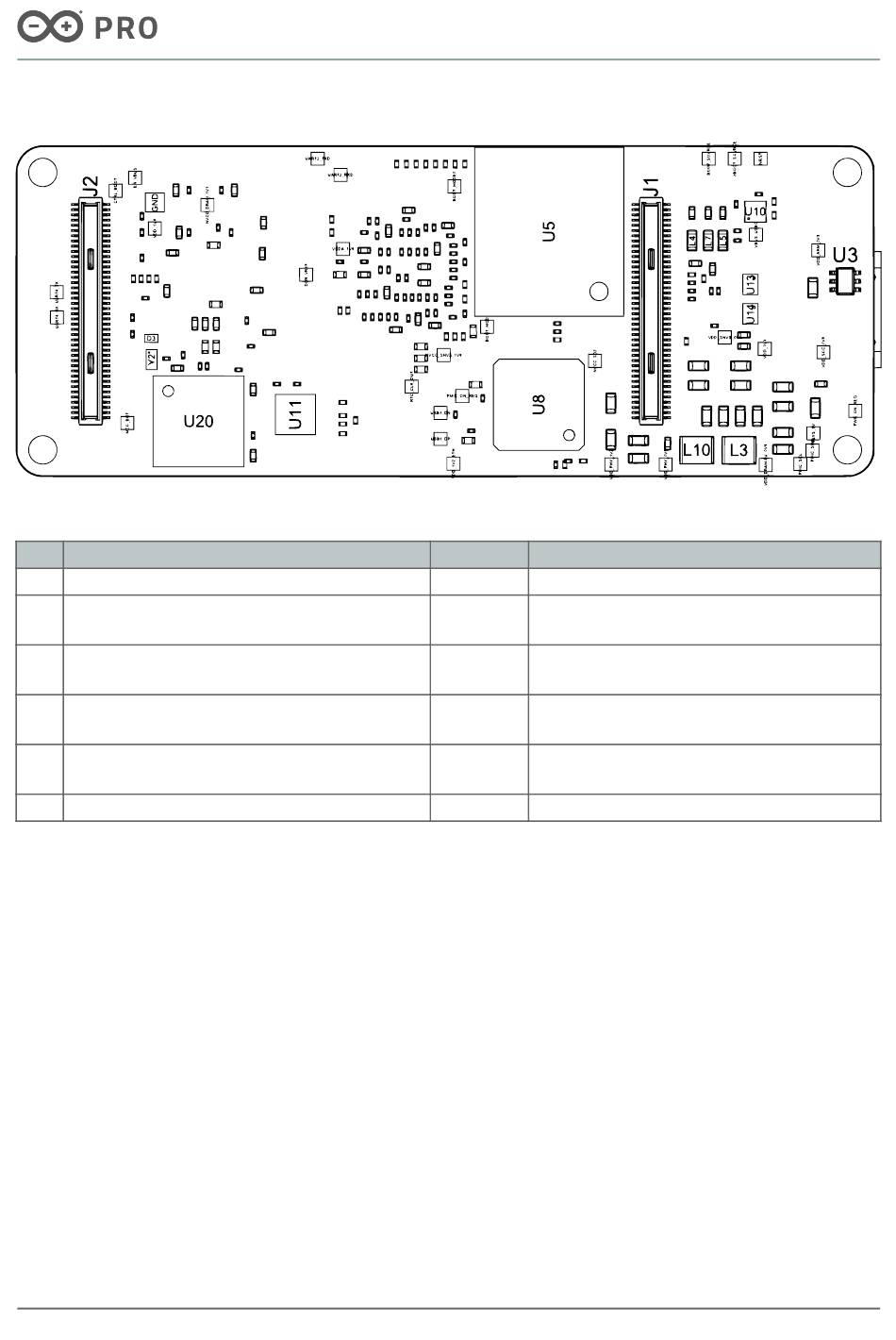

Back view of Portenta X8 Topology
Ref.
U5
U10
U12,
U13,U14
U20
J1, J2
Arduino® Portenta X8
Arduino® Portenta X8
Description
FEMDRW016G 16GB eMMC Flash IC
FXMA2102L8X Dual Supply, 2-Bit Voltage
Translator IC
PCMF2USB3B/CZ Bidirectional EMI
Protection IC
STM32H747AII6 Dual ARM® Cortex® M7/M4
IC
High density connectors
Modified: 25/03/2022
