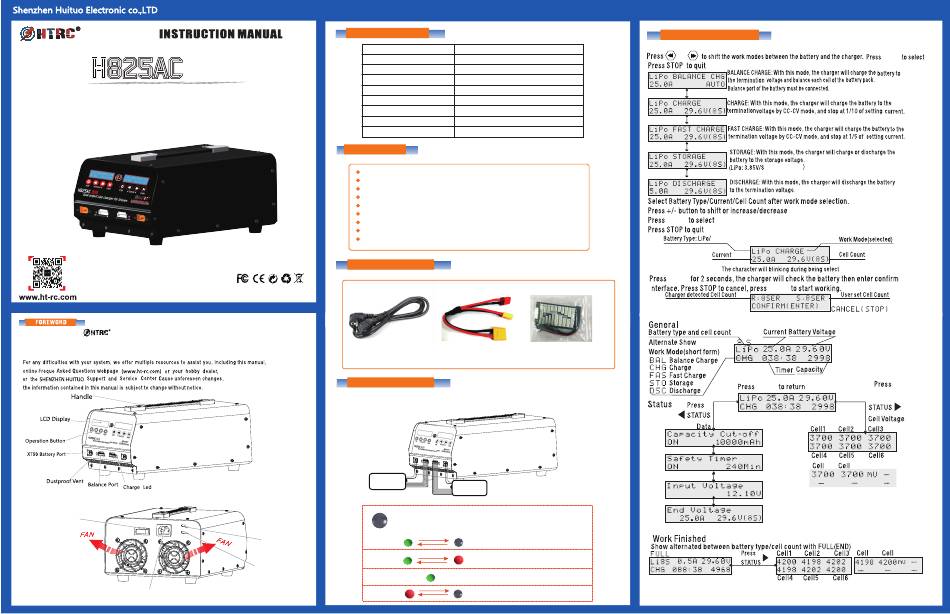

HTRC H825AC DUO Instruction Manual

00AC/ D C DUO
H825AC
DUO DUO

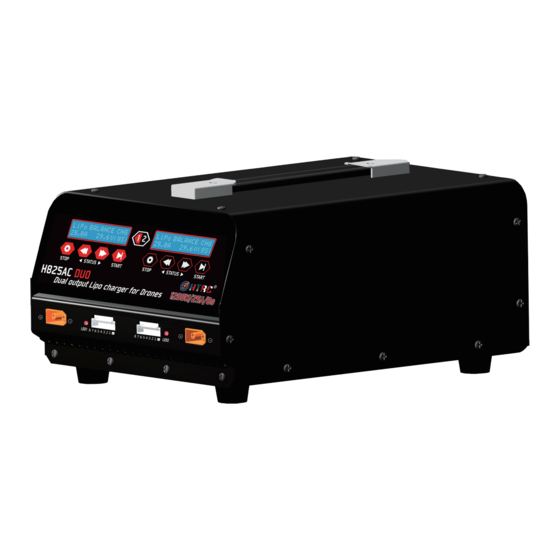

Dual output Lipo charger for Drones
1200W/25A/8s
Thank you for choosing H825AC DUO dual LiPo/LiHv charger.
This charger is capable of balance charging 2 packs of 8 cell batteries simultaneously. It is specifically
designed for big battery pack. There are Five working modes, balance charge, storage charge，
discharge and fast (suitable for batteries with no balance lead).
Power Swith
AC 100-240V
PC Link 1
ON
OFF
PC Link 2
AC 100-240V
Dual output Lipo charger for Drones
SPECIFICATION
AC Input Voltage
Charge Power
Discharge Power
Charge Current Range
Current drain for balancing
Lipo/LiHV cell count
Charging Modes
Size
Weight
Features
2x16 LCD screen.
Real time charging/ discharging status display
Battery voltage meter
Battery internal resistance meter
Support charging 2 packs of 8s LiPo/LiHV batteries simultaneously
Memorizing last charging current
Four working modes: balance charge, storage, charge,discharge,fast charge
Firmware upgrade via USB port
Maximum safety: short circuit protection, reverse polarity protection & over heat protection.
Package Accessories
Made in China
，
AC cord x1pcs
Battery connection
Battery connection: Please connect your batteries to H825AC charger as below:
(Note: Be aware that the Lithium battery to be charged should be 1-8 cells. Make sure the battery balance lead and
charging lead are connected correspondingly to the charger.
8S LiPO/LiHV Battery
Add the indicator led,the charge is more intuitive
Charging
PC Link1
Standby
PC Link2
Full
Errors
100-240V
1200W(600Wx2)
120W/(60WX2)
1.0-25AX2
1.2A
1-8cellsX2
Balan ce /Storage/Charge/Discharger /Fast
274x209x120mm
5kg
Adapter Boardx2pcs
XT90 x2pcs
8S LiPO/LiHV Battery
Green light flashing
The red light and green light
alternately flashing
The light solid green
The red light flashing
PROGRAM of LiPo/LiHV
and
LiHV : . 3 9 V/S
START
LiHV
START
START
START
7
START
8
7 8
