Yealink SIP-T57W Quick Reference Manual

14
13
12
7
8
9
10
11
Power LED Indicator: Indicates call
1
status, message status and phone's
system status.
Touch Screen: Allows you to select
2
items and navigate menus on the
touch-sensitive screen. Tap to select
and highlight screen items. Shows
information about calls, messages,
time, date and other relevant data.
Headset Key: Toggles and indicates
3
the headset mode. The key LED
glows green when headset mode is
activated.
Mute Key: Toggles and indicates mute
4
feature. The key LED glows red when
the call is muted.
Redial Key: Redials a previously dialed
5
number.
Speakerphone Key: Toggles
6
and indicates the hands-free
(speakerphone) mode. The key LED
glows green when the hands-free
(speakerphone) mode is activated.
Transfer Key: Transfers a call to
7
another party.
Hold Key: Places a call on hold or
8
resumes a held call.
Message Key: Accesses voicemail.
9
QUICK REFERENCE GUIDE
1
2
3
4
5
Volume Key: Adjusts the volume of
10
6
the handset, headset and speaker.
Keypad: Provides the digits and
11
special characters in context-sensitive
applications.
Speaker: Provides hands-free
12
(speakerphone) audio output.
Reversible Tab: Secures the handset
13
in the handset cradle when the phone
is mounted vertically.
Hookswitch: Picking up the handset
14
from the handset cradle, the
hookswitch bounces and the phone
connects to the line. Laying the
handset down on the handset cradle,
the phone disconnects from the line.
Placing a Call
Using the Handset:
1. Pick up the handset.
2. Enter the number, and then tap Send.
Using the Speakerphone:
1. With the handset on-hook, press
2. Enter the number, and then tap Send.
Using the Headset:
1. With the headset connected, press
to activate the headset mode.
2. Enter the number, and then tap Send.

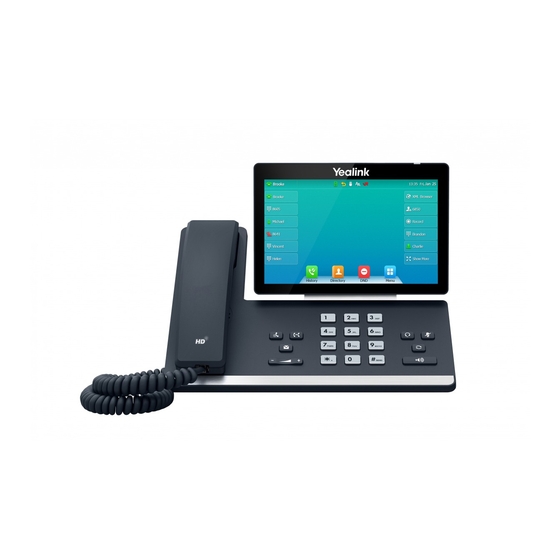

Yealink SIP-T57W
Note: During a call, you can alternate
between the headset, hands-free
speakerphone and handset modes
by pressing the Headset key, the
Speakerphone key or by picking up
the handset. Headset mode requires a
connected headset.
Answering a Call
Using the Handset:
Pick up the handset.
Using the Speakerphone:
Press .
Using the Headset:
Press .
Note: You can reject an incoming call by
tapping Reject.
Ending a Call
Using the handset:
Hang up the handset or tap End Call.
.
Using the Speakerphone:
Press or End Call.
Using the headset:
Press End Call.
