NEUTRIK opticalCON FOCD-STC Cleaning Instruction

R
CLEANING INSTRUCTION
opticalCON Chassis Connector
Cleaning Adapter FOCD-STC & FOID-STQC
LASER
1
The sealing shutter mechanism of the opticalCON avoids contamination of the LC ferrule locked inside.
The dust-proof design reduces maintenance intervals to a minimum; if nevertheless necessary,
follows the maintenance procedure below to avoid damages on the due to inpropes cleaning.
Cassis Cleaning / Inspection
Intervall:
Tools:
A
Video probe tip
B
Dry Cleaner
BDA 636 V1
®
CAUTION:
Laser radiation, do not look directly into beam of light!
every 500 matings recommended
®
Neutrik Chassis Cleaning Adapter:
Dry Cleaner:
Optical fiber video probe
®
FOCD-STC / FOID-STQC
FOCD-DC125, FOCD-DCM

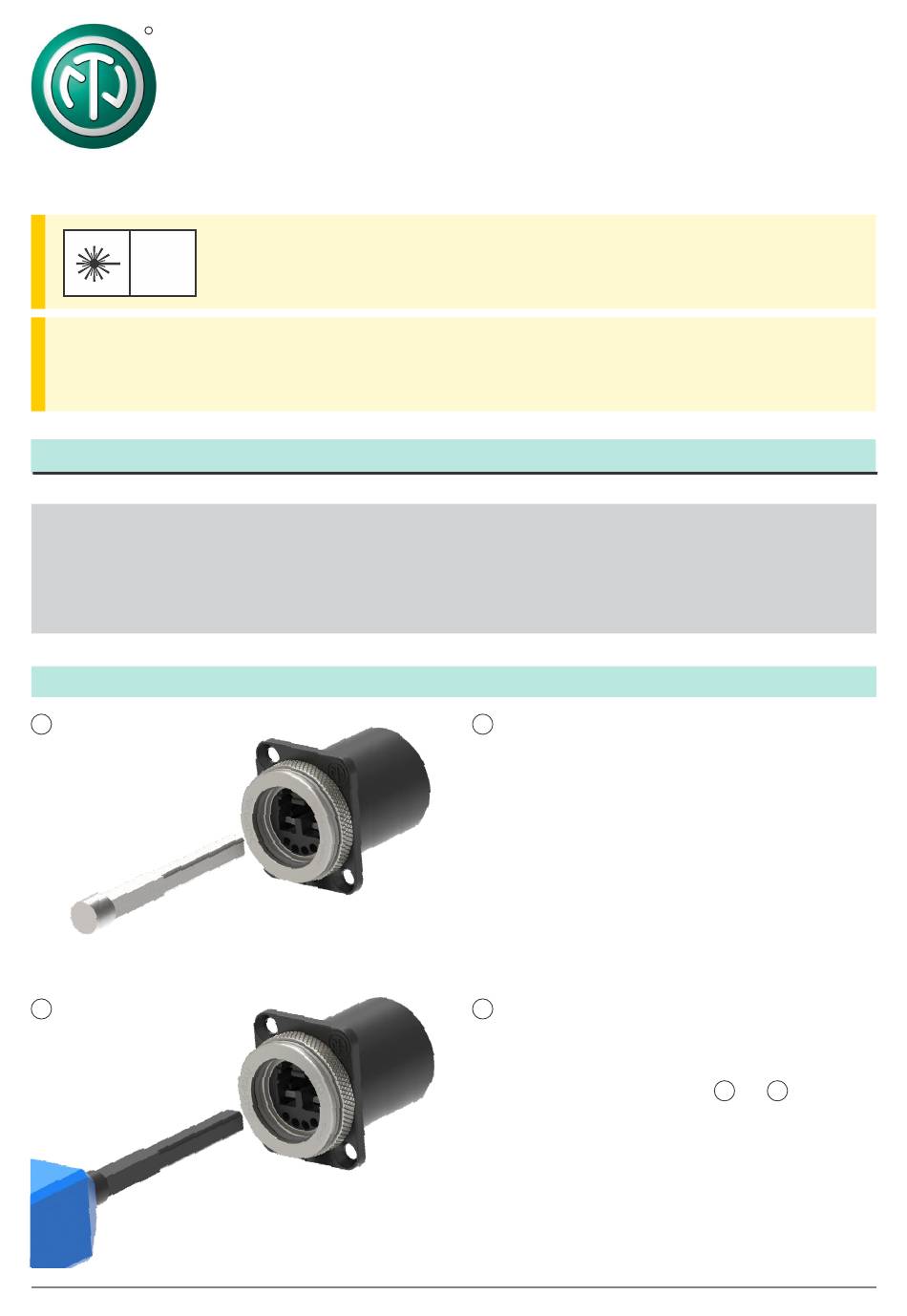

1.
opticalCON DUO Chassis Cleaning ®
Insert the FOCD-STC in to the Neutrik opticalCON
A
NO2-4FDW-A-* chassis.
Use the appropriate tip for the video probe
according to the matrix on the last page.
Then inspect the LC surface.
B After inspection clean the LC surface with the Dry
Cleaner 1.25 mm.
Check the condition of the LC ferrule surface again
and if necessary, repeat step A and B .
®
Page 1
