ASSEMBLY INSTRUCTION
etherCON
A
B
D1
STANDARD
VERSION
or
D2
SPECIAL
VERSION
BDA 132
|
NE8MC-1, Ruggedized RJ 45
Data Connector with X Series bushing
B1
C
A

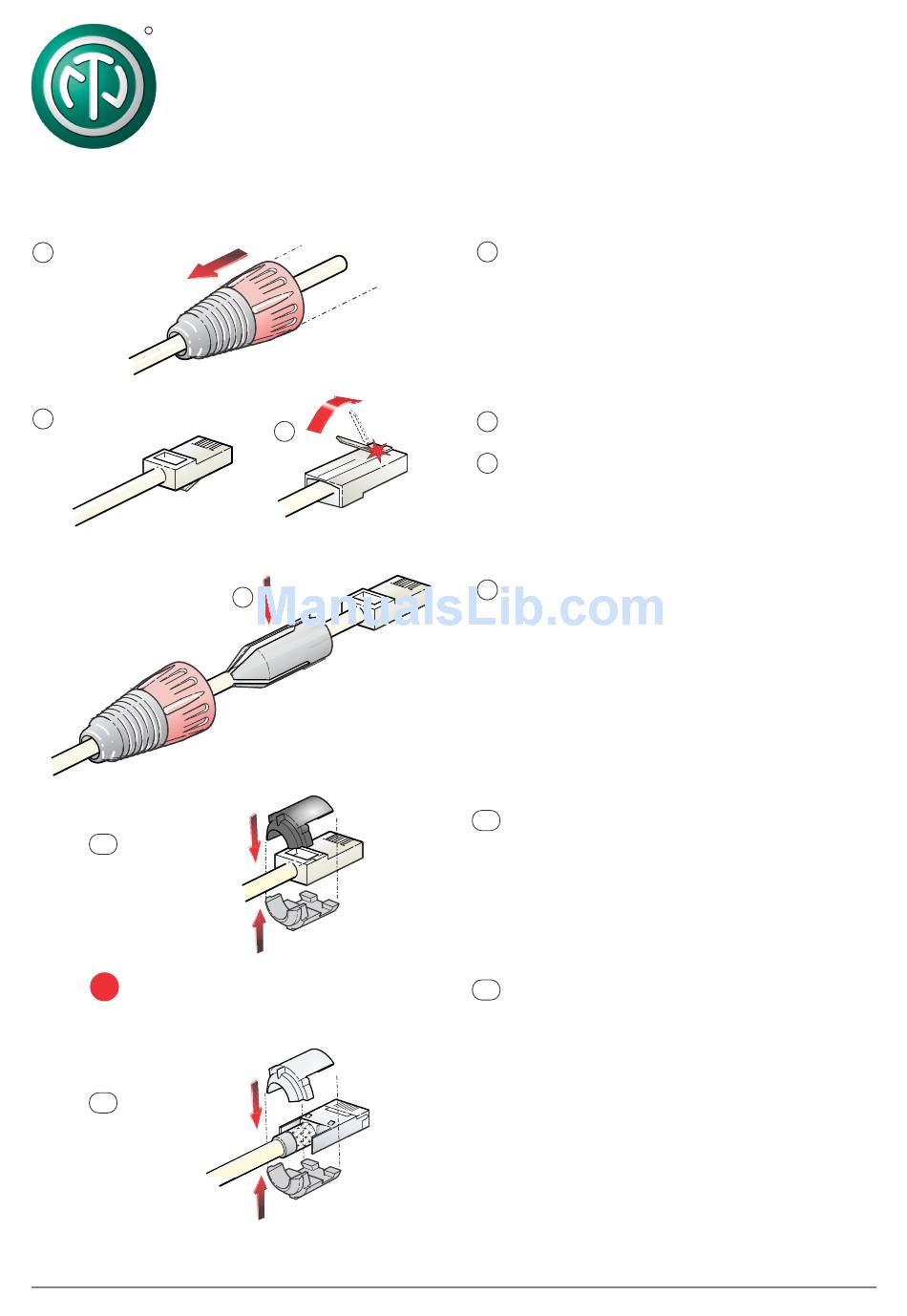

Slide the bushing over the cable.
Assemble the RJ45 plug on the cable.
B
Cut off the release tab of RJ45 plug.
B1
Put the chuck onto the cable.
C
D1
Standard version:
Position the black & grey adapter onto
the connector.
or
Special version:
D2
Position the white & grey adapter into
the port.
Page 1
