R

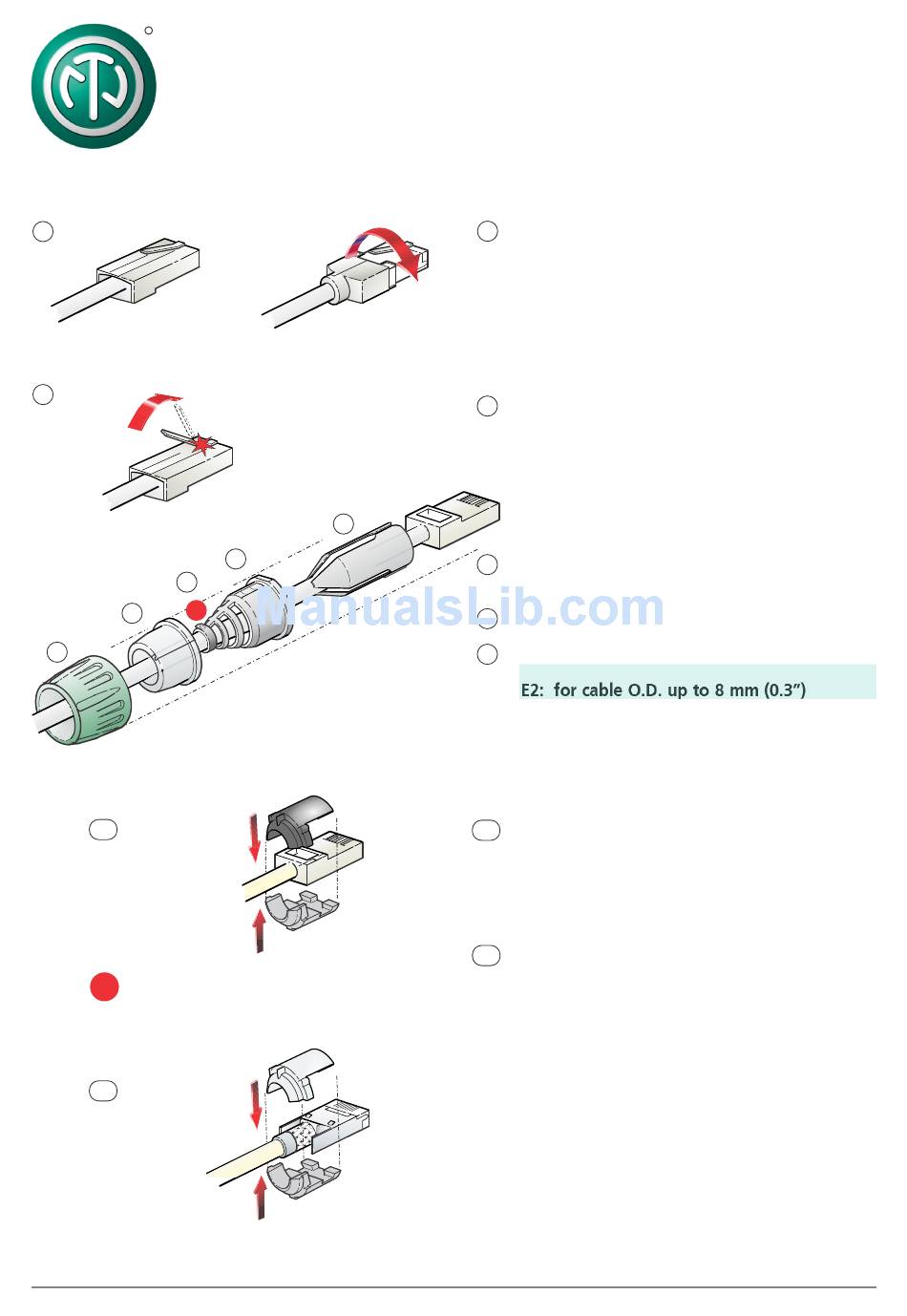

ASSEMBLY INSTRUCTION
etherCON
A
STANDARD VERSION
B
E
or
E2
C
F1
STANDARD
VERSION
or
F2
SPECIAL
VERSION
BDA 100
|
NE8MC, Ruggedized RJ 45
Data Connector
SPECIAL VERSION
D
E1
A
Special version: remove the cover
B
Cut off the release tab of RJ45 plug
C
Slide the bushing over the connector onto the
cable.
D
Put the chuck onto the cable.
E
Put the suitable boot on the cable:
- E1: for cable O.D. up to 5 mm (0.2")
- E2: for cable O.D. up to 8 mm (0.3")
F1
Standard version:
Position the black & grey adapter onto the
connector.
F2
Special version:
Position the white & grey adapter into the port.
Page 1
