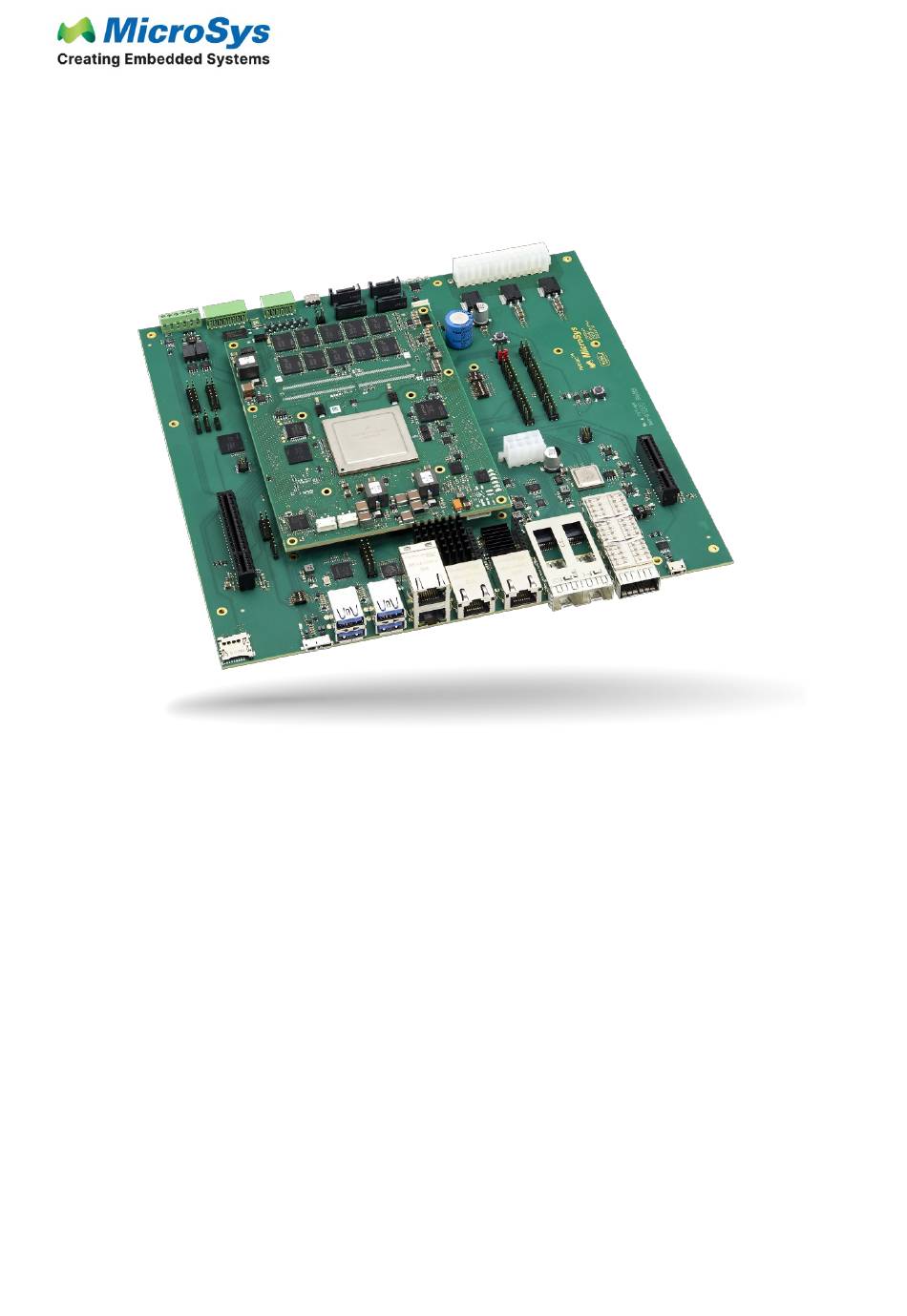

- Page 1 SBC-LX2160A User Manual (SBC-LX2160A based on CRX08 Revision 1) V 1.6...
-
Page 2: Table Of Contents
Processor NXP LX2160A ......28 7.1.5 SW5 (Boot Configuration) ......56 JTAG Chain ..........28 7.1.6 SW6 (Board Configuration) ......57 Reset Structure ........... 28 Expansion / Development Headers ..... 57 miriac SBC-LX2160A User Manual V 1.6 2/71 © MicroSys Electronics GmbH 2021... - Page 3 ST45 (SPI_SRVC) ........62 Table of Figures ........... 69 7.2.12 ST46 (Clocks)..........63 History ............71 7.2.13 ST47 (Tamper Detect, RTC) ....... 63 7.2.14 ST48 (SoM Temperature Status) ....63 miriac SBC-LX2160A User Manual V 1.6 3/71 © MicroSys Electronics GmbH 2021...
-
Page 4: General Notes
Copyright MicroSys Electronics GmbH, January 2020 All rights reserved. All rights in any information which appears in this document belong to MicroSys Electronics GmbH or our licensors. You may copy the information in this manual for your personal, non-commercial use. -
Page 5: Offer To Provide Source Code Of Certain Software
This offer is valid to anyone in receipt of this information. MicroSys Electronics GmbH is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you... -
Page 6: Symbols, Conventions And Abbreviations
XXX+ denotes the positive signal of a differential pair denotes an optional not mounted or fitted part Table 1-2 Conventions miriac SBC-LX2160A User Manual V 1.6 6/71 © MicroSys Electronics GmbH 2021... -
Page 7: Introduction
Introduction 2 2 Introduction Thank you for choosing the MicroSys SBC-LX2160A Single Board Computer system. This manual should help you to get the best performance and details out all of its features. 2.1 Safety and Handling Precautions ALWAYS use the correct type and polarity of the power supply! -
Page 8: Short Description
(Type and brand may vary based on availability) ■ Power supply cable set ■ USB cable type A – mini B ■ Micro-SD-Card with U-Boot and root file system miriac SBC-LX2160A User Manual V 1.6 8/71 © MicroSys Electronics GmbH 2021... -
Page 9: Functional Coverage
✓ RTC backup Battery ✓ Manual Reset Button ✓ Reset / Power LEDs 1x red, 9x green ✓ User LEDs 4x RGB Table 2-2 Functional coverage miriac SBC-LX2160A User Manual V 1.6 9/71 © MicroSys Electronics GmbH 2021... -
Page 10: Quick Start Guide
TFTP server available for downloading within the network (Hint: may run on the same PC as the serial Terminal) ■ SD card as mass storage and/or boot media miriac SBC-LX2160A User Manual V 1.6 10/71 © MicroSys Electronics GmbH 2021... -
Page 11: Basic Operation
After Power-up, the green LEDs on the carrier and the module should light up and the red LEDs should be off. IF NOT, DISCONNECT THE UNIT FROM POWER AND CHECK FOR FAULTS! Figure 3-1 System setup example miriac SBC-LX2160A User Manual V 1.6 11/71 © MicroSys Electronics GmbH 2021... - Page 12 Quick Start Guide 3 miriac SBC-LX2160A User Manual V 1.6 12/71 © MicroSys Electronics GmbH 2021...
-
Page 13: Atf/U-Boot Startup
FSL_MDIO1 PHY@10: Firmware version: 0.3.10.0 88X3310 MAC Type USXGMII DPMAC4@usxgmii FSL_MDIO1 PHY@11: Revision 0x1a 11 1/1: ################################################################ ################################################################ ############################################################### FSL_MDIO1 PHY@11: Firmware version: 0.3.10.0 88X3310 MAC Type USXGMII miriac SBC-LX2160A User Manual V 1.6 13/71 © MicroSys Electronics GmbH 2021... - Page 14 Management Complex booted (version: 10.24.0, boot status: 0x1) Hit any key to stop autoboot: => The exact output may vary, depending on U-Boot and MPX-LX2160A module versions in use. miriac SBC-LX2160A User Manual V 1.6 14/71 © MicroSys Electronics GmbH 2021...
-
Page 15: Linux
Pressing the SW2 switch will force a RESET to carrier and module. RESET will also occure if one oft he carrier voltages is no in defined range. (12V, 2V5, 1V8, 1V5, 5V0, 1V3, 1V1, 0V88) miriac SBC-LX2160A User Manual V 1.6 15/71... -
Page 16: System Description
USB Hub USB 3.0 OTG Phy USB OTG connector type Micro-AB SATA 3.0 SATA up to 6Gbps SATA connector 1 3.0 SATA up to 6Gbps SATA connector 2 miriac SBC-LX2160A User Manual V 1.6 16/71 © MicroSys Electronics GmbH 2021... - Page 17 Serdes 1 Lane 4..7: 40 Gbps QSFP+ Transceiver XLAUI4 Gigabit Ethernet RGMII 1 10/100/1000 Mbps Transceiver Gigabit Ethernet RGMII 2 10/100/1000 Mbps Transceiver System JTAG JTAG 10 pin header Controller miriac SBC-LX2160A User Manual V 1.6 17/71 © MicroSys Electronics GmbH 2021...
- Page 18 System Description 4 SBC-LX2160A Power Management Primary Supply ATX power supply Separate 12V lane Backup Supply 0,47F / 5,5V Power Cap (RTC backup) Table 4-1 Feature Overview miriac SBC-LX2160A User Manual V 1.6 18/71 © MicroSys Electronics GmbH 2021...
-
Page 19: Mechanical Dimensions
Board is Micro ATX format with size 243,84 x 243,84 mm (9,6” x 9,6”). The following drawing shows the mechanical outline of the SBC-LX2160A assembly. Figure 4-1 mechanical drawing CRX08 carrier This drawing is not to scale. For 3D data files please contact MicroSys. miriac SBC-LX2160A User Manual V 1.6 19/71... -
Page 20: Connector Layout
System Description 4 4.4 Connector Layout Figure 4-2 connector layout CRX08 carrier miriac SBC-LX2160A User Manual V 1.6 20/71 © MicroSys Electronics GmbH 2021... -
Page 21: Connector References
CPU Control Signals Pin Header UART Pin Connector ✓ ST38 uController on LX2160A Module ✓ SWDIO Debug Pin Connector ST39 uController on LX2160A Module ✓ ST40 QSPI Emulator Pin Header miriac SBC-LX2160A User Manual V 1.6 21/71 © MicroSys Electronics GmbH 2021... -
Page 22: Power Supply
For more detaillied information on current ATX and other formfactors power supplies see: Intel Design Guide, Desktop Platform Form Factors power Supply (June 2018 Revision 002). miriac SBC-LX2160A User Manual V 1.6 22/71 © MicroSys Electronics GmbH 2021... -
Page 23: Input Power Connectors
Table 4-2 Pinout ATX Main-PWR (ST3) The additional 8 pin connector is providing power to the MPX-LX2160 SoM . Part Reference Manufacturer: Molex Type: 39299082 Mates with: 8 Pin Molex Mini-Fit miriac SBC-LX2160A User Manual V 1.6 23/71 © MicroSys Electronics GmbH 2021... - Page 24 +5V rail, it is recommended to connect an additonal load, e.g. 3 ½” Harddisk, to the power supply! Otherwise, the +3V3 rail may be unstable due to the ATX speficiation. miriac SBC-LX2160A User Manual V 1.6 24/71 © MicroSys Electronics GmbH 2021...
-
Page 25: Power Supply Structure
DC are enabled via a power switch, driven by the POWER_GOOD signal of the SoM. ■ All step-down converters are enabled by the MPX-LX2160A SoM POWER_GOOD signal. The following diagram summarizes the Power Supply structure: miriac SBC-LX2160A User Manual V 1.6 25/71 © MicroSys Electronics GmbH 2021... -
Page 26: Rtc Backup
10 mΩ shunt resistors (5 mΩ total) in the 12VDC rail. For automated power measurements, an I²C current sense amplifier with voltage sense (MAX9611AUB) is connected over the shunt. miriac SBC-LX2160A User Manual V 1.6 26/71 © MicroSys Electronics GmbH 2021... -
Page 27: Voltage Rail Monitoring
Table 4-5 Voltage monitoring limits (carrier) 4.6.7 Fuses The fuse F1 (ASMDC185F/33, 33V max, 1,85 A trip) protects the general purpose PLC output driver stage for connector ST43. miriac SBC-LX2160A User Manual V 1.6 27/71 © MicroSys Electronics GmbH 2021... -
Page 28: System Core, Boot Configuration And On-Board Memory
RESIN# (to module) is generated from the power rail monitoring by two quintuple voltage supervisors with push-button reset. RESIN# may also be forced by SW2. All devices on the carrier are reset if RESIN# or RESET_OUT# (from module) ist active. miriac SBC-LX2160A User Manual V 1.6 28/71 © MicroSys Electronics GmbH 2021... -
Page 29: Boot Configuration
(Signal Name) (Signal Name) LX2160A IIC1_SCL IIC1_SDA ↓ ↕ MACHXO3 J2 NTSX2102 J22 LTC4311 J58 SA56004ADP J59 SA56004CDP J61 SA56004EDP J62 NTSX2102 J63 PCF85063 J64 CAT24C128 J66 CAT24C128 J67 miriac SBC-LX2160A User Manual V 1.6 29/71 © MicroSys Electronics GmbH 2021... -
Page 30: I2C-6
The I²C bus 6 has the following layout (LVTTL 1.8V): Device (Signal Name) (Signal Name) LX2160A IIC6_SCL IIC6_SDA ↓ ↕ Module Connector I2C6_SCL ST1-H42 I2C6_SDA ST1-H43 ↓ ↕ TCA9544APWR J27 TCA9544APWR J35 Table 5-5 I²C-6 pin assignment miriac SBC-LX2160A User Manual V 1.6 30/71 © MicroSys Electronics GmbH 2021... -
Page 31: Peripherals
Serdes 2 Lane 6 SATA port 3 Serdes 2 Lane 7 SATA port 4 Serdes 3 Lanes 0…7 PCIe x8 to PCIe slot 2 Table 6-1 SerDes usage miriac SBC-LX2160A User Manual V 1.6 31/71 © MicroSys Electronics GmbH 2021... -
Page 32: Lan Connections
LAN Sockets have a standard layout for 1000-BaseT Ethernet, i.e. the pairs are 1-2, 3-6, 4-5 and 7-8. Pair D-A+ D-A- D-B+ D-C+ D-C- D-B- D-D+ D-D- Table 6-2 LAN Gigabit Ethernet connector pairs (LAN1, LAN2) miriac SBC-LX2160A User Manual V 1.6 32/71 © MicroSys Electronics GmbH 2021... -
Page 33: Lan3, Lan4: 2.5/5/10 Gbps 10/100/1000 Mbps (Rj45)
AM10 SD1_TX1_P SD1_TX1_N ← ST2-G41 SD1_TX1_N ← AL10 SD1_TX1_N SD1_RX1_P → ST2-B38 SD1_RX1_P → AU10 SD1_RX1_P SD1_RX1_N → ST2-B39 SD1_RX1_N → AT10 SD1_RX1_N Table 6-4 LAN4 pin assignment miriac SBC-LX2160A User Manual V 1.6 33/71 © MicroSys Electronics GmbH 2021... -
Page 34: Lan5 And Lan6: 25 Gbps (Zsfp+ / Sfp28)
ST2-H38 SD1_TX3_P ← AM12 SD1_TX3_P ← ST2-H39 SD1_TX3_N ← AL12 SD1_TX3_N → ST2-C36 SD1_RX3_P → AU12 SD1_RX3_P → ST2-C37 SD1_RX3_N → AT12 SD1_RX3_N Table 6-6 LAN6 pin assignment miriac SBC-LX2160A User Manual V 1.6 34/71 © MicroSys Electronics GmbH 2021... -
Page 35: Lan7: 40 Gbps (Qsfp+)
AP17 SD1_TX7_P ST2-H35 HI3_N ← SD1_TX7_N ← AN17 SD1_TX7_N ST2-E32 HO3_P → SD1_RX7_P → AW17 SD1_RX7_P ST2-E33 HO3_N → SD1_RX7_N → AV17 SD1_RX7_N Table 6-7 LAN7 pin assignment miriac SBC-LX2160A User Manual V 1.6 35/71 © MicroSys Electronics GmbH 2021... -
Page 36: Mdio1 (Emi1) Addressing
MDIO2 is connected to the 2x 88X3310P (10GBase-T) and 88X5113 (QSFP+). Part component Address 88X3310P Addr = 10000 88X3310P Addr = 10001 88X5113 Addr = 00011 Table 6-9 LAN / MDIO2 / Addressin miriac SBC-LX2160A User Manual V 1.6 36/71 © MicroSys Electronics GmbH 2021... -
Page 37: Pcie Connections
RFCLK- PET0+ PET0- PER0+ PER0- PRSNT2# RSVD2 PET1+ PET1- PER1+ PER1- PET2+ PET2- PER2+ PER2- PET3+ PET3- PER3+ PER3- RSVD3 PRSNT2# RSVD4 Table 6-10 PCIe x4 Slot pinout miriac SBC-LX2160A User Manual V 1.6 37/71 © MicroSys Electronics GmbH 2021... -
Page 38: Pcie X8
The SBC-LX2160A offers one PCIe 4.0 x8 lane slot for PCIe x1/x2/x4/x8 cards. Part Reference: ST16 Manufacturer: Molex Type: MOL-0877159206 Used with: PCIe cards Pin: Pin: PRSNT1# +12V +12V +12V +12V +12V JTCK SMCLK JTDI SMDAT JTDO JTMS +3.3V miriac SBC-LX2160A User Manual V 1.6 38/71 © MicroSys Electronics GmbH 2021... - Page 39 Table 6-12 PCIe x8 Slot pinout The following table shows the internal connections: ST16 LS2160A Name Signal Name PET0+ ← ST1-D30 SD3_TX0_P ← SD3_TX0_P ST1-D31 PET0- ← SD3_TX0_N ← SD3_TX0_N miriac SBC-LX2160A User Manual V 1.6 39/71 © MicroSys Electronics GmbH 2021...
- Page 40 ← SD3_TX7_P ST1-C21 PET7- ← SD3_TX7_N ← SD3_TX7_N ST1-F22 PER7+ → SD3_RX7_P → SD3_RX7_P ST1-F23 PER7- → SD3_RX7_N → SD3_RX7_N Table 6-13 PCIe x8 Slot SerDes 3 assignment miriac SBC-LX2160A User Manual V 1.6 40/71 © MicroSys Electronics GmbH 2021...
-
Page 41: Sata
SD2_TX7_P ← AP27 SD2_TX7_P ST2-G25 ← SD2_TX7_N ← AN27 SD2_TX7_N ST2-D22 → SD2_RX7_P → AW27 SD2_RX7_P ST2-D23 → SD2_RX7_N → AV27 SD2_RX7_N Table 6-17 SATA 4 pin assignment miriac SBC-LX2160A User Manual V 1.6 41/71 © MicroSys Electronics GmbH 2021... -
Page 42: Microsd Card Slot
Table 6-18 microSD card slot pin assignment 6.8 eMMC An additional eMMC chip is available on the carrierboard CRX08, connected to SDHC2 of the LX2160A CPU. An 8GB eMMC (THGBMJG6C1LBAU7) from Kioxia is assembled. miriac SBC-LX2160A User Manual V 1.6 42/71 © MicroSys Electronics GmbH 2021... -
Page 43: Usb
The signal USB1_UID is per default (Jumper closed) connected to GND forcing Host-Mode. Leave the Jumper open to enable Device-Mode. ST22/ST23 TUSB8041 downstream P1/P3 (Bottom) Signal Signal Vbus+ → 1 (J36/J39) VOUT ↔ 2 / 18 USB_DM_DN1/3 miriac SBC-LX2160A User Manual V 1.6 43/71 © MicroSys Electronics GmbH 2021... - Page 44 47 / 43 OVERCUR2/4 Table 6-21 USB Host Ports 2/4 pin assignment USB1...4_FAULT# are low-active signals. A logic low level signals the port is in over- current situation miriac SBC-LX2160A User Manual V 1.6 44/71 © MicroSys Electronics GmbH 2021...
-
Page 45: Usb Otg Port
SSRX / SSTX is for type B connection. Type A using cross over. Mode is set by SW6-4. Open = OTG Mode, Closed = Host Mode. miriac SBC-LX2160A User Manual V 1.6 45/71 © MicroSys Electronics GmbH 2021... -
Page 46: Usb Uart Bridge Port
Used with: Type B cables The following table shows the internal connections: ST29 LX2160A Signal Signal Name Vbus+ UART1_SIN → UART1_SIN UART1_SOUT ← UART1_SOUT Table 6-23 Console pin assignment miriac SBC-LX2160A User Manual V 1.6 46/71 © MicroSys Electronics GmbH 2021... -
Page 47: Usb Supervisor Service Port
MPX-2160A module. The following table shows the internal connections: ST36 uController J24 Signal Signal Name Vbus+ USBME_D_N → USBME_D_N USBME_D_P ← USBME_D_P Table 6-24 uC USB interface pin assignment miriac SBC-LX2160A User Manual V 1.6 47/71 © MicroSys Electronics GmbH 2021... -
Page 48: Rs485
The following table shows the internal connections: ST28 LX2160A Signal Signal Name UART2_SIN → UART2_SIN UART2_SOUT ← UART2_SOUT UART2_RTS# ← UART2_RTS_B UART2_CTS# → UART2_CTS_B Table 6-25 RS485 pin assignment miriac SBC-LX2160A User Manual V 1.6 48/71 © MicroSys Electronics GmbH 2021... -
Page 49: Can-Fd
IIC3_SDA ← IIC3_SDA Table 6-26 CAN-FD 1 pin assignment ST27 LX2160A Signal Signal Name CANH IIC4_SCL ← IIC4_SCL CANL IIC4_SDA ← IIC4_SDA Table 6-27 CAN-FD 2 pin assignment miriac SBC-LX2160A User Manual V 1.6 49/71 © MicroSys Electronics GmbH 2021... -
Page 50: Jtag 1 Connector (Processor)
Type: FTSH-105-01-L-DV-K ST41 LX2160A Signal Signal Signal VREF 1.8V → → → → → → ← ← TRST_B → TRST_B → TRST_B Table 6-28 Module JTAG Connector Pinout miriac SBC-LX2160A User Manual V 1.6 50/71 © MicroSys Electronics GmbH 2021... -
Page 51: Jtag 2 Connector (Carrier Components)
J28, J20, J23 → ← TDO ➔ J23 → TDI ➔ J28 ➔ J20 ➔ J23 (chain) → TRST# → J28, J20, J23 Table 6-29 Carrier JTAG Connector Pinout miriac SBC-LX2160A User Manual V 1.6 51/71 © MicroSys Electronics GmbH 2021... -
Page 52: Gpio Extension (Plc Io)
691 382 010 008 Mates with: 691 381 000 008 Pin: Description MAX7325ATG Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Table 6-30 GPIN connector pinout (ST42) miriac SBC-LX2160A User Manual V 1.6 52/71 © MicroSys Electronics GmbH 2021... -
Page 53: Fan Connector
The SBC-LX2160A provides a fan connector on the carrier board (marked with „FAN). In case evaluation with an active cooling solution is necessary, MicroSys recommends a 12VDC rated, PWM controlled fan with tacho output. If both signals are provided, the fan curve can be adjusted in software by the included MicroChip EMC2301 I²C fan controller which is controlled by the LX2160A on I... -
Page 54: Special Expansion Headers
ST30 CPU UART3 All ST30 signals are 1V8 level. ST30 LX2160A ST1 (Module connector) Signal Signal Signal CPU_UART3.SOUT UART3_SOUT UART3_SOUT CPU_UART3.SIN UART3_SIN UART3_SIN Table 6-35 ST30 connector pinout miriac SBC-LX2160A User Manual V 1.6 54/71 © MicroSys Electronics GmbH 2021... -
Page 55: Switches, Buttons And Misc. Headers 7
If SW3-1/-2 is open, the CAN channel is unterminated. 7.1.4 SW4 (Clock Configuration) This functionality is currently not supported and subject to future expansion of the evaluation kit. miriac SBC-LX2160A User Manual V 1.6 55/71 © MicroSys Electronics GmbH 2021... -
Page 56: Sw5 (Boot Configuration)
→ → BOOT_SRC_2 BOOT_SRC_SEL2 BOOT_SRC_2 → → BOOT_SRC_3 BOOT_SRC_SEL3 BOOT_SRC_3 → → Table 7-2 BOOT-SELx pin assignment For details on bootsource selecetion refer to “miriac_MPX- LX2160A_User_Manual.pdf” chapter 4.9. miriac SBC-LX2160A User Manual V 1.6 56/71 © MicroSys Electronics GmbH 2021... -
Page 57: Sw6 (Board Configuration)
/ disable the carrier power supply. 7.2.3 ST32 (Module CPLD JTAG) This connector is for MicroSys internal use only. Please contact MicroSys for further information on custom CPLD implementations on the SoM. Interface is used for CPLD programming and debugging. Signal level is 3,3V. -
Page 58: St33 (Cpld User Io)
CPU_UIO.FCT-11 USR-FCT-11 (PL11C) USR-FCT-12 CPU_UIO.FCT-12 USR-FCT-12 (PL11D) USR-FCT-13 CPU_UIO.FCT-13 USR-FCT-13 (PL12A) USR-FCT-14 CPU_UIO.FCT-14 USR-FCT-14 (PL12B) USR-FCT-15 CPU_UIO.FCT-15 USR-FCT-15 (PL12C) USR-FCT-16 CPU_UIO.FCT-16 USR-FCT-16 (PL12D) Table 7-5 ST33 connector pinout miriac SBC-LX2160A User Manual V 1.6 58/71 © MicroSys Electronics GmbH 2021... -
Page 59: St34 (Gpios / Timers / Events)
Signal Signal SPI3.MOSI SPI3_SOUT SPI3_SOUT SPI3.CS0 SPI3_PCS0 SPI3_PCS0 SPI3.MISO SPI3_SIN SPI3_SIN SPI3.CS1 SPI3_PCS1 SPI3_PCS1 SPI3.CS2 SPI3_PCS2 SPI3_PCS2 SPI3.SCK SPI3_SCK SPI3_SCK SPI3.CS3 SPI3_PCS3 SPI3_PCS3 Table 7-6 ST35 connector pinout miriac SBC-LX2160A User Manual V 1.6 59/71 © MicroSys Electronics GmbH 2021... -
Page 60: St37 (Extended Reset And Power)
RESET_REQ# (1,8V) SLEEPn ST1-E8 SLEEPn SLEEPn (3,3V) POWER_FAIL# ST1-B11 POWER_FAIL# POWER_FAIL# (3,3V) WAKEn ST1-D7 WAKEn WAKEn (3,3V) CPLD RST_XSPI# ST2-D11 RST_XSPI# RST_XSPI# (1,8v) Table 7-7 ST37 connector pinout miriac SBC-LX2160A User Manual V 1.6 60/71 © MicroSys Electronics GmbH 2021... -
Page 61: St38 (Som Supervisior Mcu Console)
LX2160A Signal Signal Signal XSPI.CS0# XSPI_A_DQS XSPI_A_DQS 1V8_MODULE XSPI.CLK XSPI_A_SCK XSPI_A_SCK XSPI.DATA2 XSPI_A_DATA2 XSPI_A_DATA2 XSPI.DATA3 XSPI_A_DATA3 XSPI_A_DATA3 XSPI.DATA1 XSPI_A_DATA1 XSPI_A_DATA1 XSPI.DATA0 XSPI_A_DATA0 XSPI_A_DATA0 Table 7-9 ST39 connector pinout miriac SBC-LX2160A User Manual V 1.6 61/71 © MicroSys Electronics GmbH 2021... -
Page 62: St40 (Som Me Debug)
Signal ME_DBG.SWDIO SWDIO SWDIO ME_DBG.SWCLK SWCLK SWCLK Table 7-10 ST40 connector pinout 7.2.11 ST45 (SPI_SRVC) This interface is for MicroSys internal use only. Singnal level is 3,3V. ST45 STx (Module connector) Device Signal Signal Signal J19 W25Q16JVSNIQ ST1- SPI_ME.MOSI SPI_MOSI_ME... -
Page 63: St46 (Clocks)
Signaling temperature status of all on module temperature sensors. Additional external sensors may be added to these OC lines. ST48 Sensor Signal Signal Signal TEMP_MOD.CRIT TEMP_CRIT_MOD T_CRITn TEMP_MOD.WARN TEMP_WARN_MOD ALERTn Table 7-14 ST48 connector pinout miriac SBC-LX2160A User Manual V 1.6 63/71 © MicroSys Electronics GmbH 2021... -
Page 64: St51 J20 (Usx1) Ieee1588 Connector
88X3310 mamual. Signal level is 3,3V. ST53 J23 (88X3310) Signal Signal 3V3_SW GPIO-0 GPIO-0 GPIO-1 GPIO-1 GPIO-2 GPIO-2 GPIO-3 GPIO-3 GPIO-4 GPIO-4 GPIO-5 GPIO-5 Table 7-16 ST53 connector pinout miriac SBC-LX2160A User Manual V 1.6 64/71 © MicroSys Electronics GmbH 2021... -
Page 65: Leds
Default: 3 blinks – 1000Mbps / 2 blinks – 100 Mbps LAN4 / 1 blink – 10 Mbps / 0 blinks – no link USXGMII_P2_LED1 Right Yellow LED: off Table 8-2 Indicator LEDs 10G Ethernet ports miriac SBC-LX2160A User Manual V 1.6 65/71 © MicroSys Electronics GmbH 2021... -
Page 66: Power And Reset Leds
LED OFF: 5.0V USB OTG power is OFF LD15..18 RGB-LEDs Defined separate LED ON : CB_RESET# is activ LD19 Reset LED OFF: reset inactiv Table 8-3 Indicator LEDs - Carrier board miriac SBC-LX2160A User Manual V 1.6 66/71 © MicroSys Electronics GmbH 2021... -
Page 67: Module Leds
Pin OUT7 is not connected OUT8 OUT9 0x16 LD16 OUT10 Pin OUT11 is not connected OUT12 OUT13 0x17 LD15 OUT14 Pin OUT15 is not connected Table 8-5 RGB LEDs – Carrier miriac SBC-LX2160A User Manual V 1.6 67/71 © MicroSys Electronics GmbH 2021... -
Page 68: Appendix
SOM ......................System On Module UART ............Universal Asynchronous Receiver Transmitter USB ..................... Universal Serial Bus USXGMII .......... Universal Serial 10GE Media Independent Interface XLAUI4 ............Attachment Unit Interface 40/100GE Specific miriac SBC-LX2160A User Manual V 1.6 68/71 © MicroSys Electronics GmbH 2021... -
Page 69: Table Of Figures
Table 6-23 Console pin assignment ..................46 Table 6-24 uC USB interface pin assignment ..............47 Table 6-25 RS485 pin assignment ..................48 Table 6-26 CAN-FD 1 pin assignment ................. 49 miriac SBC-LX2160A User Manual V 1.6 69/71 © MicroSys Electronics GmbH 2021... - Page 70 Table 8-3 Indicator LEDs - Carrier board ................66 Table 8-4 Indicator LEDs – Module ..................67 Table 8-5 RGB LEDs – Carrier ..................... 67 Table 10-1 Document history ....................71 miriac SBC-LX2160A User Manual V 1.6 70/71 © MicroSys Electronics GmbH 2021...
-
Page 71: History
Initial Version 2021-05-28 4.3.2 added Board size 2021-07-01 Cover Sheet Rebrand 2021-10-07 Add warning for module removal 2021-10-12 Update block diagram to new corporate ID Table 10-1 Document history miriac SBC-LX2160A User Manual V 1.6 71/71 © MicroSys Electronics GmbH 2021...
