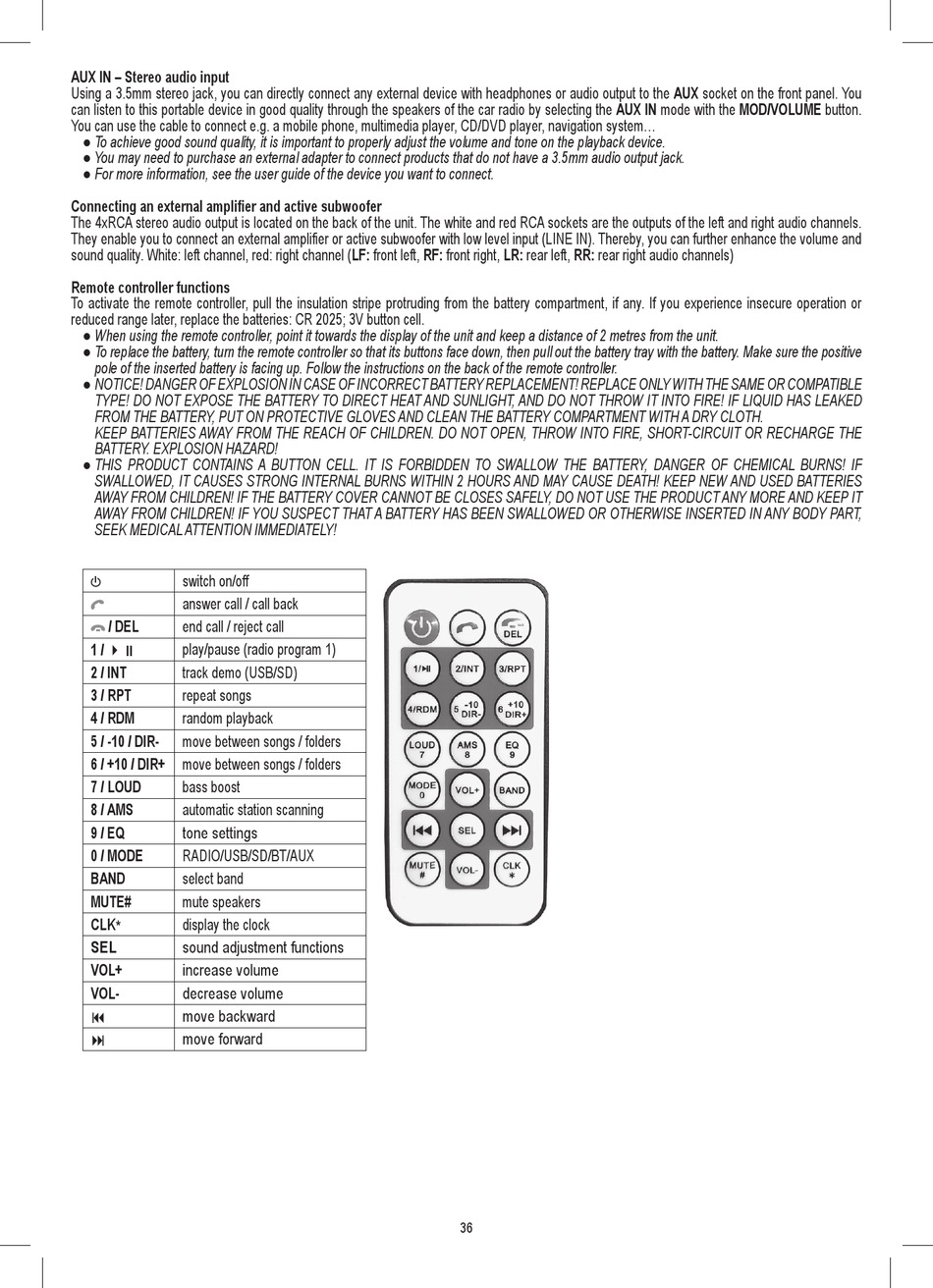

Somogyi Elektronic SAL VBT 1100/BL Instruction Manual page 36

AUX IN – Stereo audio input
Using a 3.5mm stereo jack, you can directly connect any external device with headphones or audio output to the AUX socket on the front panel. You
can listen to this portable device in good quality through the speakers of the car radio by selecting the AUX IN mode with the MOD/VOLUME button.
You can use the cable to connect e.g. a mobile phone, multimedia player, CD/DVD player, navigation system...
● To achieve good sound quality, it is important to properly adjust the volume and tone on the playback device.
● You may need to purchase an external adapter to connect products that do not have a 3.5mm audio output jack.
● For more information, see the user guide of the device you want to connect.
Connecting an external amplifier and active subwoofer
The 4xRCA stereo audio output is located on the back of the unit. The white and red RCA sockets are the outputs of the left and right audio channels.
They enable you to connect an external amplifier or active subwoofer with low level input (LINE IN). Thereby, you can further enhance the volume and
sound quality. White: left channel, red: right channel (LF: front left, RF: front right, LR: rear left, RR: rear right audio channels)
Remote controller functions
To activate the remote controller, pull the insulation stripe protruding from the battery compartment, if any. If you experience insecure operation or
reduced range later, replace the batteries: CR 2025; 3V button cell.
● When using the remote controller, point it towards the display of the unit and keep a distance of 2 metres from the unit.
● To replace the battery, turn the remote controller so that its buttons face down, then pull out the battery tray with the battery. Make sure the positive
pole of the inserted battery is facing up. Follow the instructions on the back of the remote controller.
● NOTICE! DANGER OF EXPLOSION IN CASE OF INCORRECT BATTERY REPLACEMENT! REPLACE ONLY WITH THE SAME OR COMPATIBLE
TYPE! DO NOT EXPOSE THE BATTERY TO DIRECT HEAT AND SUNLIGHT, AND DO NOT THROW IT INTO FIRE! IF LIQUID HAS LEAKED
FROM THE BATTERY, PUT ON PROTECTIVE GLOVES AND CLEAN THE BATTERY COMPARTMENT WITH A DRY CLOTH.
KEEP BATTERIES AWAY FROM THE REACH OF CHILDREN. DO NOT OPEN, THROW INTO FIRE, SHORT-CIRCUIT OR RECHARGE THE
BATTERY. EXPLOSION HAZARD!
● THIS PRODUCT CONTAINS A BUTTON CELL. IT IS FORBIDDEN TO SWALLOW THE BATTERY, DANGER OF CHEMICAL BURNS! IF
SWALLOWED, IT CAUSES STRONG INTERNAL BURNS WITHIN 2 HOURS AND MAY CAUSE DEATH! KEEP NEW AND USED BATTERIES
AWAY FROM CHILDREN! IF THE BATTERY COVER CANNOT BE CLOSES SAFELY, DO NOT USE THE PRODUCT ANY MORE AND KEEP IT
AWAY FROM CHILDREN! IF YOU SUSPECT THAT A BATTERY HAS BEEN SWALLOWED OR OTHERWISE INSERTED IN ANY BODY PART,
SEEK MEDICAL ATTENTION IMMEDIATELY!
switch on/off
answer call / call back
/ DEL
end call / reject call
1 /  play/pause (radio program 1)
2 / INT
track demo (USB/SD)
3 / RPT
repeat songs
4 / RDM random playback
5 / -10 / DIR-
move between songs / folders
6 / +10 / DIR+
move between songs / folders
7 / LOUD bass boost
8 / AMS
automatic station scanning
9 / EQ
tone settings
0 / MODE RADIO/USB/SD/BT/AUX
BAND
select band
MUTE# mute speakers
CLK * display the clock
SEL
sound adjustment functions
VOL+ increase volume
VOL- decrease volume
move backward

move forward

