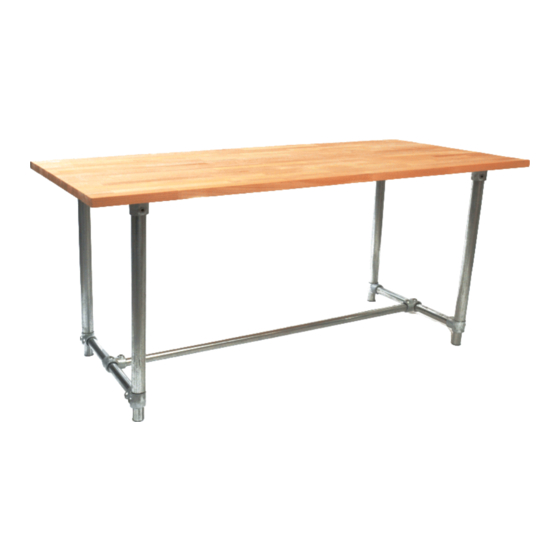

Simple Table
Basic Table Frame
Kit Instructions
61-7
Leg Pipes
10-7
Basic Installation Instructions
1.
Confirm that you have all the required parts.
2.
Assemble the parts according to the enclosed diagram.
3.
When you initially assemble the unit, loosely tighten the fitting set screws. After
the unit is completely assembled, fully tighten all set screws.
4.
If installing plugs, place cloth over plug and hammer into place.
Troubleshooting
If the table seems wobbly, loosen the set screws and adjust the pipes until the table
is stable.
Depth Pipe
See footing option
Width Pipe
diagrams (page 2)
Parts
Standard Table Parts
Qty Part
4 61-7 Flanges
6 10-7 Single Socket Tees
4
Leg Pipes
2 Depth Pipes
1 Width Pipe
Footing Options
Plugs
4 133-7
Flanges
4 61-7
Casters
2 3" Caster w/ Brake
2 3" Caster w/o Brake
Tools
• Allen Key (included)
• Screw Driver
• Hammer (for plugs)
• Crescent Wrench (for casters)
• Level
Hardware Needed
•#10 x ¾" Flat Head Wood Screws
Page 1
Advertisement
Table of Contents
Related Manuals for Simplified Building Simple Table
Summary of Contents for Simplified Building Simple Table
- Page 1 Simple Table Basic Table Frame Kit Instructions Parts Standard Table Parts Qty Part 4 61-7 Flanges 61-7 6 10-7 Single Socket Tees Leg Pipes 2 Depth Pipes 1 Width Pipe Leg Pipes Depth Pipe Footing Options Plugs 4 133-7 Flanges...
- Page 2 Simple Table Basic Table Frame Kit Instructions Step by Step Instructions 7) Flip the pipe frame over so that the 61-7 flanges are now lying flat 1) Start by attaching the 10-7 Tees to end of Width Pipe. on the bottom of the desktop.
