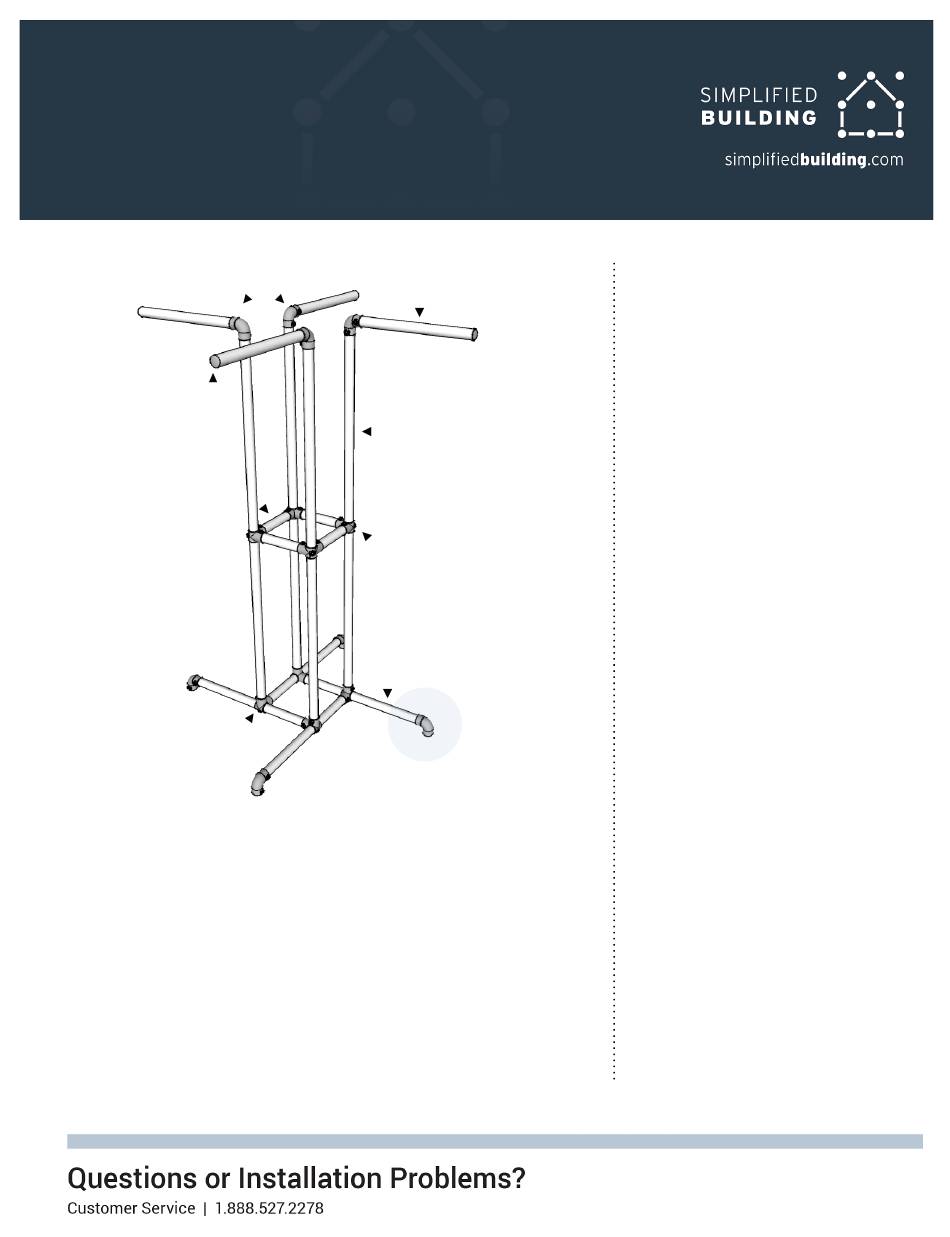

Simple Rack
Four Way Clothing Rack
Kit Instructions
84-6
8" Pipes
21-6
Basic Installation Instructions
1.
Confirm that you have all the required parts.
2.
Assemble the parts according to the enclosed diagram.
3.
When you initially assemble the unit loosely tighten the fitting set screws. After
the unit is completely assembled, fully tighten all set screws.
4.
If installing plugs, place cloth over plug and hammer into place.
Troubleshooting
If the rack seems wobbly, loosen the footing set screws and adjust the footing pipes
until the rack is stable.
15-6
18" Pipes
4ʼ/5ʼ/6ʼ Pipe
(Height varies
based upon
your order)
21-6
2' Pipes
See footing option
diagrams (page 2)
Parts
Standard Rack Parts
Qty Part
4 15-6 90 Degree Elbow
8 21-6 Side Outlet Tees
4 84-6 Malleable Plugs
4 2ʼ Pipes
4 18" Pipes
4 8" Pipes
4 4ʼ/5ʼ/6ʼ Pipe
Footing Options
Elbow
4 15-6 Elbows
Post
4 15-6 Elbows
4 4" Pipes
4 133-6 Plastic Plugs
Flange
4 15-6 Elbows
4 4" Pipes
4 61-6 Flange
Flat
4 15-6 Elbows
4 4" Pipes
4 59-6 Spigot Flange
Caster
4 10-6 Single Socket Tees
4 4" Pipes
4 84-6 Metal Plugs
2 Casters
2 Casters w/ Break
Tools
• Allen Key (included)
• Hammer (for plugs)
• Wrench (for casters)
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simplified Building Simple Rack
Summary of Contents for Simplified Building Simple Rack
- Page 1 Simple Rack Four Way Clothing Rack Kit Instructions Parts 15-6 18" Pipes Standard Rack Parts Qty Part 4 15-6 90 Degree Elbow 8 21-6 Side Outlet Tees 4 84-6 Malleable Plugs 84-6 4 2ʼ Pipes 4ʼ/5ʼ/6ʼ Pipe (Height varies 4 18” Pipes based upon 4 8” Pipes your order) 4 4ʼ/5ʼ/6ʼ Pipe 8" Pipes Footing Options Elbow 4 15-6 Elbows 21-6 Post 4 15-6 Elbows 4 4” Pipes 4 133-6 Plastic Plugs Flange 4 15-6 Elbows 4 4” Pipes...
- Page 2 Simple Rack Four Way Clothing Rack Kit Instructions Elbow Footing Post Footing Flange Footing 15-6 15-6 15-6 4” pipe 4” pipe 61-6 133 Plastic Plug Flat Footing Caster Footing 84-6 Metal Plug — The plug goes into the top of the 4” pipe. Hammer the plug into place. 15-6 10-6 4” pipe 4” pipe Caster — The caster mount is tightened 59-6 with a wrench until the rubber sleeve snuggly fits in the pipe. Once the sleeve is inserted into the pipe, tighten with a wrench until the caster cannot be pulled out of the pipe. Page 2...
