T13120
T13020
T13120-LTS
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
Dia.
8" (203 mm)
18" (457 mm)
RP5833
RP5835
4 3/4"
(121 mm)
RP36498 (Slip-On Metallic)
7"
(177.8 mm)
H79
3 3/8"
(86 mm)
RP46384
4 3/4"
1.5 GPM
(121 mm)
H 2 O Showerhead
3 1/4"
(83 mm)
Full Spray
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
2.D.6
T13220-SHC
T13220
Face of plasterguard
should be flush with
finish wall line
min.
max.
RP40594s Touch-Clean
2 1/2"
(64 mm)
Full Spray
2 1/2"
Massage Spray
(64 mm)
Soft Aerated Spray
RP38357
Touch-Clean ®
Showerhead
Full Spray
RP54752s
1.5 GPM
H 2 O Showerhead
Full Spray
T13220-H 2 OT
Supply
2 3/4"
(70 mm)
®
Showerhead
4 3/4"
(121 mm)
3 3/4"
(95 mm)
2 3/4"
(70 mm)
2 5/8"
(66 mm)
4 1/2"
(114 mm)
3 7/8"
(98 mm)

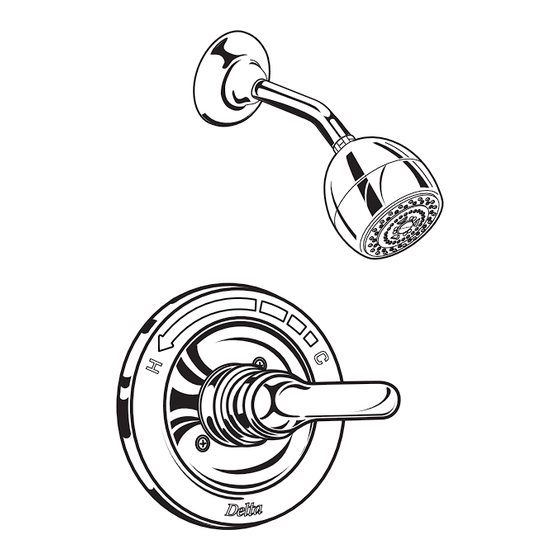

Tub AND SHOWER
FAuCET TRIM
■ Valve Only (T13020 Series)
■ Tub Only (T13120 Series)
■ Shower Only (T13220 Series)
STANDARD SPECIFICATIONS:
•
®
Monitor
13 Series pressure balanced bath
mixing valve with Scald-Guard
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
®
For use with MultiChoice
Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass fabricated body.
•
Temperature only controlled with metal lever
handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120° maximum handle rotation.
•
All parts replaceable from the front of the valve.
•
Models with "LTS" suffix supplied with 7" long
non-diverter slip-on spout (RP36498).
WARRANTy
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
COMPLIES WITH:
•
ASME A1 12.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
U P
C
®
®
Pressure (kPa)
0
69
138
207
276
345
414
9
8
7
Tub Filler
6
5
4
Showerhead
3
2
1
H2O Showerhead
0
0
10
20
30
40
50
60
Pressure (PSI)
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2009 Masco Corporation of Indiana
®
.
483
552
621
34.1
30.3
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
70
80
90
DSP-B-T13020 Rev. E
