MNPV3 Procedure
May 30, 2011
2
4
1
6
3
5
3
Pan head screw 10 x 3/8
Pan head screw
10-32 Lock nut
10-32 x 3/8
#6-016-1
#6-036-1
Socket head cap screw
10-32 x 7/8 #6-034-1

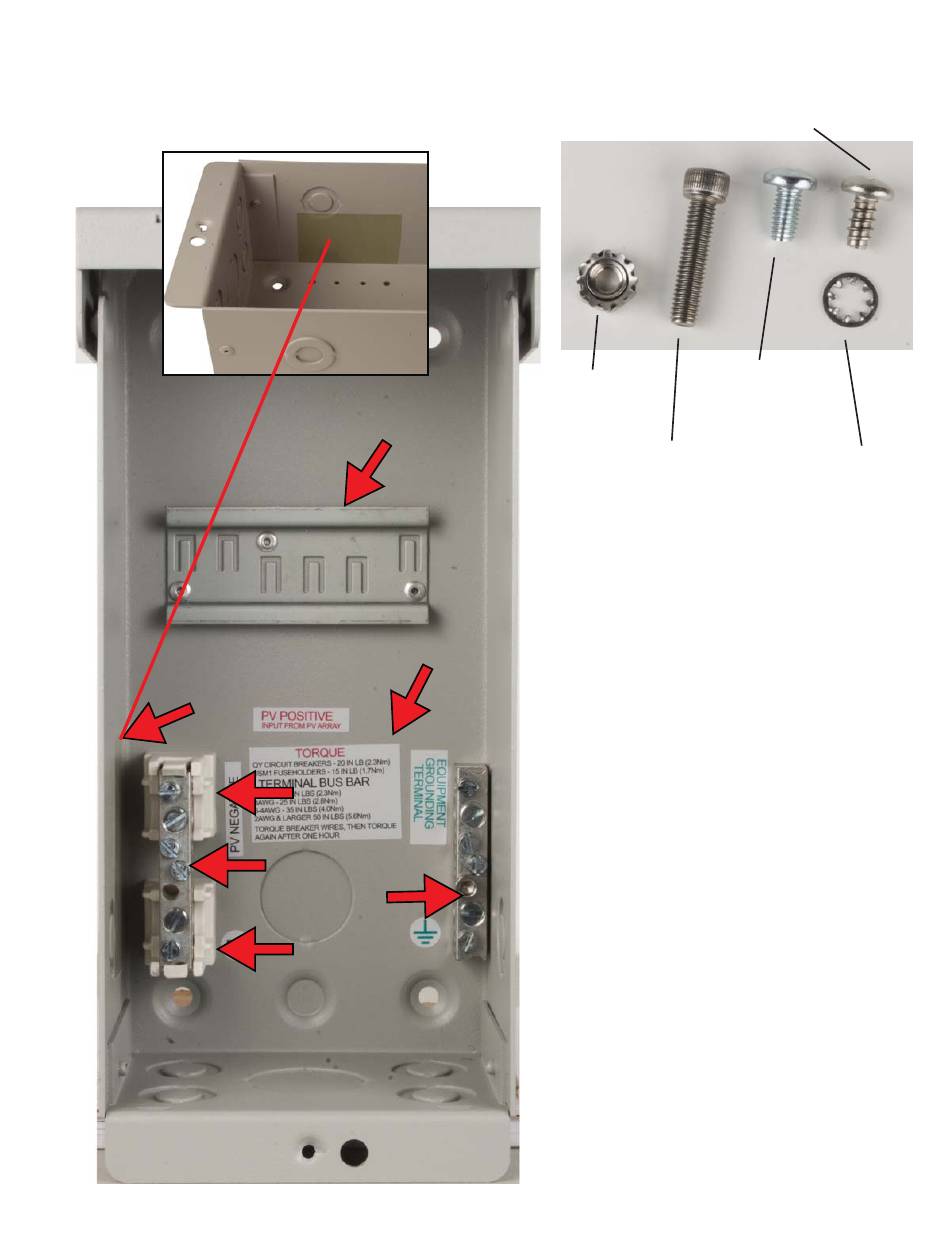

Step 1.
Rivet dinrail #3-074-1 to chassis
#3-071-1 using 6-049-1 rivets.
Step 2.
Apply two inch long plastic tape
to the left side wall.
Step 3.
Attach 2 white busbar insulators
#5-015-2 to the chassis with
#6-036-1 screws. Aluminum
chassis strips easily. Don't over
tighten.
Step 4.
Attach left busbar #9-037-1 to
busbar insulators.
Step 5.
Attach right side busbar #9-
037-1 using 6-034-1 screw and
lock nut #6-016-1.
Step 6.
Apply inside labels #10-008-1 to
box.
#6-007-1
Lock washer
#6-017-1
