MidNite Solar MNPV6 Procedure

MNPV6 Procedure
May 30, 2011

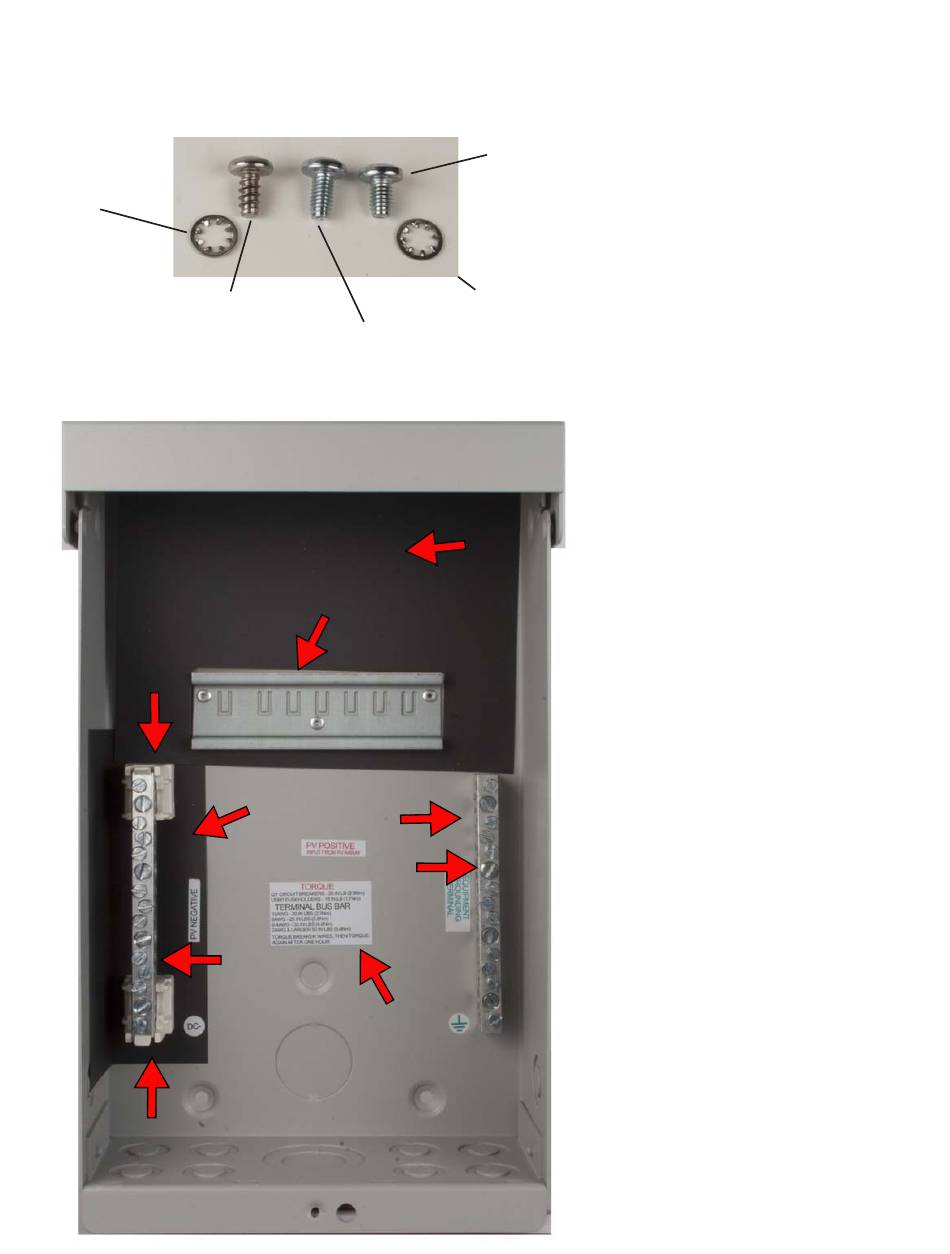

Lock washer
#10 internal tooth
#6-017-1
Pan head screw 10 x 3/8
#6-007-1
3
4
3
Pan head screw
10-32 x 3/8
#6-036-1
1
2
#5-022-1
5
6
8
#5-021-1
Pan head screw
10-32 x 5/16
#6-037-1
Lock washer
#10 internal tooth
#6-017-1
7
#5-021-1
Step 1.
Rivet the dinrail #3-043-1 to
the chassis #3-040-3.
Step 2.
Lay the black paper insulator
#5-022-1 down with the diago-
nal corner to the upper center.
Step 3.
Screw down the negative
busbar insulators #5-015-2
using #6-007-1 screws.
num chassis strips easily.
Don't over tighten.
Step 4.
Snap on the left busbar on to
the negative insulators.
Step 5.
Screw down the right side
busbar using #6-037-1 screws
and #6-017-1 lock washers.
Step 6.
Loosen up the second large
inset screw from the top of the
right side busbar.
Step 7.
Place large black paper insula-
tor #5-021-1 in the top portion
of box around the dinrail.
Step 8.
Place inside labels #10-008-1
Alumi-
