Arrow eSTOP Quick Start Manual

eSTOP™
Troubleshooting
HRC (Handheld Remote Controller)

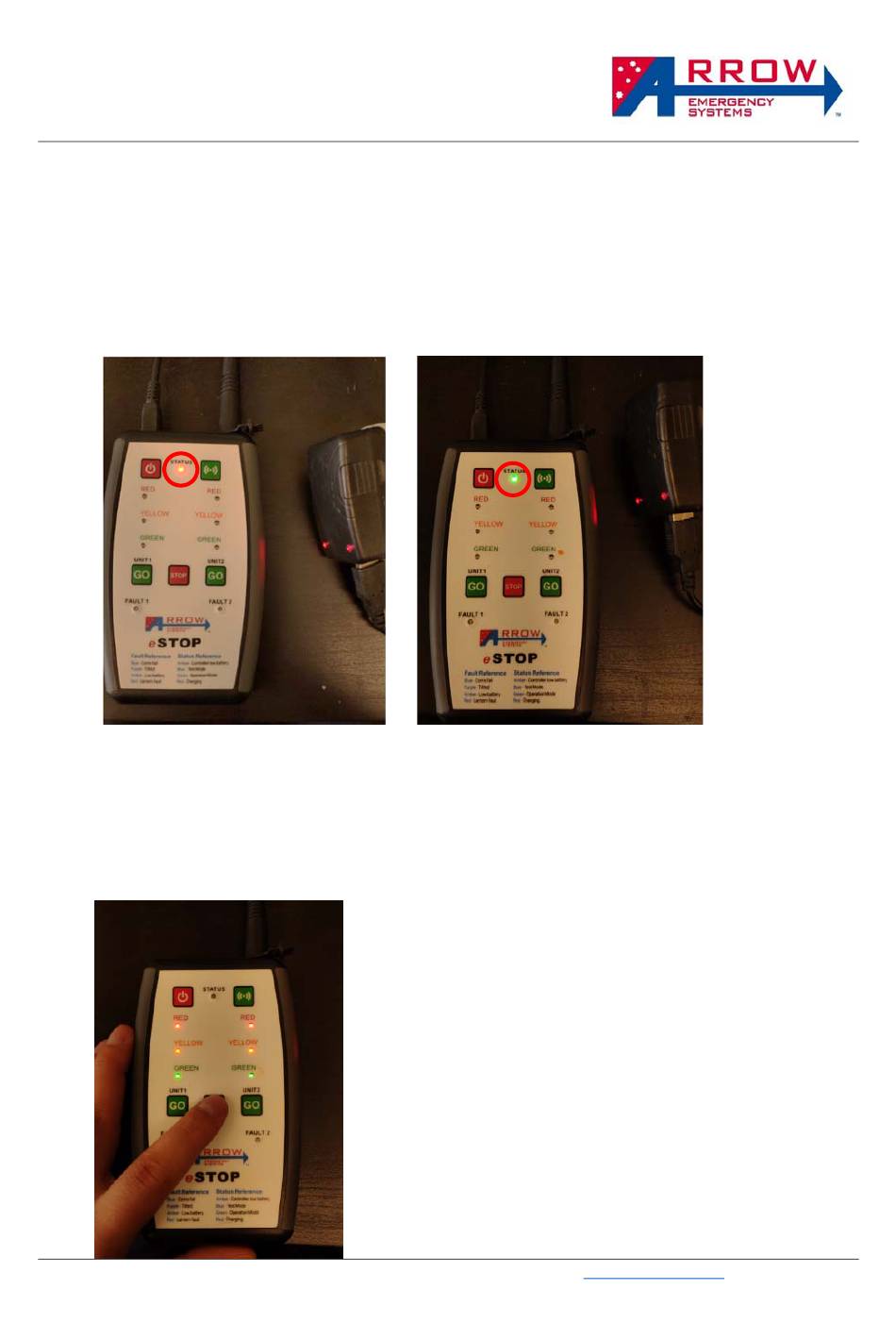

Correct Charging

1.
light will only indicate when the HRC is in off mode). Once it's fully charged, the status indicator
will be green. If the status indicator does not appear, simply press any button to wake up the
status.
External 5V USB charger will also charge the HRC.
Charging cable can be stayed connected once its fully charger. If the HRC will be in storage for
more than a week, do not leave the charging cable connected.
The battery level can be checked by pressing the STOP button while the HRC is in off mode. The
green, yellow and red LED will light on representing a battery bar of 4 levels.
HRC battery level 3
Arrow Emergency Systems | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 |
– when the HRC is charging the status indicator should be red (charging
HRC charging
Level 0 : No LED on, the battery is below 0-30%, it shoud be
charged.
Level 1: Only Green LED on, the battery is between 30%-60%.
Level 2: Green and Yellow LED on, the battery is between
60%~90%.
Level 3: Green, Yellow and Red LED on, the battery is between
90%~100%.
HRC fully charged
www.arrowes.com.au Page | 1
