| 1

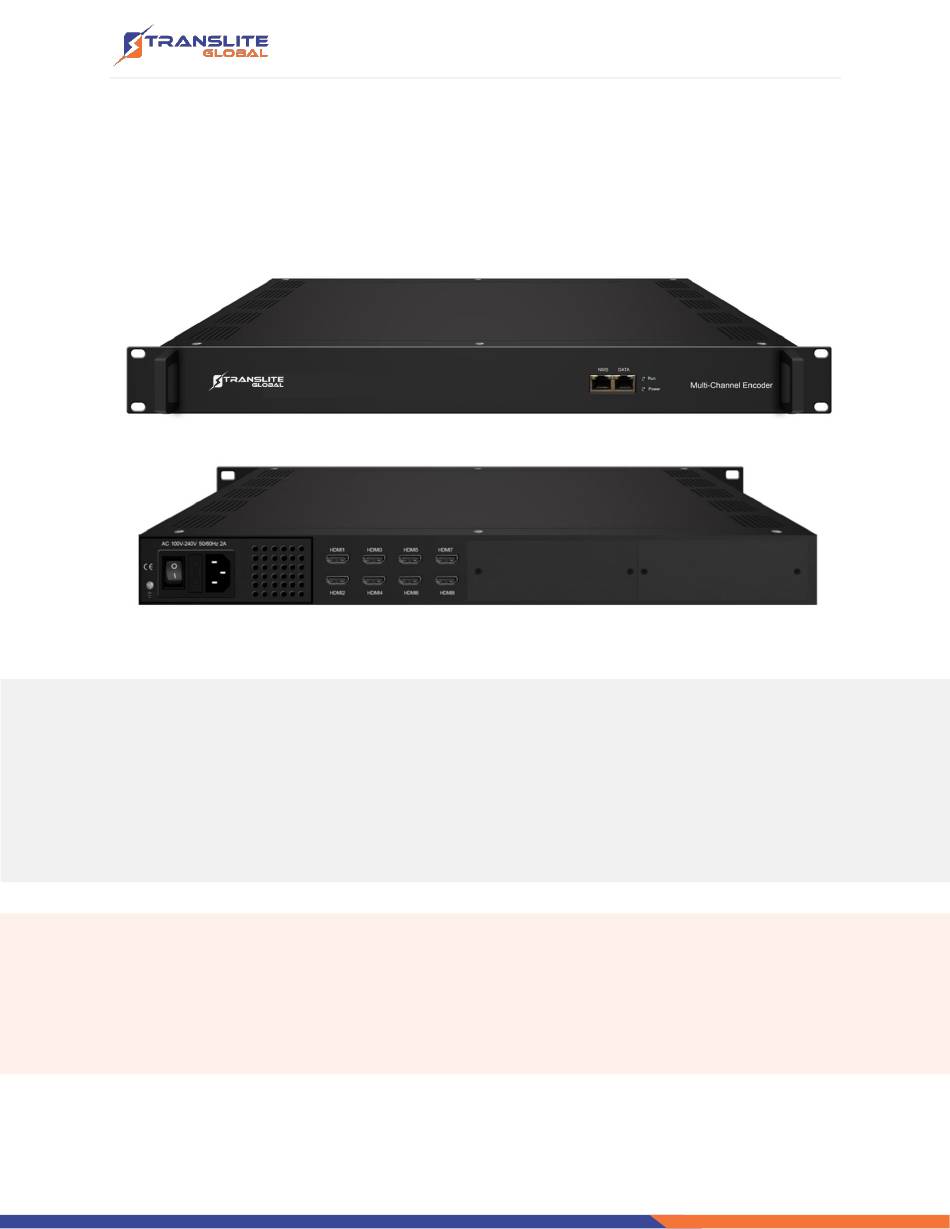

PRODUCT MODEL NUMBER:
TL-9228S MULTI-
CHANNEL ENCODER
ABOUT THIS
MANUAL
DISCLAIMER
No part of this document may be reproduced in any form without the written permission of the copyright
owner.
The contents of this document are subject to revision without notice due to continued progress in
methodology, design and manufacturing. TRANSLITE GLOBAL LLC shall have no liability for any error or
damage of any kind resulting from the use of this document.
COPY WARNING
This document includes some confidential information. Its usage is limited to the owners of the
product that it is relevant to. It cannot be copied, modified, or translated in another language
without prior written authorization from TRANSLITE GLOBAL LLC
Advertisement
Table of Contents
Related Manuals for TransLite TL-9228S
Summary of Contents for TransLite TL-9228S
- Page 1 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. TRANSLITE GLOBAL LLC shall have no liability for any error or damage of any kind resulting from the use of this document.
-
Page 2: Table Of Contents
P a g e INDEX TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ........................3 1.1 PRODUCT OVERVIEW........................3 1.2 KEY FEATURES........................... 3 1.3 SPECIFICATIONS ..........................4 1.4 PRINCIPLE CHART ..........................5 1.5 APPEARANCE AND DESCRIPTION ...................... 6 CHAPTER 2 INSTALLATION GUIDE ...................... -
Page 3: Chapter 1 Introduction
INTRODUCTION PRODUCT OVERVIEW TL-9228S multi-channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost-effective design make the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc. -
Page 4: Specifications
P a g e SPECIFICATIONS Input 8/16/24 HDMI inputs Video Input Resolution 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i Output Resolution 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P Encoding MPEG-4 AVC/H.264 Bit-rate 1~13Mbps each channel Rate Control CBR/VBR GOP Structure... -
Page 5: Principle Chart
P a g e Stream Output IP output through DATA (GE) over UDP and RTP/RTSP protocol (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board) 1 ASI out as mirror of MPTS (Optional as order) System Function Network management (WEB) Chinese and English language Ethernet software upgrade... -
Page 6: Appearance And Description
P a g e APPEARANCE AND DESCRIPTION Front Panel Illustration 1 2 3 NMS (Network Management Port) Data Port (for IP Signal Output) Power Indicator Rear Panel Illustration... -
Page 7: Chapter 2 Installation Guide
ACQUISITION CHECK When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ➢ TL-9228S Multi-Channel Encoder ➢ User’s Manual ➢ Power Cord ➢... -
Page 8: Installation Preparation
P a g e INSTALLATION PREPARATION When users install device, please follow the below steps. The details of installation will be described at the rest part of this chapter. Users can also refer rear panel chart during the installation. The main content of this chapter including: ➢... -
Page 9: Environment Requirement
P a g e ENVIRONMENT REQUIREMENT Item Requirement When user installs machine frame array in one machine hall, the distance Machine Hall between 2 rows of machine frames should be 1.2~1.5m and the distance Space against wall should be no less than 0.8m. Electric Isolation, Dust Free Machine Hall Volume resistivity of ground anti-static material: 1X107~1X1010，... -
Page 10: Frame Grounding
P a g e | 10 ➢ Coaxial cable’s outer conductor and isolation layer should keep proper electric conducting with the metal housing of device. ➢ Grounding conductor must adopt copper conductor in order to reduce high frequency impedance, and the grounding wire must be as thick and short as possible. ➢... -
Page 11: Signal Cable Connection
When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to TL-9228S Multi-Channel Encoder, user should set the power switch to “OFF”. SIGNAL CABLE CONNECTION The signal connections include the connection of input signal cable and the connection of output signal cable. -
Page 12: Network Cable Illustration (Cat5)
P a g e | 12 2.7.2 NETWORK CABLE ILLUSTRATION (CAT5) CHAPTER 3 WEB NMS OPERATION LOGIN The default IP address of this device is 192.168.0.136. Connect the PC (Personal Computer) and the device with net cable, and use ping command to confirm they are on the same network segment. -
Page 13: Operation
P a g e | 13 Figure-1 OPERATION Welcome When we confirm the login, it displays the WELCOME interface as Figure-2. System information User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2... - Page 14 Click this button to apply the modified parameters. Parameters →IP Stream TL-9228S supports TS to output in IP (1MPTS and 8 SPTS) format through the DATA port. When users click “IP Stream”, it will display the interface as Figure-4 where to set IP out...
- Page 15 P a g e | 15 Click pen icon to edit IP output parameters Figure-4 Parameters →OSD Clicking “OSD”, it will display the interface where to configuration the OSD parameters as Figure-5/6/7.
- Page 16 P a g e | 16 Select to configure logo, caption or QRcode Select program1-8 to apply the logo insertion, or you can select “all” to apply all programs Click here to confirm the LOGO you selected Browse and select the Logo which has Put your logo everywhere been created...
- Page 17 P a g e | 17 Put the QR code everywhere Input the QR code URL here Browse and select the QRcode which has been created Figure-7 System→ Network: Clicking “Network”, it will display the interface as Figure-8 where to set NMS and DATA parameters.
- Page 18 P a g e | 18 Figure-9 System → Configuration: Clicking “Configuration”, it will display the screen as Figure-10 where to save/ restore/factory set/ backup/ load your configurations. Figure-10 System → Firmware: Clicking “Firmware”, it will display the screen as Figure-11 where to update firmware for the encoder.
- Page 19 P a g e | 19 Figure-11 System → Date/Time: Clicking “Date/Time”, it will display the screen as Figure-12 where to set date and time for the device. Figure-12 System → Log: Clicking “Log”, it will display the log interface as Figure-13 where to check or export the Kernel/System log.
-
Page 20: Chapter 4 Troubleshooting
CHAPTER 4 TROUBLESHOOTING All TRANSLITE products have been passed the testing and inspection before shipping out from factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by TRANSLITE. To prevent potential hazard, please strictly follow the operation conditions. -
Page 21: Chapter 5 Packing List
After switching on and restoring to factory setting, device still cannot work properly. ➢ Maintenance needed CHAPTER 5 PACKING LIST TL-9228S Multi-Channel Encoder HDMI Cables 8/16/24 pcs as per number of HDMI interfaces Power Cord TL-9228S-8 TL-9228S-16 TL-9228S-24 8 HDMI Inputs with 8 SPTS and 1 MPTS out (1 encoder ✓... - Page 22 P a g e | 22...
