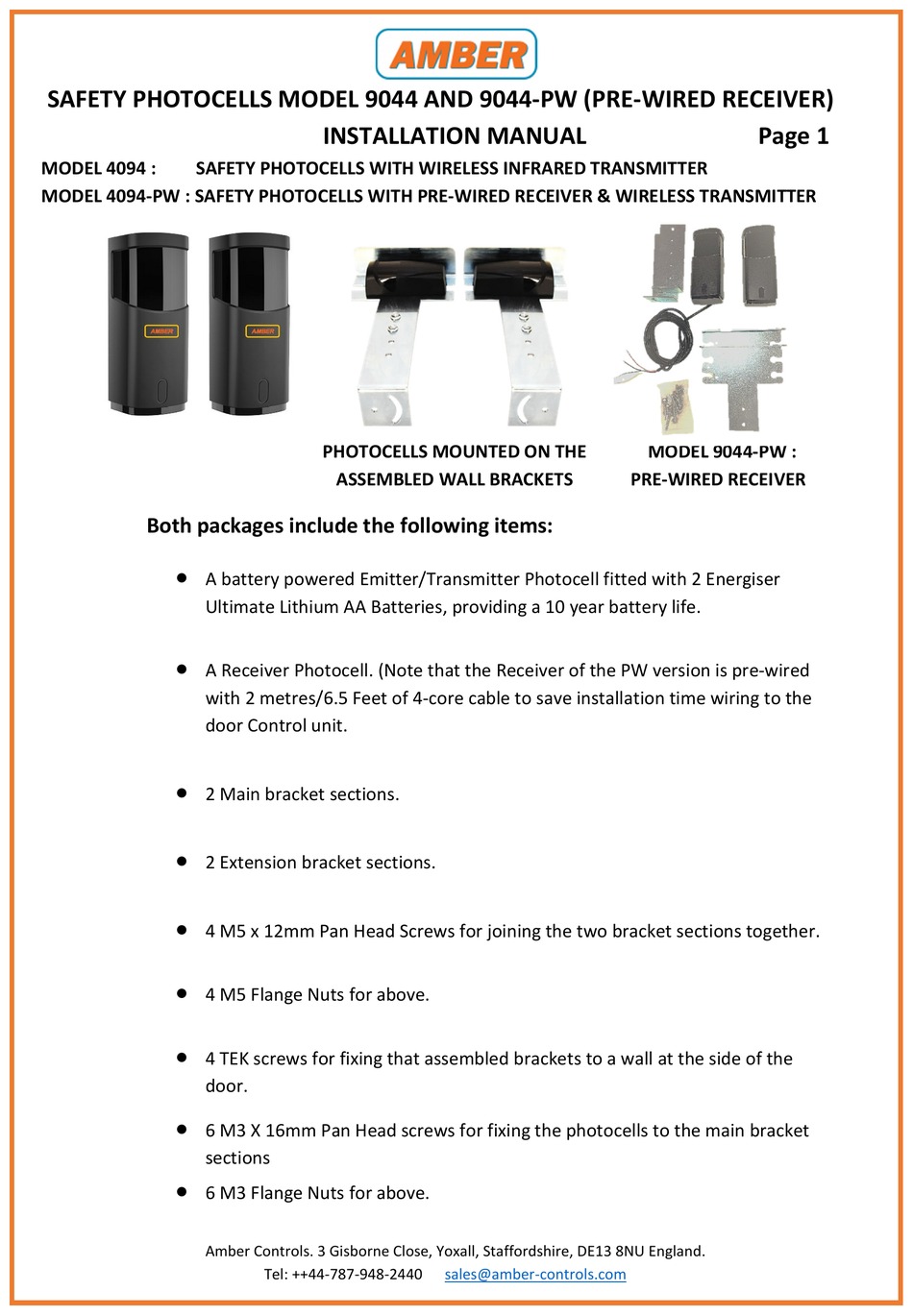

SAFETY PHOTOCELLS MODEL 9044 AND 9044-PW (PRE-WIRED RECEIVER)
MODEL 4094 :
SAFETY PHOTOCELLS WITH WIRELESS INFRARED TRANSMITTER
MODEL 4094-PW : SAFETY PHOTOCELLS WITH PRE-WIRED RECEIVER & WIRELESS TRANSMITTER
Both packages include the following items:
A battery powered Emitter/Transmitter Photocell fitted with 2 Energiser
Ultimate Lithium AA Batteries, providing a 10 year battery life.
A Receiver Photocell. (Note that the Receiver of the PW version is pre-wired
with 2 metres/6.5 Feet of 4-core cable to save installation time wiring to the
door Control unit.
2 Main bracket sections.
2 Extension bracket sections.
4 M5 x 12mm Pan Head Screws for joining the two bracket sections together.
4 M5 Flange Nuts for above.
4 TEK screws for fixing that assembled brackets to a wall at the side of the
door.
6 M3 X 16mm Pan Head screws for fixing the photocells to the main bracket
sections
6 M3 Flange Nuts for above.
