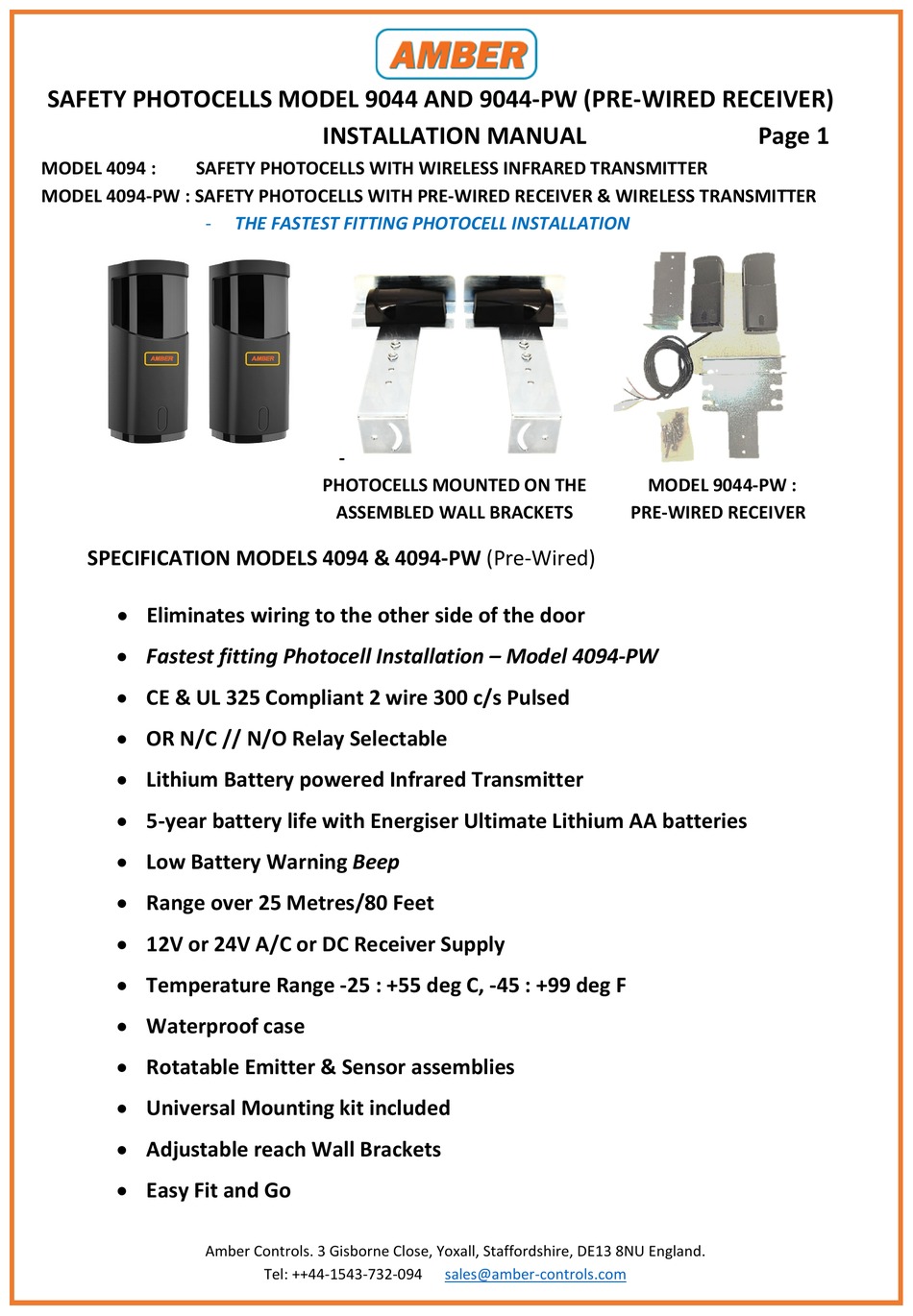

Amber 9044 Installation Manual

SAFETY PHOTOCELLS MODEL 9044 AND 9044-PW (PRE-WIRED RECEIVER)
MODEL 4094 : SAFETY PHOTOCELLS WITH WIRELESS INFRARED TRANSMITTER
MODEL 4094-PW : SAFETY PHOTOCELLS WITH PRE-WIRED RECEIVER & WIRELESS TRANSMITTER
-
SPECIFICATION MODELS 4094 & 4094-PW (Pre-Wired)
 Eliminates wiring to the other side of the door
 Fastest fitting Photocell Installation – Model 4094-PW
 CE & UL 325 Compliant 2 wire 300 c/s Pulsed
 OR N/C // N/O Relay Selectable
 Lithium Battery powered Infrared Transmitter
 5-year battery life with Energiser Ultimate Lithium AA batteries
 Low Battery Warning Beep
 Range over 25 Metres/80 Feet
 12V or 24V A/C or DC Receiver Supply
 Temperature Range -25 : +55 deg C, -45 : +99 deg F
 Waterproof case
 Rotatable Emitter & Sensor assemblies
 Universal Mounting kit included
 Adjustable reach Wall Brackets
 Easy Fit and Go
Amber Controls. 3 Gisborne Close, Yoxall, Staffordshire, DE13 8NU England.
INSTALLATION MANUAL
THE FASTEST FITTING PHOTOCELL INSTALLATION
-
PHOTOCELLS MOUNTED ON THE
ASSEMBLED WALL BRACKETS
Tel: ++44-1543-732-094 sales@amber-controls.com
Page 1
MODEL 9044-PW :
PRE-WIRED RECEIVER
