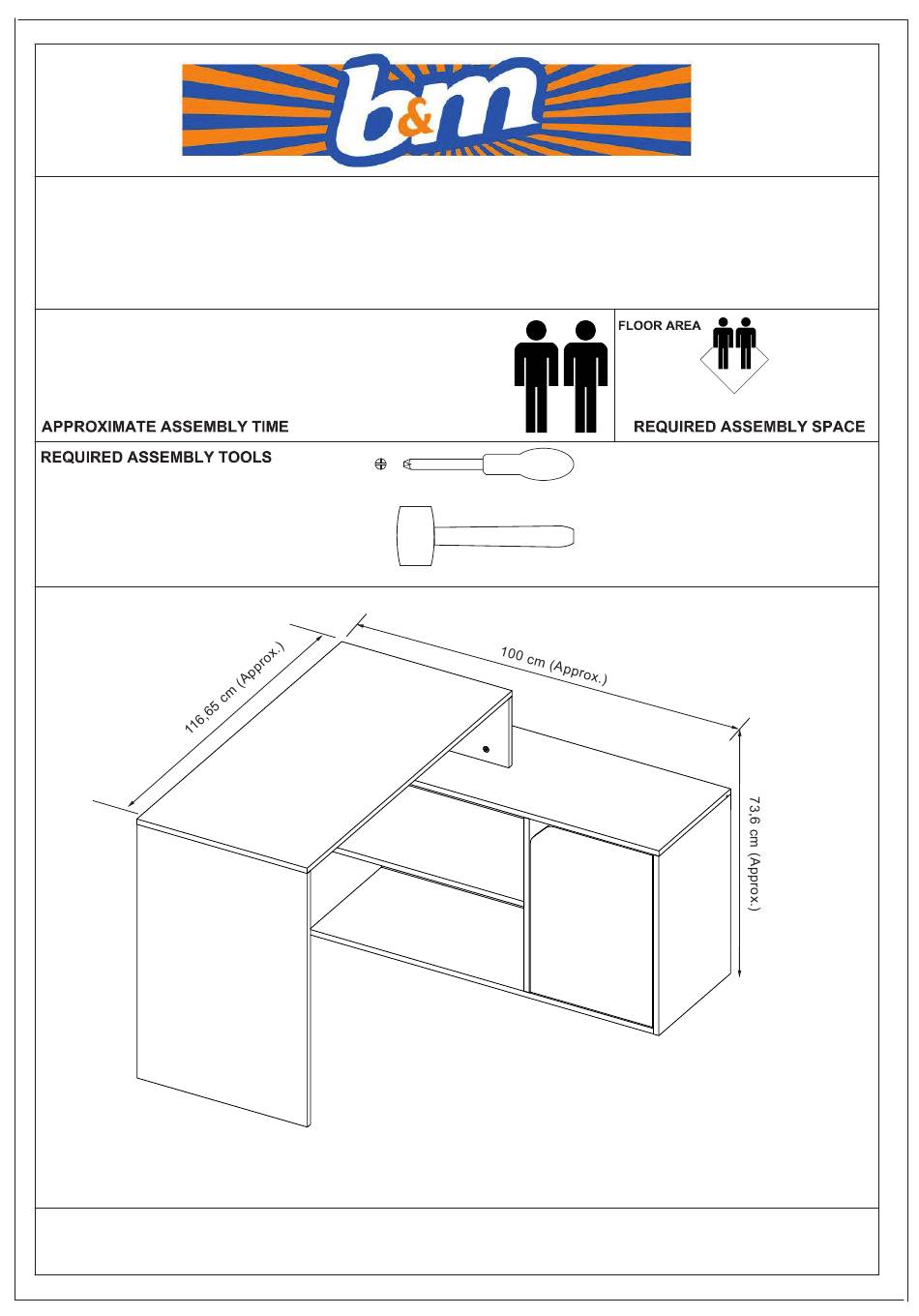

RENNES L SHAPED DESK
374448
1.5M X 1.5M
90 Min
2 PERSON ASSEMBLY
POZI SCREWDRIVER (Not Provided)
RUBBER MALLET (Not Provided)
NOTE. THE MAXIMUM WEIGHT THIS PRODUCT CAN HOLD UP 65 KGS
1 / 24
