• Devices act as end devices and repeaters
• Utilizes packet switching data transmission
• Increase coverage by adding more radios

S4e Meter Overview

All S4e meters include wide-dynamic voltage application capability, forms reduction, Service Scan automatic service
recognition, and GyrBox installation diagnostics and monitoring. The S4e is available with several register types,
providing the right functionality for any metering application. The S4e UtiliNet can be ordered with the following
register configurations:
AX Active energy, Demand or TOU
AXR 32K Active energy, with a 32K byte load profile recorder
AXR 128K Active energy, with a 128K byte load profile recorder
RX Active and reactive measurement, Demand or TOU
RXR 32K Active and reactive measurement with 32K byte load profile recorder
RXR 128K Active and reactive measurement with 128K byte load profile recorder
An optional input/output board provides up to 2, form C, solid-state relays and up to one external inputs for recording
pulses from a remote source. The 4 relay option board is not available with the S4e UtiliNet meter. One external input
can also be used for real-time rate changes or self-read actuation. The board can be easily added in the field without
the need for special tools or soldering.
For additional information on the S4e meter, consult the

UtiliNet Module Overview

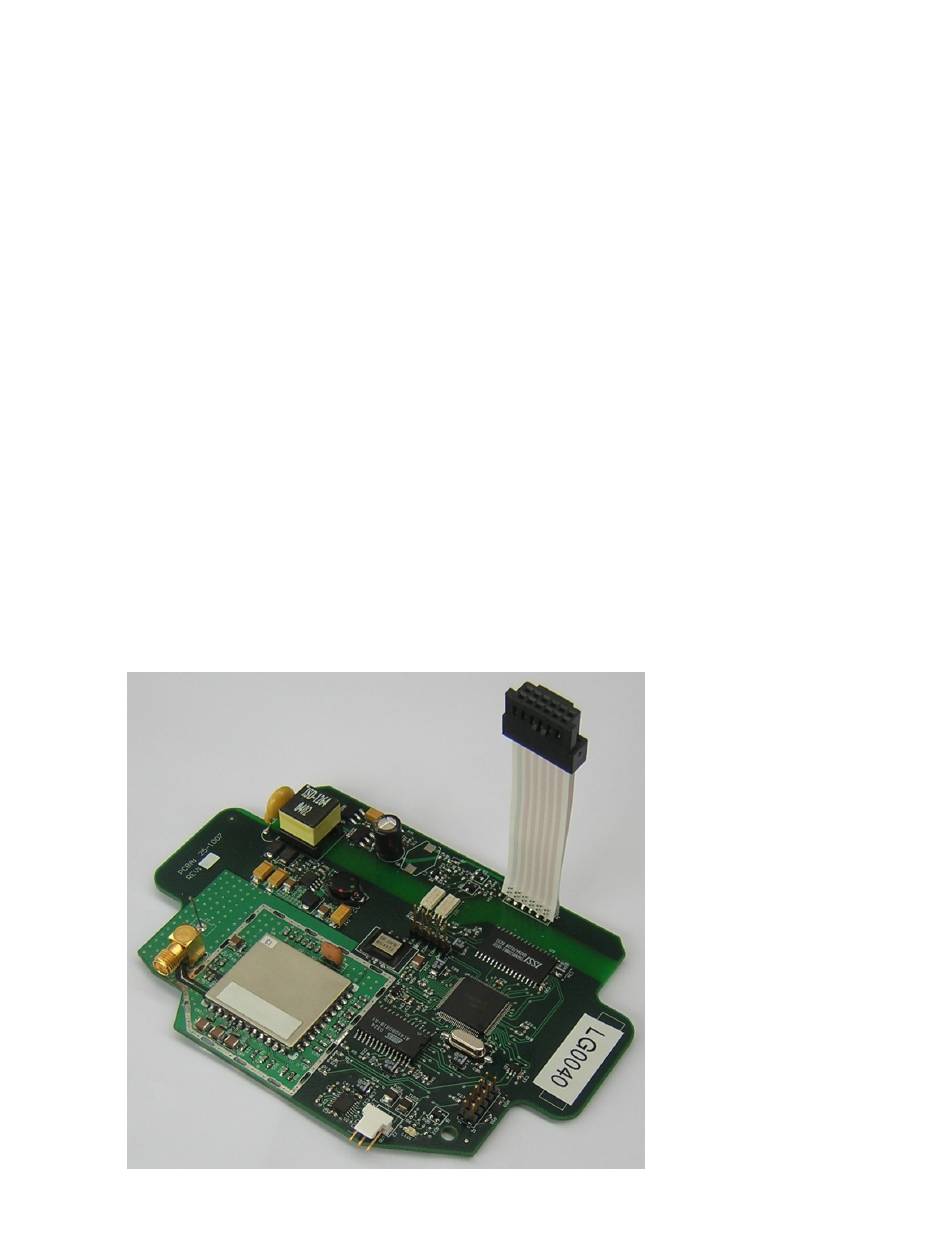

The S4e meter is modular in its design. The UtiliNet module occupies the communications board slot in an S4e
meter.
Bulletin Number: 20031201 Rev A
S4/S4e Solid State Meter Instruction/Technical Manual.
