Spearhead HXF FRAME 2302/2802/3302
HXF FRAME
2302/2802/3302

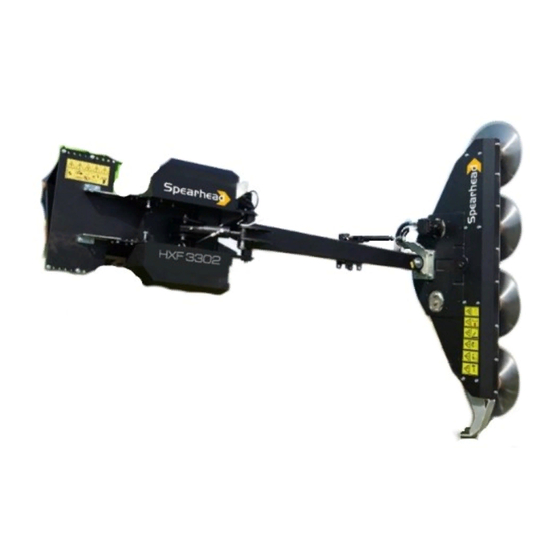

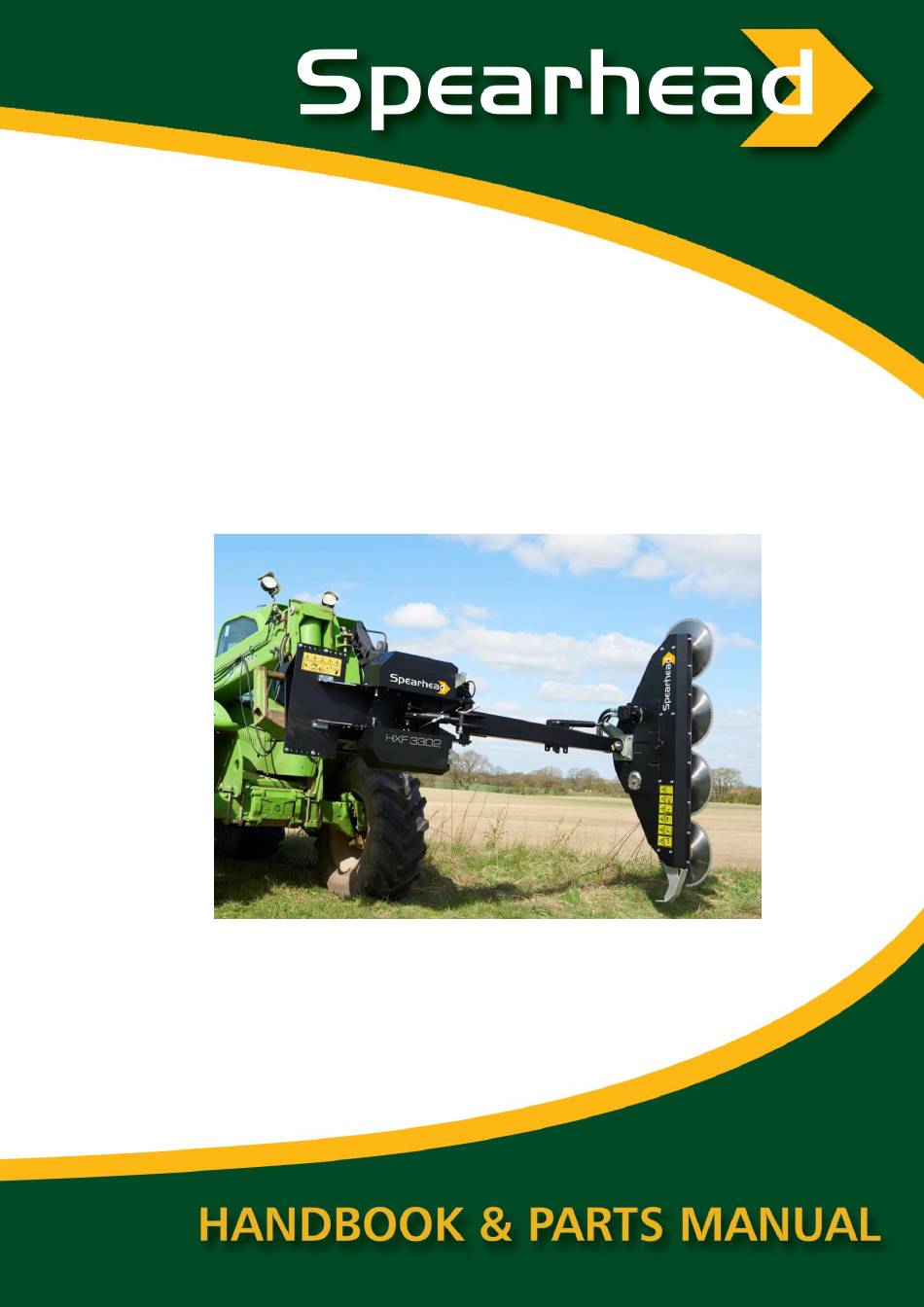

Edition 1.0 - October 2017
Part No. 8999109
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HXF FRAME 2302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spearhead HXF FRAME 2302

Summary of Contents for Spearhead HXF FRAME 2302

  • Page 1 Spearhead HXF FRAME 2302/2802/3302 HXF FRAME 2302/2802/3302 Edition 1.0 - October 2017 Part No. 8999109...

  • Page 2: Spearhead Warranty

    VERIFICATION OF WARRANTY REGISTRATION DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION It is imperative that the selling dealer registers this machine with Spearhead Machinery Limited before delivery to the end user – failure to do so may affect the validity of the machine warranty.
  • Page 3 Warranty Registration in the Operator’s Manual has been completed by the selling dealer. LIMITED WARRANTIES 1.01. All machines supplied by Spearhead Machinery Limited are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 12 months, unless a different period is specified.
  • Page 4 Machinery web site and confirms the registration to the purchaser by completing the confirmation form in the operator’s manual. 2.02. Any fault must be reported to an authorised Spearhead Machinery dealer as soon as it occurs. Continued use of a machine, after a fault has occurred, can result in further component failure for which Spearhead Machinery Ltd cannot be held liable.
  • Page 5 Spearhead HXF FRAME 2302/2802/3302 This machine is produced by Greentec A/S on behalf of Spearhead Machinery Limited. CE Declaration of Conformity, Conforming to EU Machinery Directives 2006/42/EF We, GreenTec A/S, Merkurvej 25, DK-6000 Kolding hereby declare that: Product ……………………………………………..………………………… Product Code ……………………………………………..…………………………...

  • Page 6: Table Of Contents

    Spearhead HXF FRAME 2302/2802/3302 CONTENTS Spearhead Warranty Introduction General Information Vehicle/Tractor Preparation Safety Safety For Maintenance & Operator Safety And Instructional Decals Identification Additional Safety Advice Components Identification Features & Specification Safety Around The Machine Before Starting Work Mounting/Dismounting With A Quadsaw Or Cutter Bar...
  • Page 7 Spearhead HXF FRAME 2302/2802/3302 Breakback System – 2802 Breakback System – 3302 Danfoss PVG Valve – 2802/3302 Splitter Valve Simple – 2302 Splitter Valve Advanced (Option) – 2302 Splitter Valve – 2802 Splitter Valve – 3302 Counterweight (Option) – 2302 RI60/80 Adaptor Kit –...

  • Page 8: Introduction

    Spearhead HXF FRAME 2302/2802/3302 INTRODUCTION The Spearhead HXF Frame is a professional attachment designed specifically for mounting on skid steer and front loaders, telescopic handlers and other types of carriers. A large selection of attachment tools can be fitted to the HXF frame to enable...

  • Page 9: General Information

    Spearhead HXF FRAME 2302/2802/3302 GENERAL INFORMATION Read this manual before fitting or operating the machine or accessory. Whenever any doubt exists contact your local dealer or the Spearhead Machinery Service Department for assistance. Only use ‘Genuine Spearhead Parts’ on Spearhead Machinery and equipment.

  • Page 10: Vehicle/Tractor Preparation

    Spearhead HXF FRAME 2302/2802/3302 VEHICLE/TRACTOR PREPARATION We recommend vehicles are fitted with cabs using ‘safety glass’ windows and protective guarding when used with our machines. Fit the Operator Guard (see drawing) using the hooks provided. Shape the mesh to cover all vulnerable areas.
  • Page 11 Spearhead HXF FRAME 2302/2802/3302 Factors That Affect Stability  Centre of gravity of the tractor/machine combination.  Geometric condition e.g. position of the cutting head and ballast.  Weight, track width and wheelbase of the tractor.  Acceleration, braking, turning and the relative position of the cutting head during these operations.

  • Page 12: Safety

    Spearhead HXF FRAME 2302/2802/3302 SAFETY This machine has the potential to be extremely dangerous – in the wrong hands it can kill or maim; it is therefore imperative that both owner and operator of the machine reads and understands the following section to ensure they are fully aware of the dangers that do, or may exist, and their responsibilities surrounding the use and operation of the machine.

  • Page 13: Safety For Maintenance & Operator

     Maintenance must only be carried out when the machine is at standstill. This procedure as described in Spearhead’s manual must be carefully observed.  When maintaining a HXF frame and/or a machine that is lifted, always secure with suitable support units.

  • Page 14: Safety And Instructional Decals Identification

    Spearhead HXF FRAME 2302/2802/3302 SAFETY AND INSTRUCTIONAL DECALS IDENTIFICATION Warning Warning Stop engine and remove key Avoid fluid escaping under before performing pressure. Consult technical maintenance or repair work. manual for service procedures. Warning Warning Danger – flying objects. Check all nuts and bolts are tight every 8 hours –...

  • Page 15: Additional Safety Advice

    Spearhead HXF FRAME 2302/2802/3302 ADDITIONAL SAFETY ADVICE Training Operators need to be competent and fully capable of operating this machine in a safe efficient way prior to attempting to use it in any public place. We advise therefore that the prospective operator make use of relevant training courses available such as those run by the Agricultural Training Board, Agricultural Colleges, Dealers and Spearhead.
  • Page 16 No advice given here can replace ‘good common sense’ and ‘total awareness’ at all times, but will go a long way towards the safe use of your Spearhead machine.

  • Page 17: Components Identification

    Spearhead HXF FRAME 2302/2802/3302 COMPONENTS IDENTIFICATION a) Mainframe b) Arm c) Head Angle Adjuster Link/Ram (optional) d) Mounting Plate e) Breakback Assembly f) Removable Locking Pin Please note the machine shown above is in Left-hand configuration.

  • Page 18: Features & Specification

    Spearhead HXF FRAME 2302/2802/3302 FEATURES  HXF frame is the most road safe solution on the market.  Professional attachment with an ability to fit a wide range of machines and tools.  Fitted with an automatic hydraulic breakback which is activated by an accumulator fitted within the frame of the HXF.

  • Page 19: Safety Around The Machine

    Spearhead HXF FRAME 2302/2802/3302 SAFETY AROUND THE MACHINE Beware of the following Potential Dangers:  Becoming trapped when hitching or unhitching and when slewing the HXF frame from transport to work position.  Tractor overbalancing when the HXF frame is in work position.
  • Page 20 Spearhead HXF FRAME 2302/2802/3302  Ensure that the tractor meets the minimum weight recommendations of the machine manufacturer and that ballast is used if necessary.  Check that machine fittings and couplings are in good condition.  Follow the manufacturer’s instructions for attachment and removal of the machine from the tractor.
  • Page 21 Spearhead HXF FRAME 2302/2802/3302  Never transport with the controls live, always turn off the isolator switch (red) and disconnect supply.  Transport the machine without the blade protection guards mounted.  Attempt to detect a hydraulic leak with your hand; use a piece of card.

  • Page 22: Before Starting Work

    Spearhead HXF FRAME 2302/2802/3302 BEFORE STARTING WORK: Description of the HXF Frame: Professional attachment designed for mounting on skid steer and front loaders, telescopic handlers and other types of carrier to carry a range of various attachments to cater for the maintenance of windbreaks, hedges, woodlands and under fence mowing.
  • Page 23 Spearhead HXF FRAME 2302/2802/3302 Tool Start:  Choose low engine RPM.  Make sure that the surrounding area is secured.  Warm start – start the tool.  Cold start – never start the tool at maximum speed. Let the tool run without much strain for approximately 15 minutes to heat up the oil.

  • Page 24: Mounting/Dismounting With A Quadsaw Or Cutter Bar

    Spearhead Quadsaw, Cutter Bar and RI barrier mowers. Spearhead’s range of HXF frames are a system designed to be mounted on tractors and telescopic and compact loaders. They have a range of 2.3m (2302), 2.8m (2802) and 3.3m (3302) from the tractor, a 180°...
  • Page 25 Spearhead HXF FRAME 2302/2802/3302 1. Approach slowly. Adjust the angle of the vehicle to the HXF frame to line up the pin holes. Place the pins where required to connect the HXF frame to the loader. For all Quadsaw models, blades must be mounted in downward cutting rotation only.
  • Page 26 Spearhead HXF FRAME 2302/2802/3302 3. Tip the tool to vertical. Then mount the hydraulic hoses and if fitted, the electric cables. Dismounting is done in reverse order. Never use the tool with broken or missing blades/knives.

  • Page 27: Mounting/Dismounting With A Ri60/80 Barrier Mower

    Never use the tool on an unstable or non suitable vehicle. Mounting To An Arm System, Or Similar Tools can be mounted to the arm system with a Quickshift. Spearhead HXF frames are specially designed to fit onto the various models of Spearhead Quadsaw, Cutter Bar and RI barrier mowers.
  • Page 28 Spearhead HXF FRAME 2302/2802/3302 2. After locking the loader and HXF frame together slowly raise the loader. Dismount the supporting leg. 3. Mount the hydraulic hoses and if fitted the electric cables. Dismounting is done in reverse order. Never use the tool with broken or missing blades/knives.

  • Page 29: Transport/Working With The Quadsaw Or Cutter Bar

    Spearhead HXF FRAME 2302/2802/3302 TRANSPORT/WORKING WITH THE QUADSAW OR CUTTER BAR 1. Remove the bolt from the arm. 2. Manually turn the arm 180° from the work position.
  • Page 30 Spearhead HXF FRAME 2302/2802/3302 3. Replace the bolt in the original removed location. Remember the safety pin! 4. Replace the transport protection caps from the cutting tool.

  • Page 31: Transporting The Ri60/80 Barrier Mower

    Spearhead HXF FRAME 2302/2802/3302 TRANSPORTING THE RI60/80 BARRIER MOWER 1. Remove the bolt from the RI60/80 anti collision safety. 2. Remove the bolt from the ram on the HXF frame.

  • Page 32: Work Position Of The Ri60/80 Barrier Mower

    Spearhead HXF FRAME 2302/2802/3302 3. Manually turn the arm to 150° or 180° to place the machine into the work position. WORK POSITION OF THE RI60/80 BARRIER MOWER 1. Mount the bolt to the cylinder. Remember the safety pin! The set is now ready for...

  • Page 33: Work Position Of The Hxf Frame With Various Tools

    Spearhead HXF FRAME 2302/2802/3302 WORK POSITION OF THE HXF FRAME WITH VARIOUS TOOLS 180° with the Quadsaw and Cutter Bar. (Possible with the RI60/80 barrier mower depending on the compact loader.) 150° with the RI60/80 barrier mower.

  • Page 34: Field Of Application

    The Spearhead 2302, 2802 and 3302 HXF frames have been specially designed to be used with Spearhead’s various Quadsaw, Cutter Bar and RI barrier mower machines.

  • Page 35: Extra Equipment

    Spearhead HXF FRAME 2302/2802/3302 EXTRA EQUIPMENT – HXF 2802/3302 Hydraulic Angle Adjustment  This equipment allows you to adjust the cutting angle from the cabin.  Work the machine by using the black switch (2) on the control panel.  Once the correct angle is set you can begin to work.

  • Page 36: Diagrams

    Spearhead HXF FRAME 2302/2802/3302 DIAGRAMS – HXF 2802/3302 Splitter Valve...
  • Page 37 Spearhead HXF FRAME 2302/2802/3302 ELECTRIC DIAGRAM...
  • Page 38 Spearhead HXF FRAME 2302/2802/3302 HYDRAULIC DIAGRAMS...

  • Page 39: Maintenance

     Endangering the environment following a hydraulic oil leak! Only carry out service with machine shut off. The procedure for stopping the machine as described in Spearhead’s manual must be followed. When carrying out maintenance on a lifted machine, secure with suitable support elements.

  • Page 40: Lubrication

    Any damages or leaks must be rectified immediately; is part of the daily maintenance and is your responsibility, to ensure a long reliable working life. Spearhead’s hydraulic system works at very high pressure. When replacing hoses use only genuine hoses. A burst hose could be very dangerous! When replacing hoses avoid twisting fitting, use two spanners to slacken and tighten.
  • Page 41 Spearhead HXF FRAME 2302/2802/3302 Never use grease that contains Molybdenum Disulfide on Nylon bushes. Warning! Hoses are weakened when installed in a twisted position. Also, pressure pulses in a twisted hose tend to fatigue wire and loosen fitting connections. Design so that the machine produces bending rather than torsion.

  • Page 42: Oil Supply

    Spearhead HXF FRAME 2302/2802/3302 OIL SUPPLY Check oil level tank in the tank each day prior to starting work – it is good practice to constantly keep an eye on the sight glass level as a ruptured pipeline can empty a system within minutes;...

  • Page 43: Regular Service Chart

    PINS AND BUSHES All main pivot points are furnished with replaceable bushes. If there are any signs of wear, these must be replaced. All bushes are available from Spearhead’s Parts Department. Never use grease that contains Molybdenum Disulfide on Nylon...

  • Page 44: Storage

    Spearhead HXF FRAME 2302/2802/3302 STORAGE Before storage always wash the machine carefully. Remove all traces of grass and dirt. Be careful and never use a high pressure cleaner close to the lacquer. Steam cleaning must be done with caution. Remove all traces of detergents to avoid discolouration or damage to the lacquer.

  • Page 45: Problem Solving

    Spearhead HXF FRAME 2302/2802/3302 PROBLEM SOLVING Problem Cause Solution Valve or engine Return oil pressure too high Check oil pressure. Free to leak tank. Change washer. Leak oil pressure too high Check oil pressure. Free to tank. Change washer. Return hose not mounted Install correctly or reinstall.

  • Page 46: Correct Lifting Of The Hxf Frame

    CORRECT LIFTING OF THE HXF FRAME Spearhead recommends that the HXF frame is stored on a suitable pallet when not in use. If it needs to be moved use a pallet lifter or forklift. The 2302 weighs 110 kg, the 2802 weighs 150 kg and the 3302 weighs 200 kg.

  • Page 47: Supplier Information & Ce Declaration

    Postcode: WR11 8SW Telephone: +44 (0)1789 491860 Email: enquiries@spearheadmachinery.com CE Declaration: Manufacturer: Spearhead Machinery Limited Telephone: +44 (0)1789 491860 Email: enquiries@spearheadmachinery.com Machine No: Spearhead HXF 2302, Spearhead HXF 2802, Spearhead HXF 3302 Machine Type: Loader Carrier Frame Delivery Date: Delivery Year: 2017...

  • Page 48: Warnings, Bans & Directions

    Spearhead HXF FRAME 2302/2802/3302 WARNINGS, BANS & DIRECTIONS Never attempt any maintenance or adjustment without first disengaging the PTO/hydraulic pump. Only authorised personnel are allowed to do maintenance on the equipment. Read this manual carefully before using the machine.

  • Page 49: Disassembling

    Spearhead HXF FRAME 2302/2802/3302 DISASSEMBLING Machine disengaged from all connections. To ensure the most environmentally friendly removal, the machine must be disassembled and the parts separated as following: Category Example of Parts Rubber & Plastic Hoses, Rubber Guards, Stabilisers, Plastic Strips etc.

  • Page 50: Ordering Parts

    Should you find the information given in this book different to the machine it relates to, please the “After Sales Department” at Spearhead Machinery for advice. Key: LH: Left Hand...

  • Page 51: Armsystem - 2302

    Spearhead HXF FRAME 2302/2802/3302 ARMSYSTEM – 2302...
  • Page 52 Spearhead HXF FRAME 2302/2802/3302 ARMSYSTEM – 2302 ITEM NO. PART NUMBER DESCRIPTION, QTY. 6701506 MAINFRAME 6701507 6701508 HEAD CROWD BRACKET LOOK UNDER “HEAD ANGLE RAM” 6701509 MAIN PIN 6701510 LOOK UNDER “SPLITTER VALVE SIMPLE” 6701002 MOUNTING PLATE FOR VALVE 6706001...

  • Page 53: Armsystem - 2802

    Spearhead HXF FRAME 2302/2802/3302 ARMSYSTEM – 2802...
  • Page 54 Spearhead HXF FRAME 2302/2802/3302 ARMSYSTEM – 2802 ITEM NO. PART NO. DESCRIPTION. QTY. 8281502 MAINFRAME 8281504 8281505 HEAD CROWD BRACKET 8286001 8282001 ADJUSTER BOLT 8331001 MOUNTING PLATE 8281506 STAR PIN 4600135B BUSH 8281001 RETAINING WASHER 8222005 LOCK WASHER 8222006 BOLT...

  • Page 55: Armsystem - 3302

    Spearhead HXF FRAME 2302/2802/3302 ARMSYSTEM – 3302...
  • Page 56 Spearhead HXF FRAME 2302/2802/3302 ARMSYSTEM – 3302 ITEM NO. PART NO. DESCRIPTION. QTY. MAINFRAME BREAKBACK RAM SUPPORT BOLT PIN WITH HANDLE HEAD CROWD BRACKET REINFORCEMENT PLATE REINFORCEMENT PLATE RETAINING WASHER TOP LINK CAT 1 ACCUMULATOR LYNCHI PIN FLANGE BUSH BOLT...

  • Page 57: Head Angle Ram - 2302

    Spearhead HXF FRAME 2302/2802/3302 HEAD ANGLE RAM – 2302 ITEM NO. PART NO. DESCRIPTION. QTY. 6703001 HEAD ANGLE RAM 6703002 NIPPLE W/REDUCTION 6703003 SEAL...

  • Page 58: Head Angle Ram - 2802

    Spearhead HXF FRAME 2302/2802/3302 HEAD ANGLE RAM – 2802 ITEM NO. PART NO. DESCRIPTION. QTY. 8283007 HEAD RAM 6703002 ADAPTOR WITH RESTRICTOR 6703003 BONDED SEAL...

  • Page 59: Head Angle Ram - 3302

    Spearhead HXF FRAME 2302/2802/3302 HEAD ANGLE RAM – 3302 ITEM NO. PART NO. DESCRIPTION. QTY. 481177182 HEAD ANGLE RAM 02BP0604-Ø08 ADAPTOR PPC45-C BONDED SEAL...

  • Page 60: Breakback System - 2302

    Spearhead HXF FRAME 2302/2802/3302 BREAKBACK SYSTEM – 2302 ITEM NO. PART NO. DESCRIPTION. QTY. 6701512 MOUNTING PLATE RAM “BREAKBACK” 6703004 6706006 00.372.01 LYNCH PIN 2770464 WASHER 6702005 6703005 ACCUMULATOR 0.75L 6703006 TEE ADAPTOR 6703007 MINI-MESH 6703008 SOCKET 6703009 REDUCTION 8143005...

  • Page 61: Breakback System - 2802

    Spearhead HXF FRAME 2302/2802/3302 BREAKBACK SYSTEM – 2802 BREAKBACK RAM ITEM NO. PART NO. DESCRIPTION. QTY. 8283017 BREAKBACK RAM 6703013 AIR FILTER 6703012 BANJO BOLT 6703011 BANJO 6703003 BONDED SEAL...
  • Page 62 Spearhead HXF FRAME 2302/2802/3302 BREAKBACK SYSTEM – 2802 ACCUMULATOR ITEM NO. PART NO. DESCRIPTION. QTY. 8281003 BRACKET 6703005 ACCUMULATOR (NOT PRESSURE SET) 6702005 6703009 REDUCTION 6703010 BONDED SEAL 6703006 TEE ADAPTOR 8143005 BONDED SEAL 6703007 MINI-MESH 8222006 BOLT 2770436 FACET WASHER...

  • Page 63: Breakback System - 3302

    Spearhead HXF FRAME 2302/2802/3302 BREAKBACK SYSTEM – 3302 BREAKBACK RAM ITEM NO. PART NO. DESCRIPTION. QTY. 482677062 BREAKBACK RAM BREATHER 52BP06 BANJO BOLT 42BP0406 BANJO PP45-C SEAL...
  • Page 64 Spearhead HXF FRAME 2302/2802/3302 BREAKBACK SYSTEM – 3302 ACCUMULATOR ITEM NO. PART NO. DESCRIPTION. QTY. 05-02-03-18 ver1 BRACKET 3041935 ACCUMULATOR 295359 09BP0804 REDUCTION PP45-D BONDED SEAL 15BP04SP TEE ADAPTOR PP45-B SEAL MT01-104 MINI-MESH 933120302 BOLT 2770436 FACET WASHER 2770412 20BP04...

  • Page 65: Danfoss Pvg Valve - 2802/3302

    Spearhead HXF FRAME 2302/2802/3302 DANFOSS PVG VALVE – 2802/3302 ITEM NO. PART NO. DESCRIPTION. QTY. 11039586 COMPLETE VALVE 157B6709 PRIORITY MODULE (NO. IS STAMPED IN END) 157B6200 MOTOR MODULE (NO. IS STAMPED IN END) 157B6100 TOOL MODULE (NO. IS STAMPED IN END)

  • Page 66: Splitter Valve Simple - 2302

    Spearhead HXF FRAME 2302/2802/3302 SPLITTER VALVE SIMPLE – 2302 ITEM NO. PART NO. DESCRIPTION. QTY. 6703014 SPLITTER VALVE ASSEMBLY...

  • Page 67: Splitter Valve Advanced (Option) - 2302

    Spearhead HXF FRAME 2302/2802/3302 SPLITTER VALVE ADVANCED (OPTION) – 2302 ITEM NO. PART NO. DESCRIPTION. QTY. 6703015 SPLITTER VALVE ASSEMBLY 6703016 COIL 6703017 DOUBLE CHECK VALVE 6703018 SOLENOID 6703019 COIL NOT SHOWN 6703020 ADDITIONAL HOSE KIT FOR ELECTRIC VALVE BANK...

  • Page 68: Splitter Valve - 2802

    Spearhead HXF FRAME 2302/2802/3302 SPLITTER VALVE – 2802 ITEM NO. PART NO. DESCRIPTION. QTY. 8283008 SPLITTER VALVE (NOT ADJUSTED) 8283009 ADAPTOR 8283010 ADAPTOR 8283011 BONDED SEAL PLASTIC LID 8283012 TEE ADAPTOR 8283013 90 DEGREE ANGLE 8283014 CHECK VALVE PLASTIC LID...

  • Page 69: Splitter Valve - 3302

    Spearhead HXF FRAME 2302/2802/3302 SPLITTER VALVE – 3302 ITEM NO. PART NO. DESCRIPTION. QTY. OMC3108 SPLITTER VALVE (NOT ADJUSTED) 01BP12 ADAPTOR 02BP1208 ADAPTOR PP45-F SEAL PLASTIC CAP 34BP12 TEE ADAPTOR 16BP12L 90 DEGREE ANGLE CA19 CHECK VALVE PLASTIC CAP 8281501...

  • Page 70: Counterweight (Option) - 2302

    Spearhead HXF FRAME 2302/2802/3302 COUNTERWEIGHT (OPTION) – 2302 ITEM NO. PART NO. DESCRIPTION. QTY. 6701005 COUNTERWEIGHT 6701006 WEIGHT SUPPORT BRACKET 6702006 BOLT 2770517 WASHER 2770409 LOCKNUT 2770434 WASHER 8362006 BOLT...

  • Page 71: Ri60/80 Adaptor Kit - 2302

    Spearhead HXF FRAME 2302/2802/3302 RI 60/80 ADAPTOR KIT – 2302 ITEM NO. PART NO. DESCRIPTION. QTY. 6701501 6701502 LEG SUPPORT 6701503 MOUNTING BRACKET RI...

  • Page 72: Lrs & Hl Adaptor Kit - 2302

    Spearhead HXF FRAME 2302/2802/3302 LRS & HL ADAPTOR KIT – 2302 LRS BRACKET HL BRACKET ITEM NO. PART NO. DESCRIPTION. QTY. 6701505 MOUNTING BRACKET LRS SAW 6701504 MOUNTING BRACKET HL HEDGECUTTER...

  • Page 73: Decal Kit - 2302/2802/3302

    Spearhead HXF FRAME 2302/2802/3302 DECAL KIT – 2302/2802/3302 ITEM NO. PART NO. DESCRIPTION. QTY. 8770359 ELECTRICUTION DECAL 8770358 REMOVE KEY READ MANUAL DECAL 8770368 FALLING WING DECAL 8770306 TIGHTEN BOLTS 8 HOURS DECAL READ OPERATORS MANUAL – 4 8770363 LANGUAGES DECAL...
  • Page 74 Spearhead HXF FRAME 2302/2802/3302...
  • Page 75 Spearhead HXF FRAME 2302/2802/3302 Spearhead Machinery Green View, Salford Priors, Evesham, Worcestershire, WR11 8SW Tel: 01789 491860 Fax: 01789 778683 www.spearheadmachinery.com enquiries@spearheadmachinery.com...
