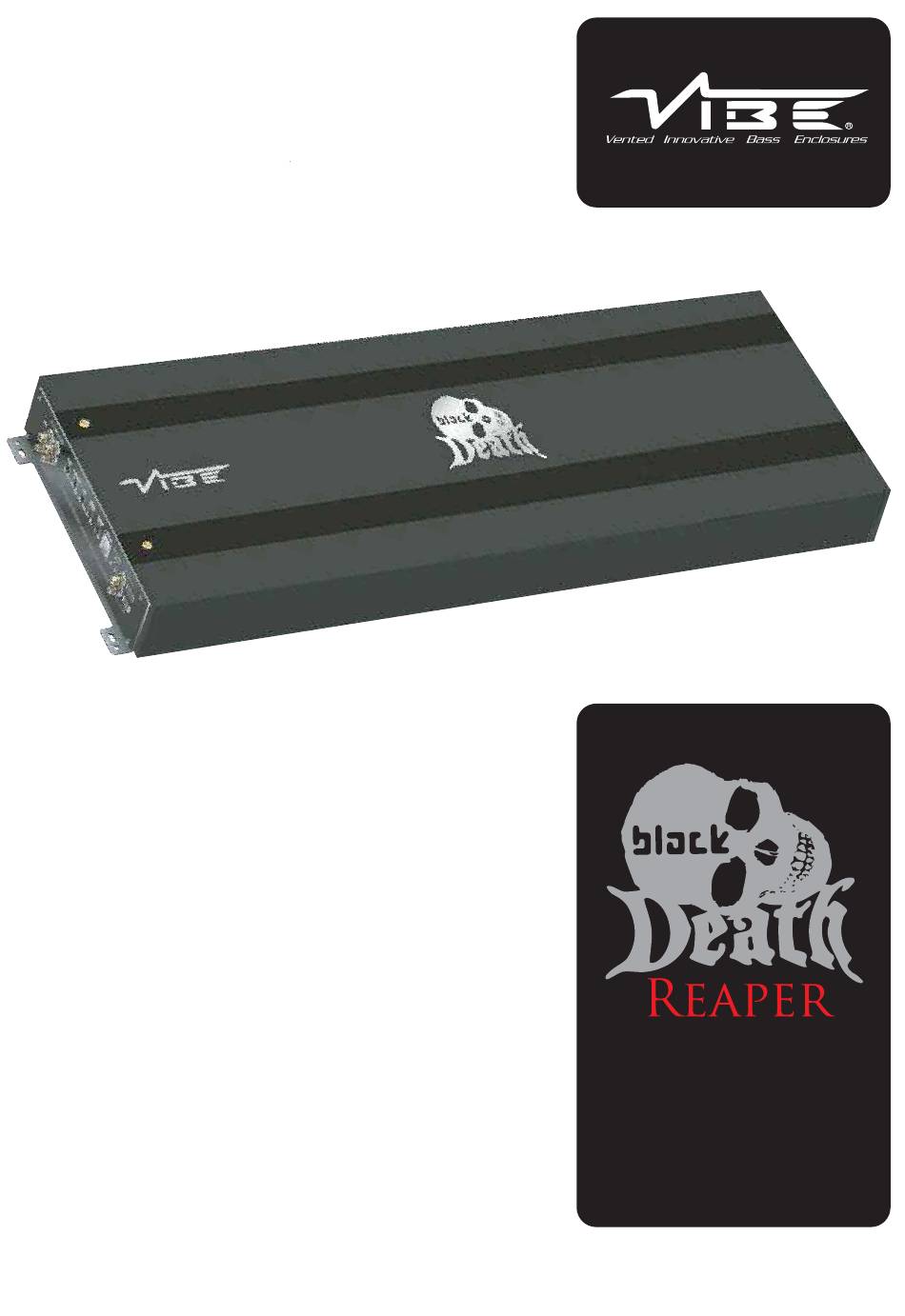

- Page 1 INSTRUCTION MANUA U U L BlackDeath Bass 2 Model: BLACKDEATHBASS2-V1 To ensure maximum performance and safety, please follow this manual. Please retain the manual for future reference after www.vibeaudio.co.uk installation...
- Page 2 Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it. ATTENTION An aftermarket audio amplifier will place an additional load on the vehicles charging system.
-
Page 3: Power Connections
POWER CONNECTIONS Headunit remote turn on Fuse close to battery Chassis ground Battery Battery Battery... - Page 4 TERMINALS AND CONNECTIONS 1. Power Input 1 Only 0 gauge cable should be used for the power and ground connection to the amplifier. The power cable should connect directly to the batteries with a 900 amp fuse inline no further than 18 inches in wire length from the battery and this fuse must be fitted before the power cable enters a bulkhead.
- Page 5 TERMINALS AND CONNECTIONS 2. Power Input 1 Only 0 gauge cable should be used for the power and ground connection to the amplifier. The power cable should connect directly to the batteries with a 900 amp fuse inline no further than 18 inches in wire length from the battery and this fuse must be fitted before the power cable enters a bulkhead.
-
Page 6: Set Up Section
By using the crossovers correctly you will not only lengthen the life of your speakers but you will also get better performance from them. To optimise your setup seek the advice of a professional installation engineer or visit your local VIBE audio dealer. - Page 7 AMPLIFIER STRAPPING Two VIBE BlackDeath Bass 2 amplifiers are capable of being strapped together to deliver the combined output of both amplifiers into a single channel. NOTE: only identical amplifiers may be strapped together. Strapping procedure · Connect the RCA input from the source unit to the left and right RCA input of the master amplifier.
- Page 8 SINGLE AMPLIFIER CONFIGURATION...
- Page 9 STRAPPED AMPLIFIER CONFIGURATION...
-
Page 10: Specifications
SPECIFICATIONS Model: BLACKDEATHBASS2-V1 Technical Enquires Dimensions: call 09067031420 Width: 1000mm (39.4”) Depth: 300mm (11.8”) Height: 75mm (3”) Calls cost 50p per minute Frequency response: 10Hz - 350Hz call costs correct at date of publication (01/05/11) Hours of business 9.00am - 5.30pm Total harmonic distortion (THD): all calls are recorded for training purposes Signal to noise ratio (SNR):... -
Page 11: Limited Warranty
For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to the extent only that it arises as a result of negligence of VIBE, its affiliates, directors,...
