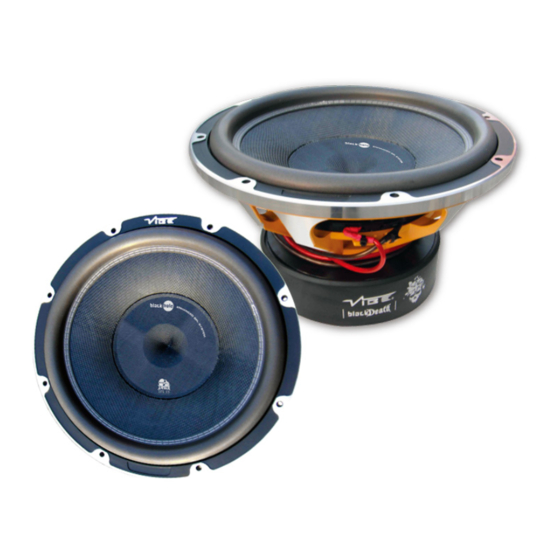

- Page 1 Component Subwoofers Model: BDCSPL15-V2 BDSPL15-V2...
-
Page 2: Owners Manual
Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it. -
Page 3: Limited Warranty
For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to the extent only that it arises as a result of negligence of VIBE, its affiliates, directors, employees or other... -
Page 4: Specification
450oz RUN IN PROCEDURE VIBE recommends that you follow the run in procedure for the subwoofer detailed below. f and rigid. It will take time for the moving parts of this Subwoofer to loosen up before the subwoofer will be ready to deliver its full potential. - Page 5 BD15SPL-V2 - 4Ω SERIES WIRING BD15SPL-V2 - 1Ω PARALLEL WIRING...
- Page 6 BDC15SPL-V2 - 0.5Ω PARALLEL WIRING WARNING VIBE does NOT recommend 0.5Ω wiring with any of it’s amplifiers. The above diagram is for illustrative purposes only and you must check with your amplifier handbook to ensure that your amplifier is capable of driving a 0.5Ω impedance...
- Page 7 VENTED ENCLOSURE INSTALLATION A vented (also known as ported) enclosure is not much more complex than a sealed design. It consists of a box with a hole in it. The vented enclosure has to be correctly designed in order to function correctly. The vent in the enclosure interacts with the air in the cabinet and the woofer to increase output and reduce cone excursion at and around the tuning frequency.
- Page 8 Use at least 3/4 inch MDF (medium density fibreboard) or Birch ply to construct your enclosure and at least 1 inch is recommended for the baffle. It is recommend that the panels are glued, screwed and braced with sections of the same material you have used to build the enclosure from.
- Page 9 ENCLOSURE VOLUME (CONT) If we require a volume of 2.5cuft then we multiply this by 1728 2.5 x 1728= 4320 cubic inches. nclosure We now take 2 known enclosure dimensions that we will use, e.g height and width and divide glued, If we require a volume of 2.5cuft then we multiply this by 1728 2.5 x 1728= 4320 cubic inches.
- Page 10 TS PARAMETERS BD15SPL-V2 Series Parallel FS (HZ) 33.5Hz 33.9Hz L (mH): 7.332 1.722 Z (Ohm): 4Ω 1Ω Re (Ohm): 3.6Ω 0.9Ω SD:(msqM): 80.425 80.425 BL (Tm): 32.751 14.902 QMS: 3.493 4.602 QES: 0.35 0.407 QTS: 0.318 0.374 0.447 0.427 SPL (dB@1W/m): 88.5 88.4 SPL (dB@2.83v/m):...
- Page 11 UK TECHNICAL ENQUIRIES Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) Hours of business 9.00am - 5.30pm GMT Monday - Friday. All calls are recorded for training purposes. MIDBASS Distribution PO Box 11000 B75 7WG INTERNATIONAL TECHNICAL ENQUIRIES For international technical support please contact the distribution agent for your country.
- Page 12 www.vibeaudio.co.uk www.youtube.com/vibeaudio www.facebook.com/vibeaudio www.twitter.com/vibeaudio...
