BENDIX SmarTire Installation Instructions

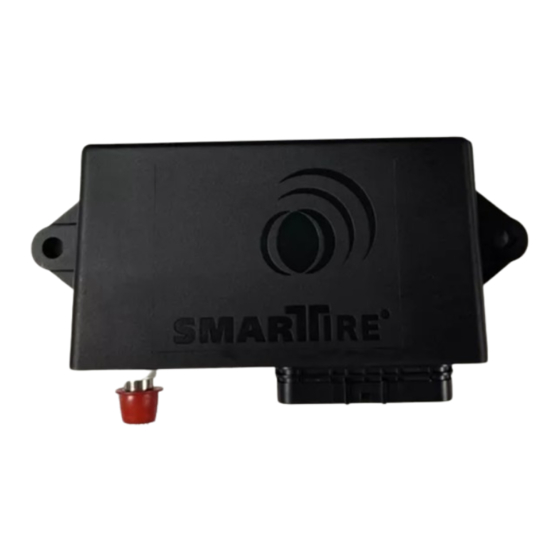

SmarTire Tire Pressure Monitoring System (TPMS) by Bendix CVS
®
Replacement Service Kit
KIT COMPONENTS
The following components are in the SmarTire
Pressure Monitoring System (TPMS) by Bendix CVS
service kit:
Component
Electronic Control Unit (ECU)
Washer
Nut
Patch Cable
BACK UP THE CURRENT TPMS SETTING
1. If the current Electronic Control Unit (ECU) can
communicate on the CAN bus, use the Bendix
PRO diagnostic software connected to the vehicle
™
diagnostic port.
2. Select the Bi-Directional tool bar icon, and then start
the TPMS Backup and Restore application.
3. Select the Save Settings button to create a backup of
the ECU parameters to your computer.
REMOVING THE PREVIOUS ECU
1. Unscrew the existing antenna connector from the
ECU (1). See Figure 1.
2. Unplug the main harness from the existing TPMS
ECU (2).
Figure 1 - Removing the Previous ECU
Tire
®
Quantity
1
2
2
1
ACom
® ®
2
1
GENERAL SAFETY GUIDELINES
WARNING! PLEASE READ AND
FOLLOW THESE INSTRUCTIONS
TO AVOID PERSONAL INJURY OR DEATH:
When working on or around a vehicle, the following
guidelines should be observed AT ALL TIMES:
▲Park the vehicle on a level surface, apply the parking
brakes, and always block the wheels. Always wear personal
protection equipment.
▲Stop the engine and remove the ignition key when working
under or around the vehicle. When working in the engine
compartment, the engine should be shut off and the ignition
key should be removed. Where circumstances require that
the engine be in operation, EXTREME CAUTION should be
used to prevent personal injury resulting from contact with
moving, rotating, leaking, heated, or electrically charged
components.
▲Do not attempt to install, remove, disassemble, or
assemble a component until you have read, and thoroughly
understand, the recommended procedures. Use only the
proper tools and observe all precautions pertaining to use
of those tools.
▲If the work is being performed on the vehicle's air brake
system, or any auxiliary pressurized air systems, make
certain to drain the air pressure from all reservoirs before
beginning ANY work on the vehicle. If the vehicle is
equipped with a Bendix AD-IS
®
DRM dryer reservoir module, a Bendix
™
or AD-HFi air dryer, be sure to drain the purge reservoir.
™
▲ Following the vehicle manufacturer's recommended
procedures, deactivate the electrical system in a manner
that safely removes all electrical power from the vehicle.
▲Never exceed manufacturer's recommended pressures.
▲Never connect or disconnect a hose or line containing
pressure; it may whip and/or cause hazardous airborne
dust and dirt particles. Wear eye protection. Slowly open
connections with care, and verify that no pressure is
present. Never remove a component or plug unless you are
certain all system pressure has been depleted.
▲ Use only genuine Bendix
®
components, and kits. Replacement hardware, tubing, hose,
fi ttings, wiring, etc. must be of equivalent size, type, and
strength as original equipment and be designed specifi cally
for such applications and systems.
▲Components with stripped threads or damaged parts should
be replaced rather than repaired. Do not attempt repairs
requiring machining or welding unless specifi cally stated
and approved by the vehicle and component manufacturer.
▲Prior to returning the vehicle to service, make certain all
components and systems are restored to their proper
operating condition.
▲ For vehicles with Automatic Traction Control (ATC), the ATC
function must be disabled (ATC indicator lamp should be
ON) prior to performing any vehicle maintenance where
one or more wheels on a drive axle are lifted off the ground
and moving.
▲The power MUST be temporarily disconnected from the
radar sensor whenever any tests USING A DYNAMOMETER
are conducted on a vehicle equipped with a Bendix
Wingman system.
®
▲You should consult the vehicle manufacturer's operating
and service manuals, and any related literature, in
conjunction with the guidelines above.
air dryer system, a Bendix
® ®
AD-9si , AD-HF ,
® ® ®
brand replacement parts,
®
1
