Instruction Manual

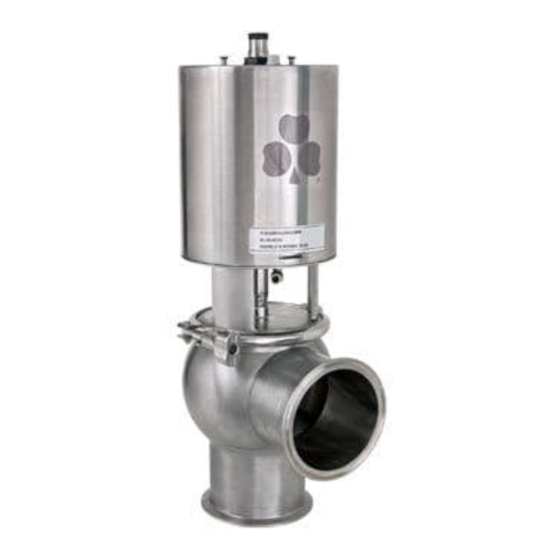

Unique SSV Aseptic Valve
ESE00579-ENUS5
Original manual
2019-03
ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSI SSV PN10 and is the answer not in the manual?

Questions and answers

Related Manuals for Alfa Laval CSI SSV PN10

Summary of Contents for Alfa Laval CSI SSV PN10

  • Page 1 Instruction Manual Unique SSV Aseptic Valve ESE00579-ENUS5 2019-03 Original manual ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 2 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 3: Table Of Contents

    7.2. Unique SSV Aseptic Valve - shut-off ............7.3. Unique SSV Aseptic Valve - Change-over ............7.4. Maintainable actuator ................CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 4: Ec Declaration Of Conformity

    Lars Kruse Andersen Global Product Quality Manager Pumps, Valves, Fittings and Tank Equipment Title Name Kolding 2016-06-01 Place Date Signature CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 5: Safety

    Y Y e e a a r r o o f f p p r r o o d d u u c c t t i i o o n n From 2006 From 2006 to June 2016 From June 2016 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 6: Warning Signs

    DO NOT ATTEMPT TO CUT ACTUATOR OPEN REFER TO SERVICE BULLETIN (The lock wire opening is locked) CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 7: Safety Precautions

    - Support air on high pressure actuator versions is N N O O T T allowed To prevent shock in the actuator and to prevent exceeding 145 PSI (10 bar) product pressure, Alfa Laval recommends N N O O T T to exceed 43.5 PSI (3 bar) support air on the spring side in all the Unique SSV actuators.
  • Page 8 N N e e v v e e r r touch moving parts if the actuator is supplied with compressed air A A l l w w a a y y s s use Alfa Laval genuine spare parts WARNING...

  • Page 9: Unpacking/Delivery

    C C A A U U T T I I O O N N 1. Complete valve, shut-off valve or change-over valve (see steps 2a and 2b). Alfa Laval cannot be held responsible for incorrect unpacking. 2. Delivery note. 3. Instruction manual.
  • Page 10 Remove possible packing materials from the valve/valve parts. Inspect the valve/valve parts for visible transport damages. Avoid damaging the valve/valve parts. CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 11: General Installation

    - C C A A U U T T I I O O N N Do N N O O T T attempt to disassemble the actuator due to Alfa Laval cannot be held responsible for incorrect installation. spring under load danger.
  • Page 12 1. is visible, when mounting the valve vertically 2. always is downwards due to self-draining, when the valve is mounted horizontally. * = Leakage detection hole CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 13: Welding

    P P a a y y s s p p e e c c i i a a l l a a t t t t e e n n t t i i o o n n t t o o t t h h e e w w a a r r n n i i n n g g s s ! ! Open/close! CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 14: Recycling Information

    When in doubt, or in the absence of local regulations, please contact your local Alfa Laval sales company. If the actuator is marked with a danger warning, do not attempt to cut the actuator open.

  • Page 15: Operation

    - A A l l w w a a y y s s read the technical data thoroughly. See section 6 Technical data. WARNING - A A l l w w a a y y s s use Alfa Laval genuine spare parts. SPRING UNDER LOAD The warranty of Alfa Laval products is dependent on use of...
  • Page 16 1. Ensure smooth movement of the actuator (the actuator is lubricated before delivery). 2. Lubricate all seals with Molykote Longterm 2 plus if necessary. TD 461-687 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 17: Troubleshooting

    If marked with a danger warning, do N N O O T T attempt to cut the actuator open, due to spring under load. CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 18: Recommended Cleaning

    26.4 gal 33% NaOH water 2. 0.5% by weight HNO at 158 Cleaning agent. 0.2 gal 26.4 gal 53% HNO water CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 19 N N O O T T E E Clean water Cleaning agents The cleaning agents must be stored/disposed of in accordance with current regulations/directives. CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 20: General Maintenance

    - A A l l w w a a y y s s read the technical data thoroughly. WARNING See section 6 Technical data. - A A l l w w a a y y s s use Alfa Laval genuine spare parts. SPRING UNDER LOAD DO NOT ATTEMPT TO CUT ACTUATOR OPEN...
  • Page 21 R R e e c c o o m m m m e e n n d d e e d d s s p p a a r r e e p p a a r r t t s s Service kits (see section 7 Parts list and Service Kits) CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 22: Dismantling Of Valve

    Remove the air drain hose Ensure pipe is empty and not pressurized and then loosen the clamp. Drain hose connection 2205-0063 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 23 Loosen the plug from the actuator by usning two 17 mm spanners 2205-0009 S S t t e e p p 3 3 Remove the bonnet 2205-0007 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 24 If necessary the bushing (24) in the bonnet can be replaced Clean all parts and replace diaphragm and plug seal 2205-0005 2205-0050 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 25: Dismantling Change-Over Valve

    Diaphragm Mechanical stop TD 461-1012 Upper clamp Place the plug in upper position and loosen the upper clamp. TD 461-1013 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 26 This makes the reassembly much easier, as the valve can be mounted up in the same position in the workshop. 2205-0065 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 27 D D A A N N G G E E R R ! ! Finger cuts at “bonnet” and “seat ring” 2205-0068 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 28 Loosen the spindle from the plug. Use two 17 mm spanners. It is easiest to use a vice. 2205-0029 2205-0028 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 29 The leakage fitting in the bonnet does not need to be dismounted 2205-0041 S S t t e e p p 7 7 Dismount upper valve body from the plug/seat. 2205-0042 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 30 It is also possible to use a screw driver between the bonnet and valve. There is an “opening” marked in the bonnet where the screw driver can be fitted. TD 461-752 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 31 It is important that the flat side of the disc is upwards. The bushing (24) in the bonnet can be replaced, if necessary. 2205-0019 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 32: Plug Seal Replacement

    4. The seal ring can now be mounted by hand or with the Alfa Laval plug tool. Drawing 2 2200-0094 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 33 Be careful not to make marks on the surface of the plug and seal ring (see drawing 5). Bulge - incorrect installation Drawing 5 2200-0122 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 34 This is done with a screwdriver and always underneath the E. Grease Paralique GTE703 plug as shown (see drawing 4). from service kit F. Screwdriver (no sharp corner) CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 35: Assembly Of Shut-Off Valve

    Before mounting all parts must be cleaned A. Actuator B. Spindel C. Bonnet D. Disc E. Diaphragm F. Plug 2205-0001 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 36 It is important that the flat side of the disc is upwards. 2205-0003 S S t t e e p p 4 4 Mount spindle. 2205-0004 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 37 Make sure that the diaphragm is securely mounted on the bonnet before installing the complete diaphragm/stem into the valve body. TD 461-700 2205-0007 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 38 2” - 4” to a Torque of 25 lbf-ft (33 Nm) 1” - 1½” to a Torque of 13 lbf-ft (17 Nm) Use two 17 mm spanners 2205-0009 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 39 Now move the actuator stem in top position and press H H A A R R D D on top of the actuator to reduce the gap to approx. 1/25 inch (1 mm). CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 40 Grease the thread with Molykote. Place a hose in the fitting in the sealing element (hole for leakage detection). 2205-0070 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 41: Assembly Of Change-Over Valve

    We recommend to use some water to "grease" on the bonnets round edge, before mounting the diaphragm. This makes it much easier to mount diaphragm correctly. 2205-0006 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 42 The sealing surface must be clean to avoid leakage. 2205-0021 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 43 ø0,08 inch (ø2 mm) 2205-0023 ø0,012 inch (ø3 mm) CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 44 (This can make it difficult to dismount the valve next time service is carried out.) 2205-0025 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 45 Remember to mount the leakage fitting in the bonnet! 2205-0027 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 46 D D A A N N G G E E R R ! ! Finger cut at “bonnet” and “uper valve body”. 2205-0030_1 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 47 Align upper valve body and actuator if necessary. This is done by rotating the valve body only clockwise (only the valve body can rotate as diaphragm is locked). 2205-0032 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 48 D D A A N N G G E E R R ! ! Finger cut at "bonnet" and "seat ring" 2205-0033 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 49 Lower clamp dismounted The plug is overstretching the diaphragm as it moves approx. 1/2 inch further downwards TD 461-1014 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 50 Do N N E E V V E E R R dismount lower clamp unless the plug is in upper position, as the diaphragm will be destroyed if the plug moves to lower position (see also Step 16). 2205-0072 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 51 Do N N E E V V E E R R dismount lower clamp unless the plug is in upper position, as the diaphragm will be destroyed if the plug moves to lower position (see also Step 16). 2205-0073 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 52: Actuator Types

    Y Y e e a a r r o o f f p p r r o o d d u u c c t t i i o o n n From 2006 From 2006 to June 2016 From June 2016 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 53: Actuator Bushing Replacement (Non-Maintainable Actuator)

    - Always lubricate the spindle and O-rings thoroughly with “Molykote Longterm 2 Plus” before mounting the new bushings. DO NOT DISASSEMBLE 2200-0099 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 54 bushing.
  • Page 55 S S t t e e p p 5 5 Remove adapter screw. (After spindle alignment the adapter screw has to be remounted.) DO NOT DISASSEMBLE 2200-0102 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 56 Fit the aligning spindle to the actuator spindle, and then mount the socket wrench. DO NOT DISASSEMBLE DO NOT DISASSEMBLE 2200-0105 2200-0104 Aligning spindle Socket wrench CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 57 The bushing must only be tightened with a torque of 8 lbf-ft (10 Nm) which can be done by turning “hard” by hand. DO NOT DISASSEMBLE 2200-0106 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 58: Dismantling Of Fully Maintainable Actuator (Removable Yoke With Bolts/2006-June 2016)

    6. Remove O-rings and support disc. N N o o t t e e ! ! The A/A actuator has no spring assembly. 2200-0107 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 59: Dismantling Of Fully Maintainable Actuator (Yoke Without Bolts/June 2016 -> )

    Tighten bushings to a torque of 7 lbf-ft (10 Nm). Be careful not to overtighten the bushings. See also section 5.8 Actuator bushing replacement (non-maintainable actuator) CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 60: Changing Pneumatic Movement On Fully Maintainable Actuator (Nc/No)

    N N O O T T E E The A/A actuator has no spring assembly 2200-0032 Pneumatic movement Pneumatic movement upwards downwards CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 61: Technical Data

    3 ft away from and 5 ft above the exhaust the noise level of a valve actuator will be approximately 77db (A) without noise damper and approximately 72 db (A) with damper - measured at 7 bar air-pressure. CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 62: Parts List And Service Kits

    DO NOT DISASSEMBLE DO NOT DISASSEMBLE 23.2 2205-0074_1 23.1 27.1 27.2 27.2 2205-0075_1 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 63 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 64: Unique Ssv Aseptic Valve - Shut-Off

    DO NOT DISASSEMBLE 23.1 23.2 2205-0076_1 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 65 Parts marked with • are included in the service kits (product wetted parts). Recommended spare parts: Service kits. TD 900366/6 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 66: Unique Ssv Aseptic Valve - Change-Over

    DO NOT DISASSEMBLE 27.1 25 mm / DN 25 38-51 mm / DN 40-50 63.5-101.6 mm / DN 65-100 27.2 2205-0077_1 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 67 Parts marked with • are included in the service kits (product wetted parts). Recommended spare parts: Service kits. TD 900366/6 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...

  • Page 68: Maintainable Actuator

    2200-0151_1 *) Removal yoke with bolts version, produced from 2006 to June 2016. Phased out with yoke without bolts (13) CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 69 9 9 6 6 1 1 1 1 9 9 2 2 6 6 5 5 2 2 1 1 CONTACT CSI FOR MORE INFORMATION | CSIDESIGNS.COM | SALES@CSIDESIGNS.COM | 417.831.1411 ALFA LAVAL UNIQUE SSV ASEPTIC VALVE INSTRUCTION MANUAL—REV 3/19...
  • Page 70 © Alfa Laval Corporate AB This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing intellectual property and thereto related rights. It is the responsibility of the user of this document to comply with all applicable intellectual property laws. Without limiting any rights related to this document, no part of this document may be copied, reproduced or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the expressed permission of Alfa Laval Corporate AB.
