PHOTONIS PD-PRO-16M Quick Start Manual

Maintenance of the PD-PRO-16M

Cleaning Instructions:

1. Remove any dust and dirt using a cleaning brush or air pressure.
2. If available, apply a light coat of demist compound to the lenses and wipe off with a clean flannel cloth.

NVG Inspection:

1. Inspect NVG lenses for cracks, scratches or chips.
2. Check that the range focus ring rotates freely in both directions.
3. Check that the threads (for sacrificial window) on the objective and eyepiece housing are not damaged.
4. Inspect NVG exterior surfaces for damage and loose parts or screws.
5. Check that the daylight covers are properly seated and secure.
6. Inspect function switch for completeness and security (ensure in the OFF position).
7. Check that the function switch can be moved to all three positions. Must pull the switch out before
setting to ON-V or IR.
8. Check the battery cap and compartment are complete and free of corrosion.
9. Inspect NVG mounting recess for damage.
10. Check the diopter focus ring to ensure it rotates freely in both directions.
11. Inspect eyecup for damage and perforations and ensure it rotates freely.

Inspect the Sacrificial Windows:

1. Inspect lenses for cracks, scratches or chips.
2. Inspect the sacrificial window's threads for damage.
3. Check that the sacrificial window's seal is in place; properly lubricate with DC-4 grease.
Download the full maintenance manual
using the QR Code provided above.
Night Vision Night Vision

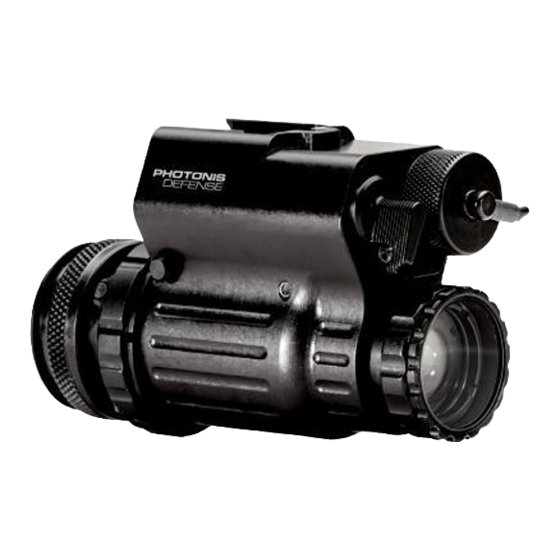

PD-PRO-16M
