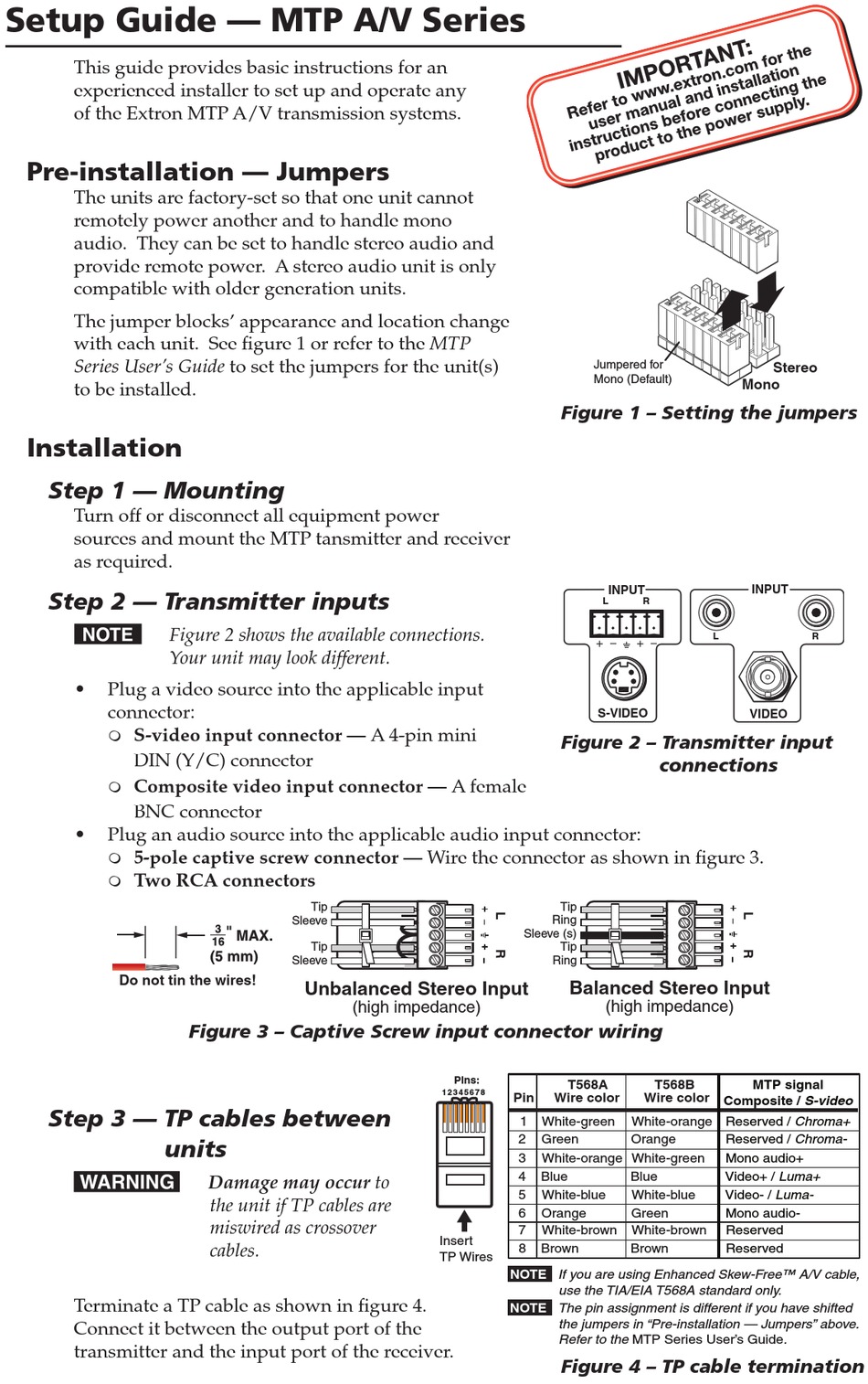

Setup Guide — MTP A/V Series
This guide provides basic instructions for an
experienced installer to set up and operate any
of the Extron MTP A/V transmission systems.
Pre-installation — Jumpers
The units are factory-set so that one unit cannot
remotely power another and to handle mono
audio. They can be set to handle stereo audio and
provide remote power. A stereo audio unit is only
compatible with older generation units.
The jumper blocks' appearance and location change
with each unit. See figure 1 or refer to the MTP
Series User's Guide to set the jumpers for the unit(s)
to be installed.
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power
sources and mount the MTP tansmitter and receiver
as required.
Step 2 — Transmitter inputs
N
Plug a video source into the applicable input
•
connector:
S-video input connector — A 4-pin mini

DIN (Y/C) connector
Composite video input connector — A female

BNC connector
• Plug an audio source into the applicable audio input connector:
5-pole captive screw connector — Wire the connector as shown in figure 3.

Two RCA connectors

Do not tin the wires!
Step 3 — TP cables between
units
W
Terminate a TP cable as shown in figure 4.
Connect it between the output port of the
transmitter and the input port of the receiver.
Figure 2 shows the available connections.
Your unit may look different.
Tip
Sleeve
Tip
Sleeve
Unbalanced Stereo Input
Figure 3 – Captive Screw input connector wiring
Damage may occur to
the unit if TP cables are
miswired as crossover
cables.
(high impedance)
Pins:
1 2 3 4 5 6 7 8
Pin
Insert
TP Wires
NOTE
NOTE
Jumpered for
Mono (Default)
Figure 1 – Setting the jumpers
INPUT
L R
S-VIDEO
Figure 2 – Transmitter input
connections
Tip
Ring
Sleeve (s)
Tip
Ring
Balanced Stereo Input
(high impedance)
T568A T568B
Wire color Wire color
1 White-green White-orange
2 Green Orange
3 White-orange White-green
4 Blue Blue
5 White-blue White-blue
6 Orange Green
7 White-brown White-brown
8 Brown Brown
If you are using Enhanced Skew-Free™ A/V cable,
use the TIA/EIA T568A standard only.
The pin assignment is different if you have shifted
the jumpers in "Pre-installation — Jumpers" above.
Refer to the MTP Series User's Guide.
Figure 4 – TP cable termination
Stereo
Mono
INPUT
L R
VIDEO
MTP signal
Composite / S-video
Reserved / Chroma+
Reserved / Chroma-
Mono audio+
Video+ / Luma+
Video- / Luma-
Mono audio-
Reserved
Reserved
