OWNER’S
MANUAL

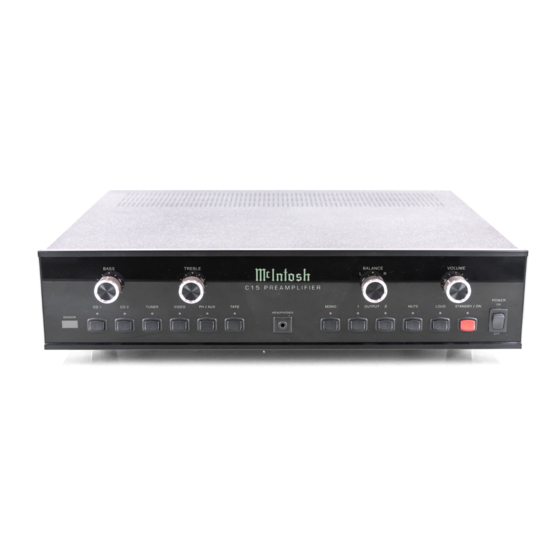

C15 Preamplifier
C15
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C15 and is the answer not in the manual?

Questions and answers

Summary of Contents for McIntosh C15

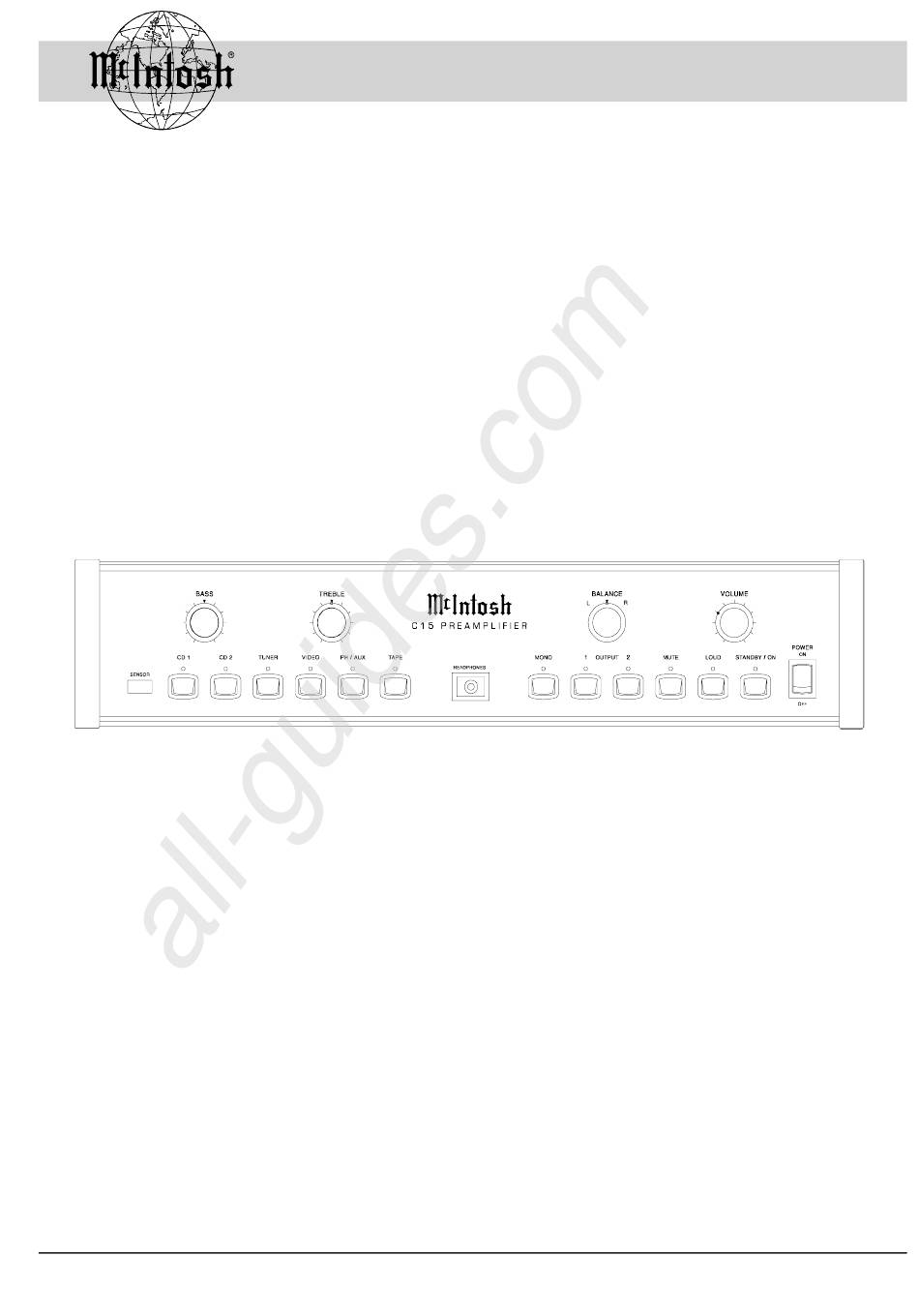

  • Page 1 All manuals and user guides at all-guides.com OWNER’S MANUAL C15 Preamplifier McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
  • Page 2: Purchase Date

    Customer Service and Table of Contents Thank You Table of Contents Please Take A Moment NOTES: 1. Connecting Cables are available from the McIntosh Parts Serial Number: Department: Data and Power Control Cable Part No. 170-202 Purchase Date: Six foot, shielded 2 conductor, with 1/8 inch stereo mini phone plugs on each end.
  • Page 3: Important Safety Instructions

    All manuals and user guides at all-guides.com Safety Instructions IMPORTANT SAFETY Attention: pour pevenir les chocs elecriques pas INSTRUCTIONS! utiliser cette fiche polarisee avec un prolongateur, une prise de courant ou un autre sortie de courant, sauf si les lames peuvent etre inserees afond ans en PLEASE READ THEM BEFORE laisser aucune partie a decouvert.
  • Page 4: Performance Features

    All manuals and user guides at all-guides.com Safety Instructions con’t, Introduction and Performance Features Introduction Care of Equipment: Performance Features · Multiple Inputs · Tone Control Bypass Repair of Equipment: · Loudness Circuity · Electronic Input Switching · Output and Speaker Switching ·...
  • Page 5: Installation

    All manuals and user guides at all-guides.com Installation Installation 17-1/2" 444mm 7/32" 17-1/16" 5.3mm 433.4mm 1/4" Outline of Front Panel Edge of Cutout End Caps Panel Height 3-1/16" 3-9/16" 3 1/2" 77.8mm (Front View) 90.0mm 88.9mm 3/16" 5.1mm Support Shelf Bottom of Cutout and Top of Support Shelf Must Coincide...
  • Page 6 All manuals and user guides at all-guides.com C15 Rear Panel Connections C15 Rear Panel Connections DATA PORTs send PROCESSOR TUNER inputs GND terminal signals to compat- FROM and TO accept signals accepts a ible source compo- jacks for a signal...
  • Page 7 How to Connect the C15 How to Connect the C15 NOTE: When a signal processor is connected and the C15 IN- OUT PROCESSOR Switch is set to the IN position,, the processor must be on, or in bypass mode, for a signal to pass through the preamplifier.
  • Page 8 All manuals and user guides at all-guides.com How to Connect the C15 for Video Switching How to Connect the C15 for Video Switching Monitor McIntosh Video/Audio Selector McIntosh Video Disc Player...
  • Page 9 All manuals and user guides at all-guides.com C15 Front Panel Controls, Push- Buttons and Switches C15 Front Panel Controls, Push-Buttons and Switches The BALANCE control POWER TREBLE control provides 12dB boost or cut with a allows you to adjust the...
  • Page 10 How to Operate the C15 How to Operate the C15 Power On Bass and Treble Controls Mono Mute Figure 1 Note: You may also turn on the C15 using the HR033 Remote Control. Source Selection PH/AUX Inputs Figure 3 Loud Switch Figure 2...
  • Page 11 IN position,, the processor must be on, or in bypass mode, for a Figure 5 signal to pass through the preamplifier. How To Make A Tape Recording NOTE: The C15 TAPE OUTPUTS are not affected by the VOLUME or BALANCE controls.
  • Page 12: Hr033 Push-Buttons

    Controller puts 1 and 2 Press to turn the entire C15 sys- tem off Mutes the audio Press to turn the C15 ON Adjusts the volume or OFF level up or down Turns power ON to a component connected via the Data Port.
  • Page 13 Home Input Source Selection Video/Audio Selection Acc On NOTE: When other brands of components are connected with a McIntosh Remote Control Translator (RCT), refer to the RCT Owner’s Manual for further information on alternate HR033 CD/Tape push-button functions. Numbered Push-buttons...
  • Page 14: Specifications

    Specifications Frequency Response Dimensions Total Harmonic Distortion Weight Signal To Noise Ratio Maximum Voltage Output Output Impedance Sensitivity Input Impedance Maximum Input Signal Tone Controls Power Requirements NOTE: Refer to the rear panel of the C15 for the correct voltage...
  • Page 15 All manuals and user guides at all-guides.com Packing Instructions Packing Instructions...
