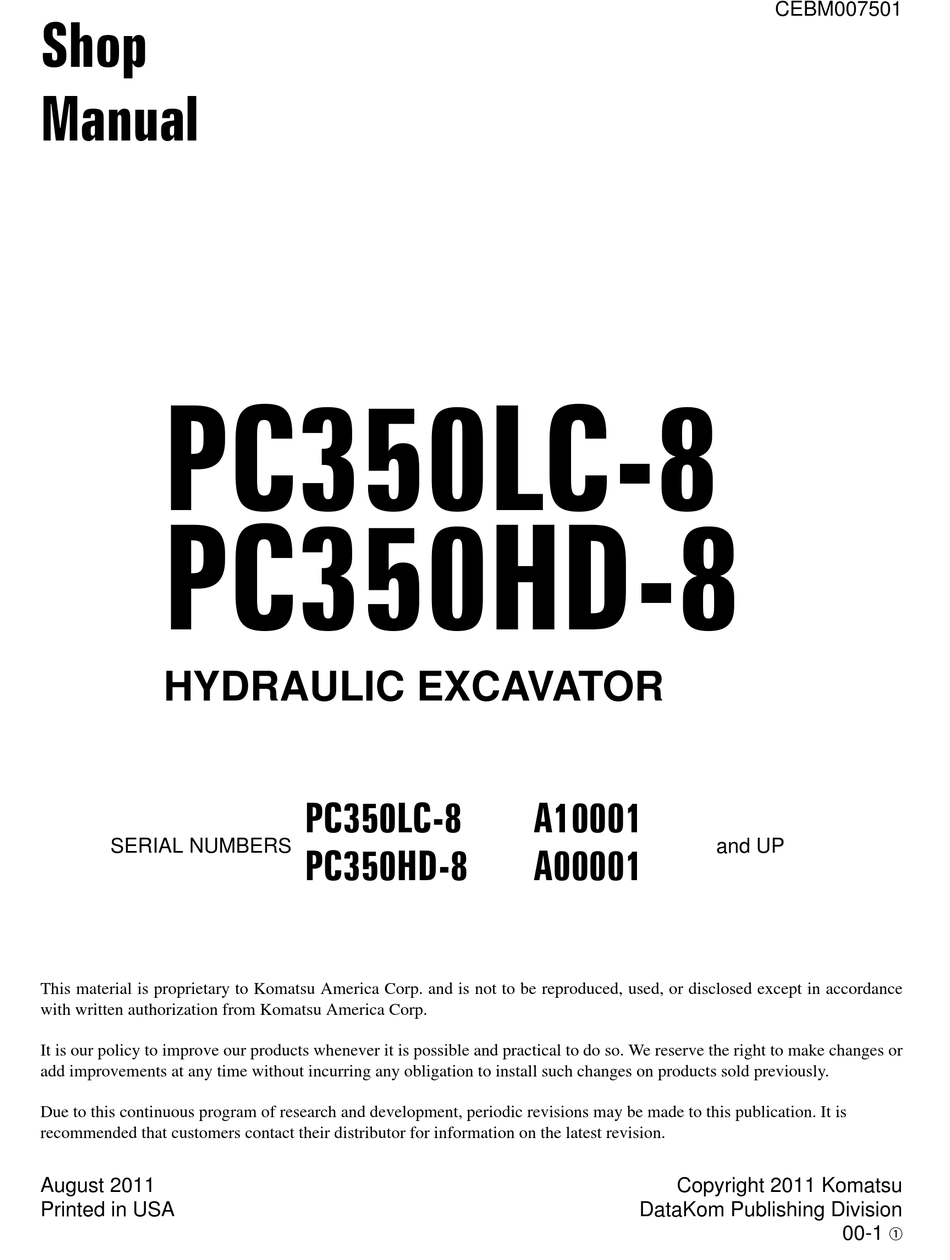

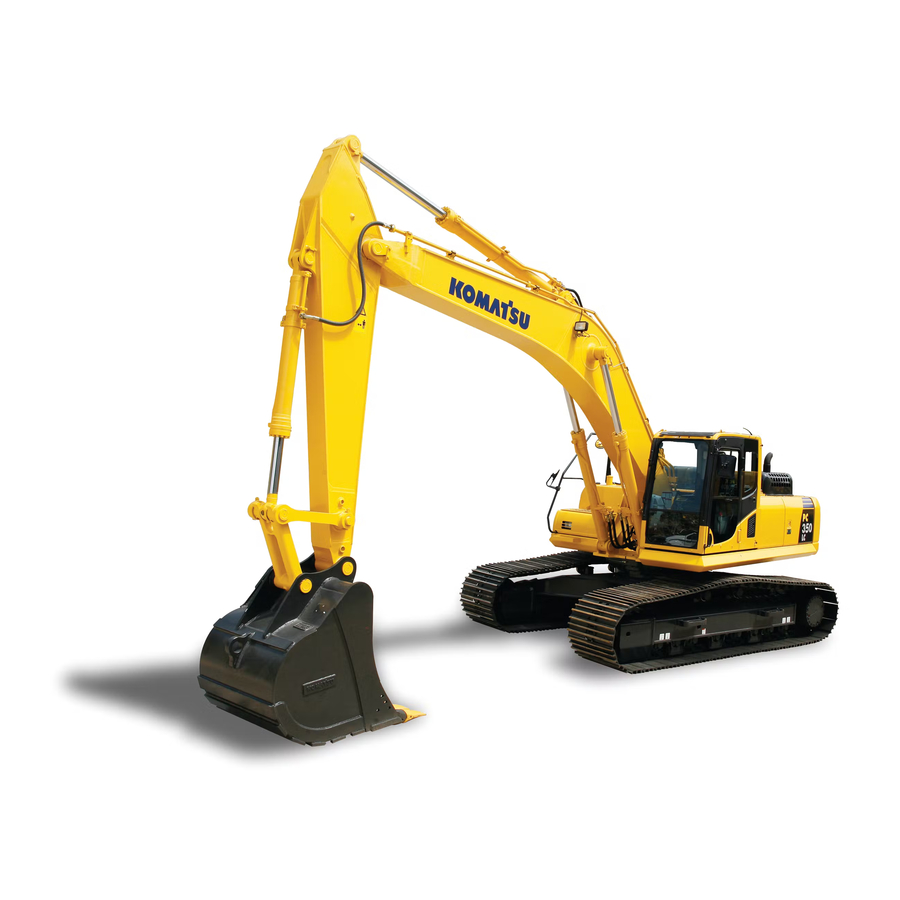

PC350LC-8
PC350HD-8
HYDRAULIC EXCAVATOR
SERIAL NUMBERS
This material is proprietary to Komatsu America Corp. and is not to be reproduced, used, or disclosed except in accordance
with written authorization from Komatsu America Corp.
It is our policy to improve our products whenever it is possible and practical to do so. We reserve the right to make changes or
add improvements at any time without incurring any obligation to install such changes on products sold previously.
Due to this continuous program of research and development, periodic revisions may be made to this publication. It is
recommended that customers contact their distributor for information on the latest revision.
August 2011
Printed in USA
PC350LC-8
PC350HD-8
PC350LC/HD-8
A10001
A00001
Copyright 2011 Komatsu
DataKom Publishing Division
CEBM007501
and UP
00-1
b

Advertisement

Table of Contents
loading

Related Manuals for Komatsu PC350LC-8

Summary of Contents for Komatsu PC350LC-8

  • Page 1 PC350HD-8 A00001 This material is proprietary to Komatsu America Corp. and is not to be reproduced, used, or disclosed except in accordance with written authorization from Komatsu America Corp. It is our policy to improve our products whenever it is possible and practical to do so. We reserve the right to make changes or add improvements at any time without incurring any obligation to install such changes on products sold previously.

  • Page 2: Table Of Contents

    FOREWORD CONTENTS CONTENTS GENERAL ............. 01-1 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD .
  • Page 3 FOREWORD The affected pages are indicated by using the following Mark Indication Action marks. It is requested that necessary actions be taken to ❍ New page to be added these pages according to the table below. ● Page to be replaced Replace Page to be deleted Discard...
  • Page 4 FOREWORD Mark Page Mark Page Mark Page Mark Page 10-73 10-106 10-139 10-172 10-74 10-107 10-140 10-173 10-75 10-108 10-141 10-174 10-76 10-109 10-142 10-175 10-77 10-110 10-143 10-176 10-78 10-111 10-144 10-177 10-79 10-112 10-145 10-178 10-80 10-113 10-146 10-179 10-81 10-114...
  • Page 5 FOREWORD Mark Page Mark Page Mark Page Mark Page ● ● 10-205 10-238 10-271 30-18 ● ● 10-206 10-239 10-272 30-19 ● ● 10-207 10-240 10-273 30-20 ● ● 10-208 10-241 10-274 30-21 ● 10-209 10-242 30-22 ● 10-210 10-243 20-1 30-23 ●...
  • Page 6 FOREWORD Mark Page Mark Page Mark Page Mark Page ● ● ● ● 30-51 30-84 30-117 40-9 ● ● ● ● 30-52 30-85 30-118 40-10 ● ● ● ● 30-53 30-86 30-119 40-11 ● ● ● ● 30-54 30-87 30-120 40-12 ●...
  • Page 7 FOREWORD Mark Page Mark Page Mark Page Mark Page ● ● ● ● 40-42 40-75 40-108 40-141 ● ● ● ● 40-43 40-76 40-109 40-142 ● ● ● ● 40-44 40-77 40-110 40-143 ● ● ● ● 40-45 40-78 40-111 40-144 ●...
  • Page 8 FOREWORD Mark Page Mark Page Mark Page Mark Page ● ● ● ● 40-174 40-207 40-240 40-273 ● ● ● ● 40-175 40-208 40-241 40-274 ● ● ● ● 40-176 40-209 40-242 40-275 ● ● ● ● 40-177 40-210 40-243 40-276 ●...
  • Page 9 FOREWORD Mark Page Mark Page Mark Page Mark Page ● ● ● ● 40-306 40-339 50-11 50-44 ● ● ● ● 40-307 40-340 50-12 50-45 ● ● ● ● 40-308 40-341 50-13 50-46 ● ● ● ● 40-309 40-342 50-14 50-47 ●...
  • Page 10 FOREWORD Mark Page Mark Page Mark Page Mark Page ● ● ● ❍ 50-77 50-110 50-143 50-176 ● ● ● 50-78 50-111 50-144 ● ● ● ❍ 50-79 50-112 50-145 60-1 ● ● ● ❍ 50-80 50-113 50-146 60-2 ● ●...
  • Page 11 FOREWORD Mark Page Mark Page Mark Page Mark Page ❍ ❍ 60-32 60-65 ❍ ❍ 60-33 60-66 ❍ ❍ 60-34 60-67 ❍ ❍ 60-35 60-68 ❍ ❍ 60-36 60-69 ❍ ❍ 60-37 60-70 ❍ ❍ 60-38 60-71 ❍ ❍ 60-39 60-72 ❍...
  • Page 12 FOREWORD Mark Page Mark Page Mark Page Mark Page 00-2-10 PC350LC/HD-8...
  • Page 13 FOREWORD SAFETY SAFETY Safety Notice IMPORTANT SAFETY NOTICE Proper service and repair is extremely important for the safe operation of your machine. The service and repair techniques recommended and described in this manual are both effective and safe methods of operation. Some of these operations require the use of tools specially designed for the purpose.
  • Page 14 FOREWORD SAFETY When disassembling or assembling, support the machine with blocks, jacks or stands before starting work. Remove all mud and oil from the steps or other places used to get on and off the machine. Always use the handrails, lad- ders or steps when getting on or off the machine.

  • Page 15: General

    FOREWORD GENERAL GENERAL This shop manual has been prepared as an aid to improve the quality of repairs by giving the serviceman an accurate understanding of the product and by showing him the correct way to perform repairs and make judgements. Make sure you understand the contents of this manual and use it to full effect at every opportunity.
  • Page 16 FOREWORD HOW TO READ THE SHOP MANUAL HOW TO READ THE SHOP MANUAL Volumes Revisions Shop manuals are issued as a guide to carrying out repairs. Revised pages are shown at the LIST OF REVISED PAGES They are divided as follows: between the title page and SAFETY page.
  • Page 17 FOREWORD HOISTING INSTRUCTIONS HOISTING INSTRUCTIONS Hoisting can result. Hooks have maximum strength at the middle portion. WARNING! Heavy parts (25 kg or more) must be lifted with a hoist etc. In the DISASSEMBLY AND ASSEMBLY section, every part weighing 25 kg or more is indicated clearly with the sym- bol.
  • Page 18 FOREWORD PUSH PULL COUPLER PUSH PULL COUPLER WARNING! Before carrying out the following work, release the residual pressure from the hydraulic tank. For details, see TESTING AND ADJUSTING, Releasing residual pres- sure from hydraulic tank. WARNING! Even if the residual pressure is released from the hydraulic tank, some hydraulic oil flows out when the hose is disconnected.
  • Page 19 FOREWORD PUSH PULL COUPLER Type 2 Disconnection Hold the mouthpiece of the tightening portion and push body (2) in straight until sliding prevention ring (1) contacts contact surface a of the hexagonal portion at the male end. Hold in the condition in Step 1, and turn the lever (4) to the right - clockwise.
  • Page 20 FOREWORD PUSH PULL COUPLER Type 3 Disconnection Hold the mouthpiece of the tightening portion and push the body (2) in straight until sliding prevention ring (1) contacts surface a of the hexagonal portion at the male end. Hold in the condition in Step 1, and push until the cover (3) contacts surface a of the hexagonal portion at the male end.
  • Page 21 FOREWORD COATING MATERIALS COATING MATERIALS ★ The recommended coating materials prescribed in the shop manuals are listed below. Category Code Part No. Quantity Container Main applications, features ● Used to prevent rubber gaskets, rubber LT-1A 790-129-9030 150 g Tube cushions and cork plugs from coming out ●...
  • Page 22 FOREWORD COATING MATERIALS Category Code Part No. Quantity Container Main applications, features ● Features: Resistance to water, oil ● Used as sealant for flange surface, thread. ● Also possible to use as sealant for flanges LG-4 790-129-9020 200 g Tube with large clearance.
  • Page 23 FOREWORD STANDARD TIGHTENING TORQUE STANDARD TIGHTENING TORQUE Standard Tightening Torque of Bolts And Nuts The following charts give the standard tightening torques of bolts and nuts. Exceptions are given in DISASSEMBLY AND ASSEMBLY. Thread diameter of bolt Width across flats N•m lbf ft 11.8 - 14.7...
  • Page 24 FOREWORD STANDARD TIGHTENING TORQUE Tightening Torque of Hose Nuts Use these torques for hose nuts. Thread diameter Width across flat Tightening torque Nominal No. N•m lbf ft 19.6 - 29.4 14.5 - 21.7 29.4 - 68.6 21.7 - 50.6 58.9 - 98.1 44.4 - 72.4 107.9 - 166.7 79.6 - 123.0...
  • Page 25 FOREWORD STANDARD TIGHTENING TORQUE Table of Tightening Torques for O-ring Boss Piping Joints ★ Unless there are special instructions, tighten the O-ring boss piping joints to the torque below. Thread diameter Width across flat Tightening torque (N•m {lbf ft}) Norminal No. Range Target 35 - 63 {25.81 - 46.46}...
  • Page 26 FOREWORD ELECTRIC WIRE CODE ELECTRIC WIRE CODE In the wiring diagrams, various colors and symbols are employed to indicate the thickness of wires. This wire code table will help you understand WIRING DIAGRAMS. Example: 05WB indicates a cable having a nominal number 05 and white coating with black stripe. Classification by Thickness Copper wire Nominal num-...
  • Page 27 FOREWORD CONVERSION TABLES CONVERSION TABLES Method of Using the Conversion Table The Conversion Table in this section is provided to enable simple conversion of figures. For details of the method of using the Conversion Table, see the example given below. EXAMPLE ●...
  • Page 28 FOREWORD CONVERSION TABLES Millimeters to Inches 1 mm = 0.03937 in 0.039 0.079 0.118 0.157 0.197 0.236 0.276 0.315 0.354 0.394 0.433 0.472 0.512 0.551 0.591 0.630 0.669 0.709 0.748 0.787 0.827 0.866 0.906 0.945 0.984 1.024 1.063 1.102 1.142 1.181 1.220 1.260...
  • Page 29 FOREWORD CONVERSION TABLES Liter to U.S. Gallon 1 L = 0.2642 U.S. Gal 0.264 0.528 0.793 1.057 1.321 1.585 1.849 2.113 2.378 2.642 2.906 3.170 3.434 3.698 3.963 4.227 4.491 4.755 5.019 5.283 5.548 5.812 6.076 6.340 6.604 6.869 7.133 7.397 7.661 7.925...
  • Page 30 FOREWORD CONVERSION TABLES kgm to ft. lb. 1 kgm = 7.233 ft. lb. 14.5 21.7 28.9 36.2 43.4 50.6 57.9 65.1 72.3 79.6 86.8 94.0 101.3 108.5 115.7 123.0 130.2 137.4 144.7 151.9 159.1 166.4 173.6 180.8 188.1 195.3 202.5 209.8 217.0 224.2...
  • Page 31 FOREWORD CONVERSION TABLES kg/cm to lb/in 1 kg/cm = 14.2233lb/in 14.2 28.4 42.7 56.9 71.1 85.3 99.6 113.8 128.0 142.2 156.5 170.7 184.9 199.1 213.4 227.6 241.8 256.0 270.2 284.5 298.7 312.9 327.1 341.4 355.6 369.8 384.0 398.3 412.5 426.7 440.9 455.1 469.4...
  • Page 32 FOREWORD CONVERSION TABLES Temperature Fahrenheit Centigrade Conversion; a simple way to convert a Fahrenheit temperature reading into a Centigrade temperature reading or vise versa is to enter the accompanying table in the center or boldface column of figures. These figures refer to the temperature in either Fahrenheit or Centigrade degrees.
  • Page 33 GENERAL SPECIFICATION DIMENSION DRAWINGS ........... 01-2 Dimensions .

  • Page 34: General

    Operating weight 32,930 (72,600) 36,836 (81,210) (lb) Bucket capacity 1.4 (1.8) (cu.yd) Name of engine KOMATSU SAA6D114E-3 diesel engine Engine horsepower kW (HP) /rpm 184 (247) /1,900 A Overall length mm (ft in) 11,140 (36' 7“) 11,140 (36’7”) B Overall height mm (ft in) 3,285 (10' 9“)

  • Page 35: Working Ranges

    GENERAL SPECIFICATION DIMENSION DRAWINGS Working Ranges Working ranges Unit PC350LC-8 PC350HD-8 Max. digging reach mm (ft in) 11,100 (36' 5“) 11,100 (36’4”) Max. digging depth mm (ft in) 7,380 (24' 3“) 7,277 (24’0”) Max. digging height mm (ft in) 10,100 (33' 2“) 10,313 (34’0”)

  • Page 36: Specifications

    GENERAL SPECIFICATIONS SPECIFICATIONS Machine model PC350LC-8 PC350HD-8 Serial Number A10001 and up A00001 and up Bucket capacity m³ Operating weight 32,930 36,836 Max. digging depth 7,380 7,277 6,377 Max. vertical wall depth 6,480 Max. digging reach 11,100 11,100 Max. reach at ground level...
  • Page 37 GENERAL SPECIFICATIONS Machine model PC350LC-8 PC350HD-8 Serial Number A10001 and up A00001 and up Model SAA6D114E-3 Type 4-cycle, water-cooled, in-line, vertical, direct injection, with turbocharger and aftercooler No. of cylinders - bore x stroke 6 - 114 x 135 Piston displacement L {cc} 8.27 {8,270}...
  • Page 38 GENERAL SPECIFICATIONS *1: Cushion is provided on head side *2: Cushion is provided on bottom side 01-6 PC350LC/HD-8...

  • Page 39: Weight Table

    GENERAL WEIGHT TABLE WEIGHT TABLE WARNING! This weight table is for use when handling components or when transporting the machine. Unit: kg Machine model PC350LC-8 PC350HD-8 Serial Number A10001 and UP A00001 and UP Engine assembly 1,148 1,148 • Engine •...
  • Page 40 GENERAL WEIGHT TABLE Unit: kg Machine model PC350LC-8 PC350HD-8 Serial Number A10001 and UP A00001 and UP Track shoe assembly • Standard triple grouser shoe (600 mm) 3,700 4,760 • Standard triple grouser shoe (700 mm) 4,300 5,210 • Wide triple grouser shoe (800 mm)

  • Page 41: Fuel, Coolant, And Lubricants

    ASTM: American Society of Testing and Material Final drive case Swing Engine oil Damper Hydraulic Cooling (each) machinery Fuel tank case system system case PC350LC-8 PC350HD-8 liter 16.5 10.5 Specified capacity US gal 10.57 4.36 2.38 2.77 0.34 96.43 8.45 159.84...
  • Page 42 Komatsu machines are supplied with Komatsu Supercoolant AF-NAC. Komatsu Supercoolant AF-NAC has excellent anticorrosion, antifreeze and cooling properties and can be used continuously for 2 years or 4000 hours. Komatsu Supercoolant AF-NAC is strongly recommended wherever available and required if machine is not equipped with a corrosion resistor.
  • Page 43 PC350LC-8 ........
  • Page 44 Travel Motor - Type: HMV160ADT-2 - PC350LC-8 ....... . .
  • Page 45 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD TABLE OF CONTENTS System Diagram ..............10-216 Engine and Pump Control .
  • Page 46 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD ENGINE AND COOLING SYSTEM ENGINE AND COOLING SYSTEM Engine Related Parts Drive plate Damper assembly Outline Torsion spring Muffler A wet type damper assembly is used. Oil capacity: 1.3 l (0.343 US gal) Stopper pin Rear engine mount Friction plate Front engine mount...
  • Page 47 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD ENGINE AND COOLING SYSTEM Radiator, Oil Cooler and Aftercooler Reservoir tank Oil cooler Radiator inlet hose Radiator Guard Radiator outlet hose Radiator cap Aftercooler Shroud Specifications Radiator: ..... . .Aluminum wave type, 4th row Oil cooler: .
  • Page 48 Hydraulic pump (HPV125+125) Center swivel joint Travel speed solenoid valve Control valve Swing brake solenoid valve Final drive 10. Swing machinery Travel motor • HMV160ADT-2 (PC350LC-8) 11. Swing motor (HMF230ABE-5) • KMV200ADT (PC350HD-8) Engine (SAA6D114E) 12. Swing circle 10-6 PC350LC/HD-8...
  • Page 49 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD POWER TRAIN MEMORANDUM PC350LC/HD-8 10-7...
  • Page 50 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD POWER TRAIN Final Drive PC350LC-8 1. Level plug 6. No. 1 planetary carrier 11. Sprocket 2. Drain plug 7. No. 2 planetary carrier 12. Floating seal 3. No. 1 planetary gear (No. of teeth: 42) 8.
