Apex V1 Foil Quick set up guide
By assembling and/or using this ozone product, you agree that you have read and
understood the entire ozone product owners manual, including all instructions and
warnings contained in that manual, prior to using the ozone product in any way.
iMportAnt notes:
• Before assembling check all connecting surfaces, screws and
barrel nuts are clean and free of sand, salt or other debris.
• Do not tighten screws until all screws are in position and
correctly threaded.
• Do not over tighten the screws, firmly hand tighten (approx.
8N.m torque wrench setting) and release screws by hand only.
Do not use power tools.
• The Fuselage barrel nuts are glued in place. These have a T25
head so the supplied T30 tool cannot be used to mistakenly
tighten or loosen. Do not tighten or loosen the Fuselage barrel
nuts, only tighten or loosen the screw. If a Fuselage barrel nut
becomes loose, use standard super glue to fix it back into place.
front wing
2x M6 T25 Titanium Barrel Nuts
(Fixed inside the Fuselage)
2x M6 T30 Titanium Barrel
Nuts (Fixed inside the Mast)
2x M6 T30 28mm Titanium Screws
• The Mast barrel nuts are glued in place. These have a T30 head
so the supplied T30 tool can be used to rotate the nuts to align
with the screws if necessary. If a Mast barrel nut becomes loose,
use standard super glue to fix it back into place.
• The Fuselage to Mast connection is designed to be a tight fit.
Align the screws, get them started and proceed to tighten.
Approximately the last 2mm of Mast tuttle section will be
pulled into the Fuselage by tightening the screws. The
connection will then become flush.
• If stored set up, before each use check the screws and parts are
fitting tight, retighten screws if necessary.

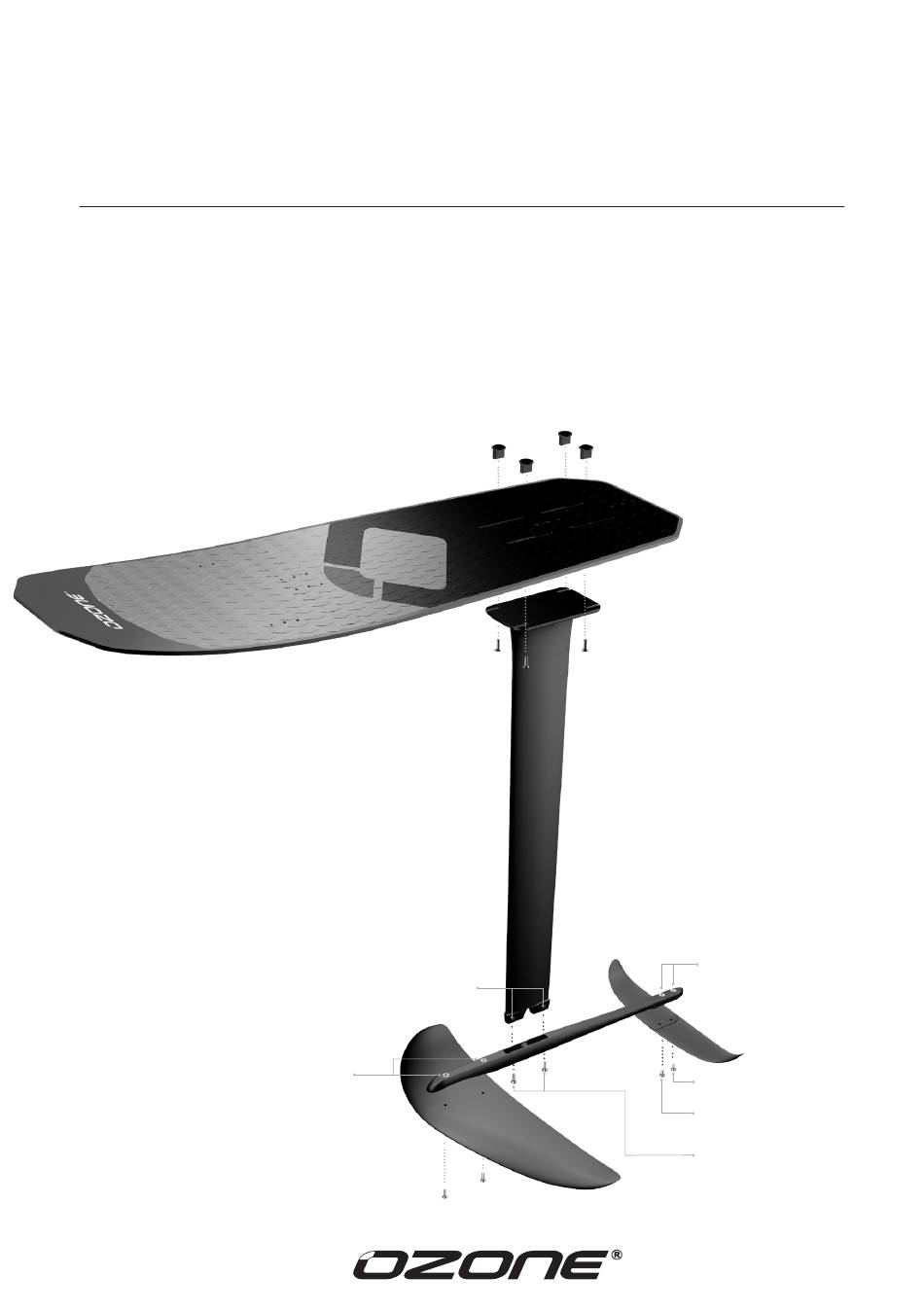

4x Titanium T-Nut Deck Washers
(Supplied with Apex V1 board)
MAst
4x M6 T30 22mm Titanium Screws
fuselAge
reAr wing
2x M6 T25 Titanium Barrel Nuts
(Fixed inside the Fuselage)
1x M6 T30 16mm Titanium Screw
(Trailing Edge)
1x M6 T30 22mm Titanium Screw
(Leading Edge)
2x M6 T30 22mm Titanium Screws
Advertisement
Table of Contents
Related Manuals for Ozone Apex V1
Summary of Contents for Ozone Apex V1
- Page 1 Apex V1 Foil Quick set up guide By assembling and/or using this ozone product, you agree that you have read and understood the entire ozone product owners manual, including all instructions and warnings contained in that manual, prior to using the ozone product in any way.
- Page 2 MAst to BoArd ApeX V1 BoArd using titAniuM t-nut deck wAshers: 1: Fit the 4x T-Nut Deck Washers into the board slots. 2: Fit the 4x M6 T30 22mm screws into the T-Nut Deck Washers. Turn each screw one full rotation to get the thread started.
