- Page 1 Pilots Manual...
-
Page 3: Table Of Contents
CONTENTS THANK YOU hank you for choosing to fly Ozone. As a team of free flying enthusiasts, competitors and adventurers, Ozone’s mission is to build agile paragliders of the highest quality with cutting edge designs, performance and maximum Thank You Incidents Warning Deflations security. Team Ozone Cravats Your Mojo PWR Parachutal stall Confidence and belief in your paraglider is a far greater asset than any small gains in performance - ask any of Rucksack Caring For Your wing the Ozone pilots on your local hills, or those who have taken our gliders on ground-breaking adventures or stood Brake lines Packing Risers Caring Tips on podiums around the world. All our research and development is concentrated on creating the best handling/ Total weight in flight Storage and transport performance characteristics possible with optimum security. Our development team is based in the south of France. Towing Cleaning This area - which includes the sites of Gourdon, Monaco and Col de Bleyne - guarantees us more than 300 flyable days Limitations Repairs per year, this is a great asset in the development of the Ozone range. Preparation... -
Page 4: Warning
WARNING TEAM OZONE Everyone at Ozone continues to be driven by our passion for flying, our love of adventure and our quest • Paragliding/Paramotoring is a potentially dangerous sport that can cause serious injury including bodily harm, paralysis and death. to see Ozone’s paraglider development create better, safer and more versatile paragliders. • Flying an Ozone paraglider is undertaken with the full knowledge that paramotoring involves risks. The design team consists of David Dagault, Luc Armant, Fred Pieri, Russell Ogden, and Honorin • As the owner of an Ozone paraglider you take exclusive responsibility for all risks associated with its Hamard. use. Inappropriate use and or abuse of your equipment will increase these risks. • Ozone paragliders are only suitable for qualified pilots or those under instruction. This manual does not Dav has a wealth of experience in competition flying, XC, XAlps and paraglider design. Luc, a dedicated replace proper instruction. Make sure you seek professional tuition and learn with a reputable school. XC and competition addict has a background in naval architecture. Fred, our resident geek is a mathematian, mechanical engineer and vol Biv specialist. Russ is a competition pilot and test pilot with • Use only certified paragliders, harnesses with protector and reserve parachutes that are free from 1000s of hours testing experience. Honorin has been flying suince he was 13, he is a naturally talented modification, and use them only within their certified weight ranges. Please remember that flying a pilot that has already become world champion. Between them, they bring a wealth of knowledge, ideas glider outside its certified configuration may jeopardise any insurance (e.g. liability, life etc) you have. and experience and work closely together in the design and testing process. • All pilots should have the appropriate level of license for their respective country and third party insurance. Former female World champion, Emilia Plak manages the paramotor department. She is helped by • Make sure that you are physically and mentally healthy before flying. Mathieu Rouanet and Alex Mateos, two of the finest pilots in the world holding World, European and French Paramotoring champion titles amongst them. They both offer valuable advice and feedback • Choose the correct wing, harness and conditions for your level of experience. throughout the development process, helping to produce the perfect blend of safety, speed and • Pay special attention to the terrain you will be flying and the weather conditions before you launch. If performance. you are unsure do not fly, and always add a large safety margin to all your decisions. • Avoid flying your glider in rain, snow, strong wind, and turbulent weather conditions or clouds. Back in the office Mike Cavanagh generally keeps control of the mayhem. Promotion and Team pilots • Any liability claims resulting from use of this product towards the manufacturer, distributor or dealers are organised by Matt Gerdes. Karine Marconi, Chloe Vila and Isabelle Martinez make sure we don’t is excluded. spend too much money and look after the ordering system. -
Page 5: Your Mojo Pwr

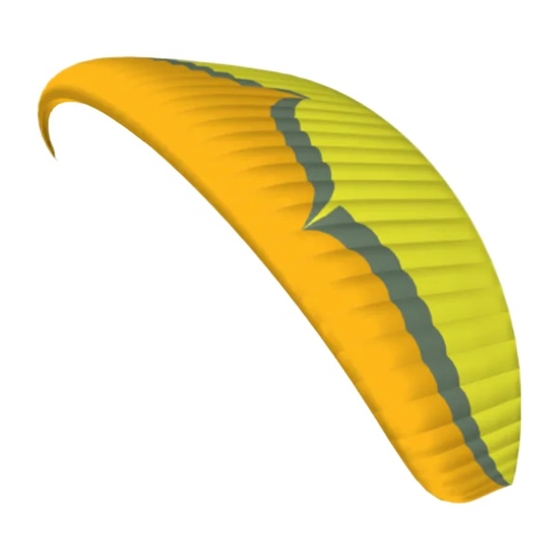

YOUR MOJO PWR Rucksack Based on the Mojo 5, the Mojo PWR is a versatile wing for both free flying and powered flight. Certified Your wing is supplied with a specially designed bag that is light in weight and comfortable. It features EN A, it is suitable for students in training but ideal for the newly qualified. It is reliable and dependable, suitable for the first 100s hours of paramotoring and paragliding. Due to the specially designed power a padded hip belt, adjustable ergonomic shoulder straps and extra pockets to store keys, accessories and all those extra bits. Its large volume allows you to store all of your equipment whilst distributing the risers the Mojo PWR is suitable for all types of power units and hang point types including trikes. These risers also feature trimmers for fast cruising, double pulleys for adjusting brake line lengths and magnetic weight for comfortable hiking. brake connectors. Brake Lines The brake line lengths have been set carefully during testing. We feel it is better to have slightly long The Mojo PWR is aerodynamically very clean, the reduced sail drag, optimised line layout, reduced IMPORTANT brake lines and to fly with a wrap (one turn of line around the hand). However, if you do choose to adjust line consumption and newly-shaped cell openings all push the Mojo PWR’s performance to the top of In the unlikely the category without compromising safety. Special attention has been made to the ground handling their length please keep in mind the following: event of a brake line and inflation characteristics of the wing to make the whole process easier, less stressful and ultimately snapping in flight, or • Ensure both main brake lines are of equal length. safer. Setting up is easy; the risers are simple and clean the wing inflates smoothly - without overshoot- a handle becoming ing or hanging back - even in zero wind conditions. In stronger winds it inflates progressively with less • If a brake handle has been removed, check that its line is routed through the pulley when it is replaced. -
Page 6: Total Weight In Flight
To increase cruise speed you can use the speed system or release the trimmers. the wing more standard or slowest The Mojo PWR has been designed as a solo intermediate PPG/free flight XC wing and is not intended prone to collapse, position. Releasing the for tandem flights or aerobatic manoeuvres. A specific standard of certification for aerobatic flying has In turbulent air the profile is very stable. It will resist reasonable levels of turbulence with a high resis- therefore using the trimmers invalidates not been set up yet, Ozone wings although designed to the highest specifications are not certified for tance to collapse without pilot input. However in strong turbulence Ozone recommends to return the accelerator near the any flight certification. this type of flying. Aerobatic manoeuvres such as wingovers are very difficult and complex to perform trimmers to the standard position (pulled down) and fly the glider actively. This way, you will be in the ground or in turbulent For un-powered flight correctly and put abnormal stresses on the glider and can lead to loss of control. best position to react correctly should an incident occur. -
Page 7: Preparation
PREPARATION Accelerator System Wing To set up an accelerator on the ground, ask a friend to pull your risers into their in-flight position while To prepare the wing, lay it out on the top surface and perform a thorough daily check. You should you sit in your harness. Now adjust the length of the line so that the main bar sits just beneath your seat. inspect the top and bottom surfaces for any rips and tears or any other obvious signs of damage. Lay You should now be able to hook your heel in to the secondary (lower) loop of the accelerator. out the lines one side at a time, hold up the risers and starting with the brake lines, pull all lines clear. Repeat with the stabilo, D (uppers), C, B and A lines, laying the checked lines on top of the previous The accelerator must be slack enough to ensure that the front risers are not pulled down in normal flight, set, and making sure no lines are tangled, knotted or snagged. Mirror the process on the other side and but not so long that it is impossible to use the full range of the speed system. then inspect the lines for any visual damage. Then inspect the risers for any signs of obvious damage. The general rule is if it looks OK then it is OK, however if you have any doubts please get advice from Once set up, test the full range of the speed system in calm flying conditions: ensure that both risers are experienced pilots or your local dealer or instructor. pulled evenly during operation. Fine-tuning can be completed when you are back on the ground. To familiarise yourself with the glider it is a good idea to perform practice inflations and small flights on a IMPORTANT: Using the accelerator decreases the angle of attack and can make the training hill. This will enable you to set up your equipment correctly. gliders recovery from a collapse more aggressive, therefore using the accelerator near the ground or in turbulence should be avoided. -
Page 8: Basic Flight Techniques
BASIC FLIGHT TECHNIQUES Launching Reverse Launch -Light to Strong Winds Lay out your Mojo PWR as you would for the forward launch. However, this time face the wing, and Your Mojo PWR will launch with either the forward or reverse launch techniques. attach the risers in the correct manor (half a turn in each riser, and crossed in the direction you want to When taking off under power, make sure there is enough clear space upwind of you to launch and climb turn). Now you can pull up the Mojo PWR by its A-risers. Once the wing is overhead, brake it gently, turn and launch. out safely, avoiding trees, power lines and any other obstacles that may affect you should you have a power failure. Always fly with a safety margin so that power failures do not leave you compromised. You In stronger winds, be prepared to take a few steps towards the glider as it inflates. This will take some should always be able to glide power off to a suitable landing place. of the energy out of the glider and it will be less likely to over-fly you. Once stable and above your head apply progressive power and accelerate smoothly for a controlled take off. Whilst inflating your wing, you should hold both of the A risers on each side. Once clipped in, and you IMPORTANT have gone through the take-off check list (above), stand central to the wing to ensure an even and Never take off with Practice ground handling and launching as much as possible! It is great fun, and will give you a much progressive inflation. Run in an upright position so that the motor is generating forward thrust, do not a glider that is not lean too far forward otherwise the power of the motor will attempt to push you into the ground! When better feel for your Mojo PWR’s flight characteristics. It will also improve your overall enjoyment of flying fully inflated or if you by making your launches easier and safer. -
Page 9: Turning
Landing to collapse. By pulling the trimmers to the standard position and applying the brakes approximately 30cm, the Mojo The Mojo PWR shows no unusual landing characteristics. We recommend the trimmers be returned to PWR will achieve its best minimum-sink rate; this is the speed to use for thermalling and ridge soaring the normal slow position for landings. You can land un-powered or powered, here are some tips: whilst free flying. • Always set up your landing early, give yourself plenty of options and a safe margin for error and Active Flying make sure you are heading INTO wind. In turbulent air the profile is stable. It will resist reasonable levels of turbulence without pilot input. However • Once below 30 metres avoid turning tightly as the glider will have to dive to accelerate back to IMPORTANT in stronger turbulence Ozone recommends to return the trimmers to the standard position and fly the normal flight. Always keep hold of glider actively. This way, you will be in the best position to react correctly should an incident occur. • Allow the glider to fly with speed for your final descent until you are around 1 metre above the your brakes. Do not fly ground. Apply the brakes slowly and progressively to slow the glider down until the glider stalls and in turbulent conditions The key elements of effective active flying are pitch control and pressure control:... -
Page 10: Big Ears
Ears in accelerated flight, this can lead Once the big ears are engaged you can further increase the sink rate by pushing on the accelerator bar, to a major deflation. however NEVER try to pull the Big Ears in if the accelerator is already pushed. The lower angle of attack and the act of deflating the tips can lead to a major deflation. Always make the Big Ears first and then Always pull the Big Ears first and then apply the speed bar. apply the speed bar. Whilst it is possible to enter a spiral dive whilst holding in Big Ears, the high forces applied to the lower lines could exceed the breaking strain of the lines leading to equipment failure! Ozone strongly recommend to NOT perform Spiral Dives with Big Ears engaged. -
Page 11: B Line Stall
B-Line Stall DO NOT perform spiral The Mojo PWR shows little tendency to remain stable in a spiral dive; however some parameters could dives with Big Ears B-stall is for fast descents in emergency situations only. It is faster and safer to lose altitude with a spiral interfere with its behaviour. These might include: tight chest strap settings, total weight in flight outside IMPORTANT engaged. dive than a B-stall. of the certified weight range, high hang point harnesses or power units or being in a very deep spiral at The pitching movement a very high sink rate >14m/s. You should always be prepared to pilot the wing out of such a spiral dive. on exiting the B stall is To initiate the B-stall, keep the brakes in your hand and take hold of both the B risers, or place your To do so, smoothly use opposite weight shift and apply enough outside brake to stop the wing from small but necessary. fingers between the lines above the maillons. As you pull the B-lines down the airflow over the wing is spiralling, the glider will then start to resume normal flight. Never attempt to recover from a spiral with We recommend you do broken and the glider loses its forward speed but remains open with a reduced cord. You can descend hard or quick opposite inputs as this will result in an aggressive climb and surge. not brake the glider at around 6 m/s. -
Page 12: Incidents
Only a few cms of deflation. The glider often looks as though it has recovered properly but carries on descending vertically and fast will not reinflate the wing and pumping too slow might take the glider close to, or beyond, the input from your stall point. without full forward motion. This situation is called ‘deep stall’ or ‘parachutal stall’. brakes can maintain your wing in the stall. IMPORTANT Symmetrical collapses reinflate without pilot input, however 15 to 20cm of brake applied symmetrically It is unlikely to happen on any Ozone glider, but should it do so your first reaction should be to fully Always release your A bad preparation will speed the process. After a symmetric collapse always consider your airspeed. Make sure the glider raise both hands. This normally allows the glider to return to normal flight but If nothing happens after a wraps if you have on launch, aerobatic few seconds, reach up and push the A-risers forwards or apply the speed bar to encourage the wing to is not in parachutal stall before making any further inputs. taken them! flying, flying a wing of regain normal flight. Ensure the glider has returned to normal flight (check your airspeed) before you use... -
Page 13: Packing
CARE AND MAINTENANCE Step 4. Group together the middle/trailing edge of the wing by sorting the folds near the B, C and D tabs. Packing To prolong the life of your wing and to keep the plastic reinforcements in the best possible condition it is very important to pack the wing If using a Saucisse pack go to Step 8. carefully. Ozone recommends to use the concertina packing method exactly as shown so that all of the cells rest alongside each other and the plastic reinforcements are not unnecessarily bent. Using an Ozone Saucisse or Saucisse light pack will help preserve the life of the wing and aid with the speed and ease of packing. Step 5. Once the LE and rear of the wing have Step 1. Lay mushroomed wing been sorted, turn the whole wing on its side. on the ground. It is best to start from the mushroomed position as this reduces the dragging of the leading edge across the ground. Step 2. Group LE reinforcements with the A tabs aligned, make sure the plastic reinforcements Step 6. Fold the wing with 3 or 4 folds whilst being lay side by side. careful to not crush the LE. -
Page 14: Caring Tips
IMPORTANT: Do not fold the glider in the centre, you professionally serviced and importantly modify your groundhandling technique to stop any further will bend the plastics, instead pack the wing with a full damage. concertina method from tip to tip before packing into the • Your Ozone wing has an opening closed using velcro on the trailing edge of the tip called the ‘Butt stuff sac. hole’. This has been designed to easily empty all the things which have been accumulating in your wing (sand, leaves, rocks, mobile phones etc). -
Page 15: Storage And Transport
It is recommended that you regularly CHECK your wing, especially after a heavy period of use, after an You can find more information about repairing your wing on the Ozone website, including step by step incident or after a long period of storage. instructions with pictures. Storage and Transport If you damage a line: Any line that is visually damaged MUST be replaced. Use a reputable paragliding service centre to make Always store all your flying equipment in a dry room, protected from direct heat. Your wing should be IMPORTANT the replacement lines. Alternatively you can order them from your local Ozone dealer or directly from our dry before being packed away. Moisture, heat and humidity are the worst elements for damaging your Never pack away or website http://www.flyozone.com/paragliders/en/shop/lines.php store your glider wet. glider. Storing a damp glider in your car under the sun would be terrible for example. It is important that replacement lines are made from the correct materials and diameters. You should If you land in salt water, you must first rinse it thoroughly with clean fresh water. Dry the wing check lengths against their counterpart on the other side of the wing to make ensure symmetry. Once completely, preferably out of the sun, in the wind. Never use a hair dryer, etc. the line has been replaced, inflate and check the glider before flying. Take care that no insects get packed away with the wing. They may eat the cloth and make holes in a Maintenance Checks bid to escape. They can also leave acidic deposits if they die and decompose. Your wing, like a car, should be technically checked to ensure proper airworthiness. Your wing should be checked by a qualified professional for the first time after 24 months, or after 100 hours. However, IMPORTANT Transport the wing in the supplied bags and keep away from oils, paints, chemicals, detergents etc. -
Page 16: Modifications
OZONE QUALITY GUARANTEE IMPORTANT The tearing resistance of the cloth - A non-destructive test following the TS-108 standard which At Ozone we take the quality of our products very seriously, all our gliders are made to the highest Take care of your specifies minimum tear strength for sky diving canopies should be made using a Bettsometer. (B.M.A.A. standards in our own manufacturing facility. Every glider manufactured goes through a stringent series glider and make sure of quality control procedures and all the components used to build your glider are traceable. We always Approved Patent No. GB 2270768 Clive Betts Sails) you have it checked welcome customer feedback and are committed to customer service. Ozone guarantees all of its and serviced according products against manufacturer’s defects or faults. Ozone will repair or replace any defective product Strength of the lines - An upper, middle and lower A line, along with a lower B and a lower C (and to the schedule. free of charge. Ozone and its distributors provide the highest quality service and repair, any damage to lower D if applicable) line should be tested for strength. Each line is tested to breaking point and the products due to wear and tear will be repaired at a reasonable charge. value recorded. The minimum value is 8 G for all lower A+B lines and 6 G for all lower remaining lines, calculated from the maximum certified flying weight of the glider. The added minimum strength for If you are unable to contact your dealer then you can contact us directly at info@flyozone.com. the middle lines and for the top lines should be the same. If the breaking strength is too close to the minimum value calculated, the professional should give a period after which you will have to test the Summary strength of the lines again. -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL DRAWINGS Trailing Lower Surface Edge Leading Upper Surface Edge Riser Riser No. of Cells Riser Brake Projected Area (m2) 18.7 20.3 22.1 26.1 Baby A Line Riser Flat Area (m2) 23.9 28.3 30.7 (Big Ears) Upper Projected Span (m) 8.05 8.39 8.75... -
Page 18: Line Diagram
Mojo 5 Rigging diagram LINE DIAGRAM MATERIALS Individual and linked line lengths can be found online. A Riser B Riser All Ozone gliders are made from the highest quality materials available. Cloth Upper Surface Dominico DOKDO 30D MF Lower Surface Dominico DOKDO 30D MF Internal Ribs Dominico DOKDO 30D FM Leading Edge Reinforcement P18 plastic pipe MainLine Set Brake Lines Riser Lines Main brake Lines Edelrid 6843 - 160/200kg Liros - 10-200-040 B2 B3... - Page 19 1258 Route de Grasse Le Bar sur Loup 06620 France...
